Locator de trasee cabluri si conducte subterane Seba vLoc-9800

Cod: Seba-KMT vLoc-9800




Brosura produs PDF, 0.48 Mb

Descriere

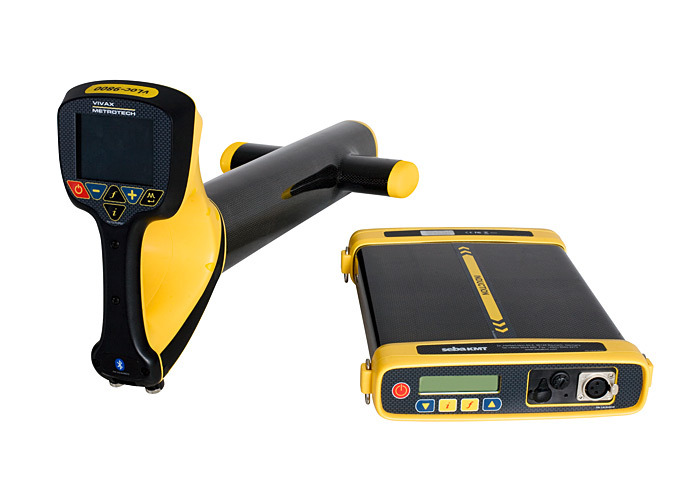

vLoc-9800

The vLoc-9800 is a new entry in the vLoc product line, building upon the Metrotech tradition of performance and convenience. In many sectors, underground cables are located using a method developed by Metrotech 30 years ago: the Distance Sensitive Left/Right GuidanceTM. Most manufacturers offer left/right guidance via a peak/zero antenna set.

The vLoc-9800 has two horizontal guidance antennae, positioned at a certain distance from each other. This enables a precise distinguishing of left from right. The guidance antennae and the extremely high sensitivity ensure a clear and fast response for easier and precise location.

Key benefits:

  • Clearly laid out user interface
  • Automatic or manual amplification options
  • Depth and amperage at the press of a button
  • Distance Sensitive Left/Right GuidanceTM
  • Sheath fault location (optional)





Accesorii standard





Optiuni recomandate
