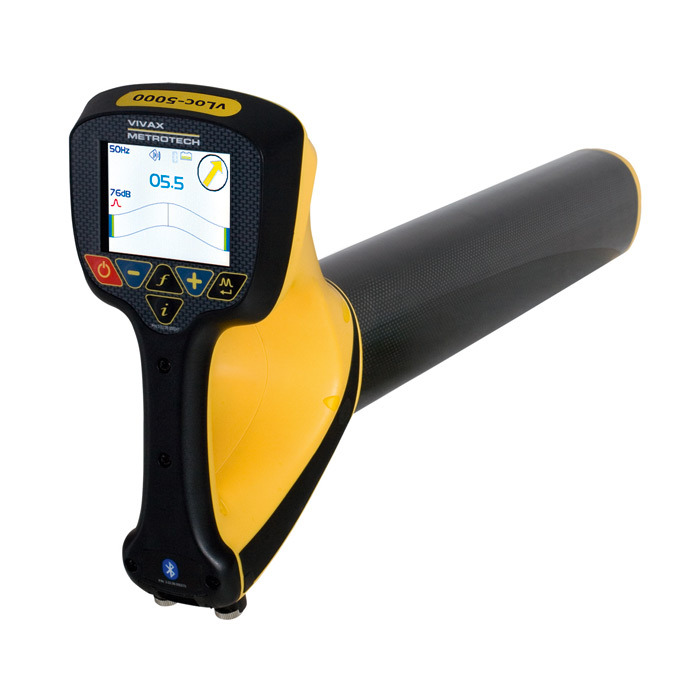

The new vLoc-5000 from SebaKMT is the most state-of-the-art line location system on the market. It includes several functions that facilitate your daily location work and makes the results more reliable and informative.

The centrepiece of the vLoc-5000 line location system is the multi-frequency receiver. The main task of the receiver of a line location system is to give precise information on the position of the target conductor, in particular the location and the depth. However, problems occur repeatedly during the line location process, e.g. field distortions caused by discharge or the coupling of neighbouring lines.

Special features:

Precise direction guidance with right/left arrows and guidance compass
SiS ("Signal Select") and SD ("Signal Direction") for reliable line identification
"Distortion Alert" for signal evaluation
Internal GPS receiver and data storage
Permanent depth or signal current intensity measurement
