Analizor de putere si precizie 1-3/4-6 DC..2MHz faze N4L PPA2600

Cod: N4L PPA2500



Brosura produs PDF, 0.79 Mb


Descriere

  • 0.04% basic accuracy
  • Frequency range dc and 10mHz to 2MHz
  • High precision internal shunts
  • 1000Vrms - 3000Vpk direct voltage input
  • Up to 50Arms - 1000Apk direct current input
  • 5 millidegree basic phase accuracy
  • 1, 2 or 3 phase versions, Master - slave configuration for 6 phase operation
  • High speed sampling on all channels
  • Easy to use - Single button access to all measurement modes
  • True no-gap measurement

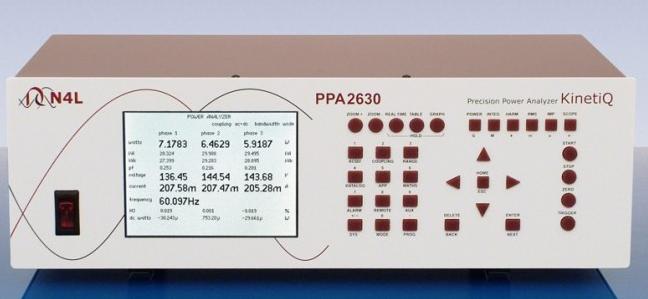

  • Real time Digital, Tabular, Graphic and Oscilloscope displays
  • Real time datalog and integration

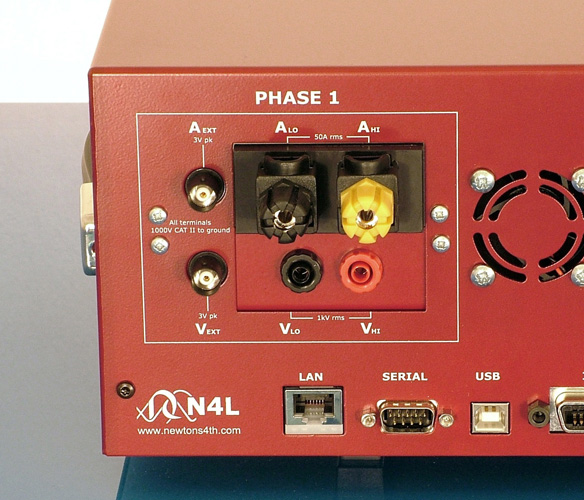

  • Simple BNC connection of N4L shunts for high current applications

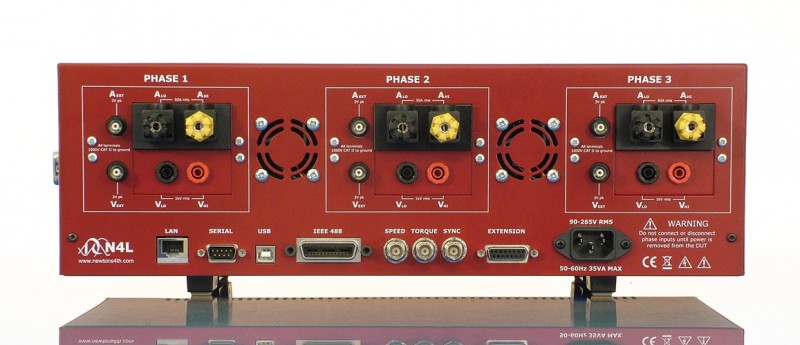

  • RS232, IEEE488, USB, LAN, Torque, Speed and Extension ports

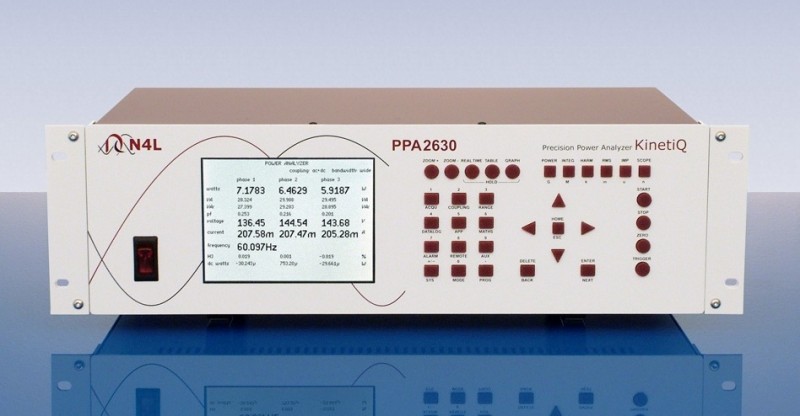

  • Rack mounting option

Comparison Chart




PPA1500
Compact
Bench

PPA2500
and
PPA2600 *

PPA5500
Highest
accuracy

Accuracy

Basic V A reading

0.05%

0.04%

0.02%

Basic Power reading

0.1%

0.05%

0.03%

Number of Phases

Internal

1-3

1-3

1-3

Master Slave mode



4-6

4-6

Voltage input

Direct voltage

2500Vpk

3000Vpk

3000Vpk

Ranges

8

8

9

Direct current input options

10Arms



x

x

20Arms

x





30Arms

x

x

x

50Arms



x*

x

Ranges

8

8

9

Bandwidth

<30A current options

DC to 1MHz

DC to 2MHz

DC to 2MHz

50A current option



DC to 1MHz *

DC to 1MHz

Mechanical Features

Display

Colour Graphic

BW Graphic

Colour Graphic

USB memory port

x



x

Real time clock

x



x

19? Rack mounting option



x*

x

General features

Speed - Harmonic computations per second

300

300

1,800

Non volatile internal memory

192kB

192kB

1GB

USB port for memory drive

x



x

USB drive supplied standard





2GB

Non-volatile real time clock

x



x

Internal datalog functions

4

4

16 (4×4)

Torque and speed inputs



x

x



Accesorii standard

  • Leads: Power, RS232, USB
  • Connection Cables: 32A rated 1.5 meter long leads with 4mm - stackable terminals, 2x Yellow and 2x Black per phase
  • Connection Clips: 4mm terminated alligator clips - 2x Yellow and 2x Black per phase
  • Documentation: Calibration Certificate, User manual and quick start guide

No Connection cables or clips supplied with 50Arms version
