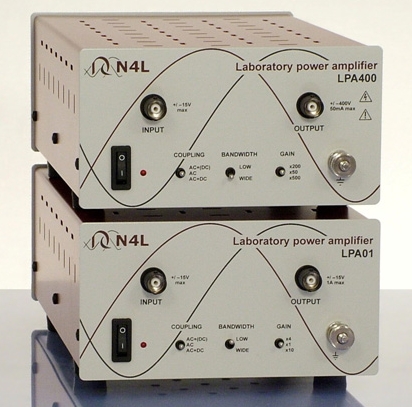

	LPA400A/B High voltage	LPA01 General purpose	LPA05A/B High power
Full power bandwidth	800Vpk-pk @ 100kHz (A)		80Vpk-pk @ 500kHz (A)
	360Vpk-pk @ 200kHz (B)		40Vpk-pk @ 1MHz (A)
	80Vpk-pk @ 1MHz (A/B)	28Vpk-pk @ 1MHz	32Vpk-pk @ 1MHz (B)
Max ac output current	0.075Apk 0.05Arms (A)	1Apk 0.7Arms	5Apk 3Arms (A)
	0.15Apk 0.1Arms (B)		8Apk 5Arms (B)
Slew rate	500 V/us	600 V/us	120 V/us
Gain options	X50, x200, x500	X1, x4, x10	X10
Coupling ½ ac, ac+dc, ac+(dc)	x	x	x
AC coupling filter 16Hz -3dB	x	x	x
Low B/W filter 40dB/decade	x	x	x
Power supply	115V or 230V fixed	universal	universal

Alte produse N4L

ANALIZOR RASPUNS IN FRECVENTA TENSIUNI INALTE 100UH..2.4MHZ N4L PSM2200

• Frequency range 100µHz to 2.4MHz
• Floating differential inputs - 500 Vpk
• Frequency response analyzer
• Vector Volt Meter / Phase Angle Volt Meter
• Impedance analyzer
• Harmonic analyzer

AMPLIFICATOR TENSIUNE & PUTERE LABORATOR N4L LPA01

• 14Vpk @ 1Apk from DC to 1MHz
• Switch selectable gain
• High slew rate
• AC, AC+DC or AC with reduced DC
• Stable into any load
• Selectable bandwidth

ANALIZOR RASPUNS IN FRECVENTA 10UH..1MHZ N4L PSM1700

• Frequency range 10µHz to 1MHz
• Floating differential inputs - 100 Vpk
• Frequency response analyzer
• Vector Volt Meter / Phase Angle Volt Meter
• Loop response analysis
• Impedance analyzer
• Harmonic analyzer

AMPLIFICATOR TENSIUNE & PUTERE LABORATOR N4L LPA05

• 16 or 20Vpk @ 5 or 3Apk from DC to 1MHz
• Fixed x10 gain
• High slew rate
• High frequency and current into low impedance
• Stable into any load
• Isolated BNC or 4mm touchproof output sockets

ANALIZOR CALITATE PUTERE 1,2 SAU 3 FAZE DC..500KHZ N4L PPA500

• 0.05% Basic accuracy
• Frequency range DC and 10mHz to 500kHz
• High precision internal shunts
• Superior accuracy to any external shunt
• 10 millidegree phase accuracy - Necessary for low power factor applications
• 20 Arms (300 Apk) & 1000 Vrms (2500 Vpk) direct input
• 1, 2 or 3 phase versions

ANALIZOR DE IMPEDANTA DC..35MHZ N4L IAI

• DC to 35MHz frequency range
• 4 wire Kelvin Connections
• Signal level: ±10V peak max.
• Shunts: 5O, 50O, 5kO, 500kO

ANALIZOR DE PUTERE 1-3 FAZE DC..1MHZ N4L PPA1500

• 0.05% Basic accuracy
• Frequency range DC and 10mHz to 1MHz
• 20 Arms (300 Apk) & 1000 Vrms (2500 Vpk) direct input
• 1, 2 or 3 phase versions
• RS232, USB, LAN, Extension and Auxiliary ports

POWER METRU SELECTIV DE NIVEL 10MHZ..1MHZ N4L SLM1700

• Frequency range 10mHz to 1MHz
• Dual frequency SLM mode
• Input up to 100 Vpk
• Oscilloscope mode

ANALIZOR RASPUNS IN FRECVENTA 10UH..35MHZ N4L PSM1735

• Frequency range 10µHz to 35MHz
• Floating differential inputs - 10 Vpk
• Frequency response analyzer
• Vector Volt Meter / Phase Angle Volt Meter
• Impedance analyzer
• Harmonic analyzer

ANALIZOR DE PUTERE SI PRECIZIE 1-3/4-6 DC..2MHZ FAZE N4L PPA2600

• 0.04% basic accuracy
• Frequency range dc and 10mHz to 2MHz
• Up to 50Arms - 1000Apk direct current input
• 1, 2 or 3 phase versions, Master - slave configuration for 6 phase operation
• RS232, IEEE488, USB, LAN, Torque, Speed and Extension ports
