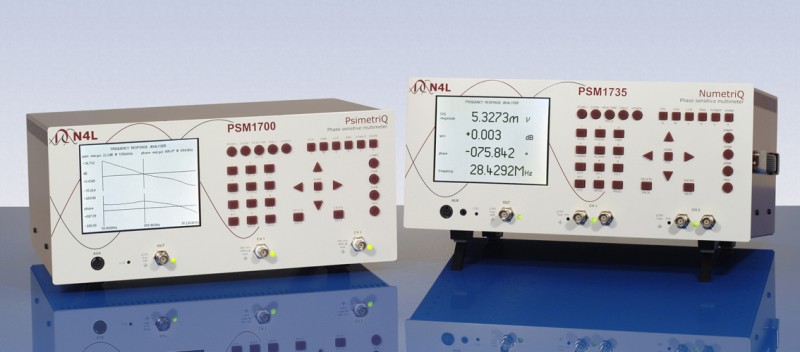

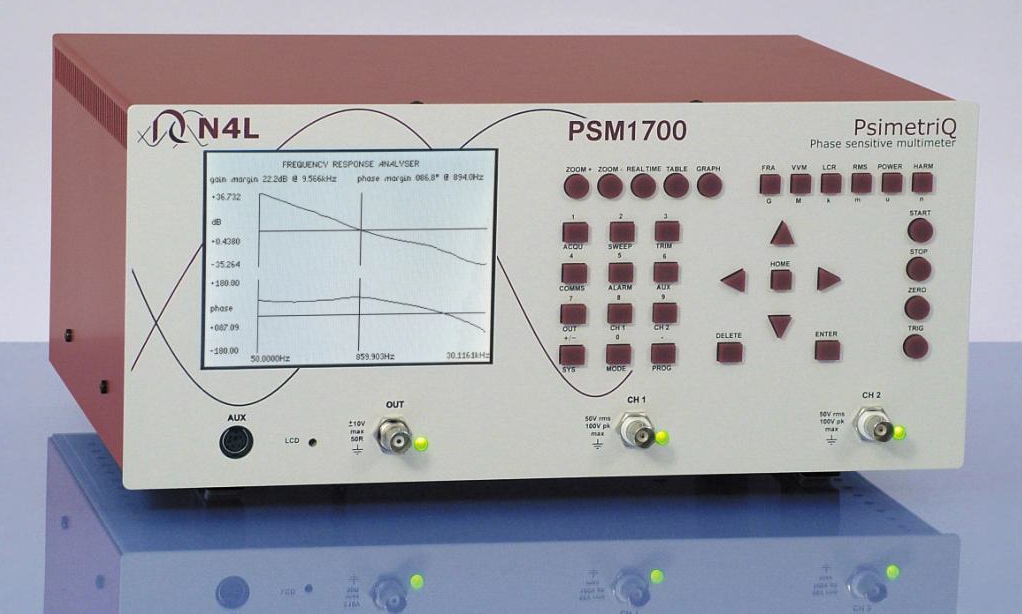

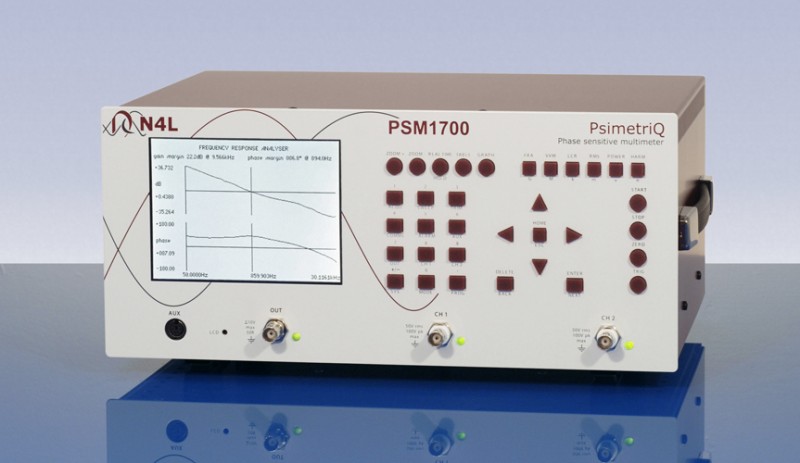

Analizor raspuns in frecventa 10uH..1MHz N4L PSM1700

Cod: N4L PsimetriQ PSM1700



Brosura produs PDF, 0.73 Mb


Descriere

  • Frequency range 10µHz to 1MHz
  • Floating differential inputs - 100 Vpk
  • Gain accuracy at < 1 kHz  0.02 dB

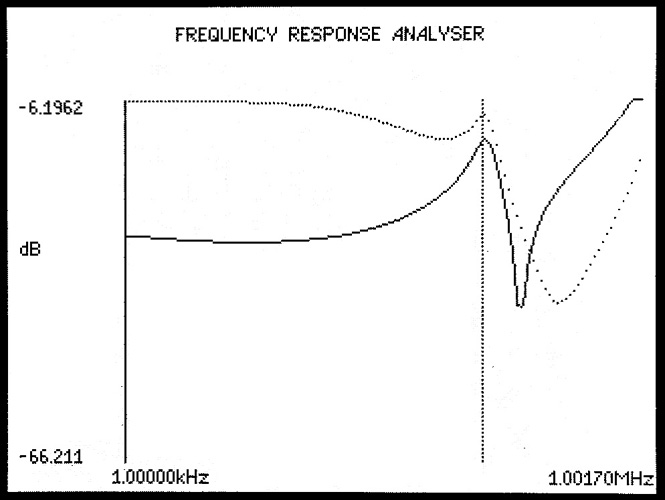

  • Frequency response analyzer
  • Vector Volt Meter / Phase Angle Volt Meter
  • Loop response analysis
  • Phase accuracy at < 1 kHz  0.02°
  • Impedance analyzer
  • RMS Volt Meter
  • Harmonic analyzer

Comparison Chart




PSM2200
High voltage

PSM1700
General purpose

PSM1735
High frequency



Frequency range

100µHz to 2.4MHz

10µHz to 1MHz

10µHz to 35MHz

Input type

Isolated 500 Vpk

Floating differential

Full differential

Inputs

2

2

2

Maximum range

500 Vpk

100 Vpk

10 Vpk

Minimum range

10 mVpk

10 mVpk

1 mVpk

Outputs

1

1

1

Maximum output level

10 V dc and ac pk

10 V dc and ac pk

10 V dc and ac pk

Gain accuracy at
< 1 kHz

0.02 dB

0.02 dB

0.01 dB

Gain accuracy at
< 100 kHz

0.3 dB

0.2 dB

0.1 dB

Gain accuracy at
< 1 MHz

1.2 dB

1.1 dB

0.14 dB

Phase accarcy at
< 1 kHz

0.05°

0.02°

0.01°

Phase accuracy at
< 100 kHz

0.7°

0.3°

0.06°

Phase accuracy at
< 1MHz

5°

3°

0.15°

Signal generator

Sine, triangle, square, sawtooth

Sine, triangle, square, sawtooth

Sine, square

Auto G/P margin



x

x

High speed sweep



x

x

Display

Type

EL

LCD

LCD

Resolution

160 x 80

320 x 240

320 x 240

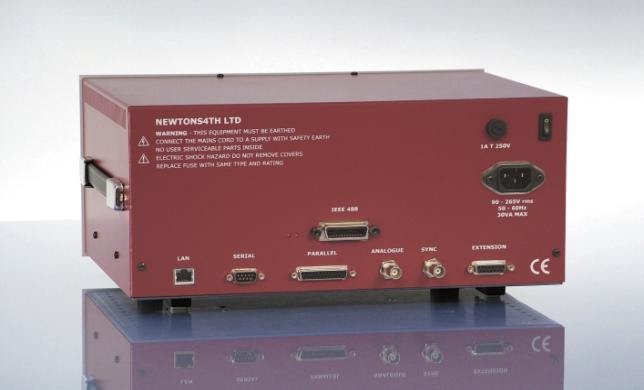

Interface

RS232

x

x

x

GPIB

option

option

option

LAN



option

option

Compatible accessories

LCR Active Head



x

x

Impedance Analysis Interface



x

x

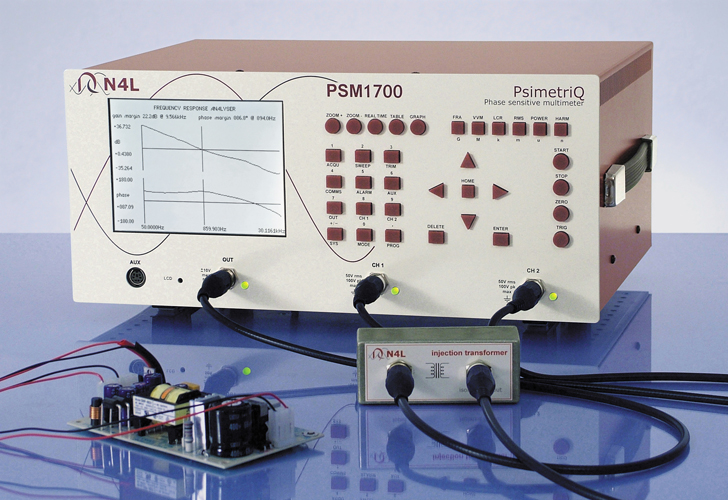

Injection Transformer

x

x

x

Power Meter Adapter

PSM2

PSM1

PSM1

High Current Precision Shunt

x

x

x



Accesorii standard

Probes

2 off with PSM1700 - 4 off with PSM1735

Leads

Output, RS232, Power

Software

CommVIEW

Documentation

Calibration Certificate, User Manual
