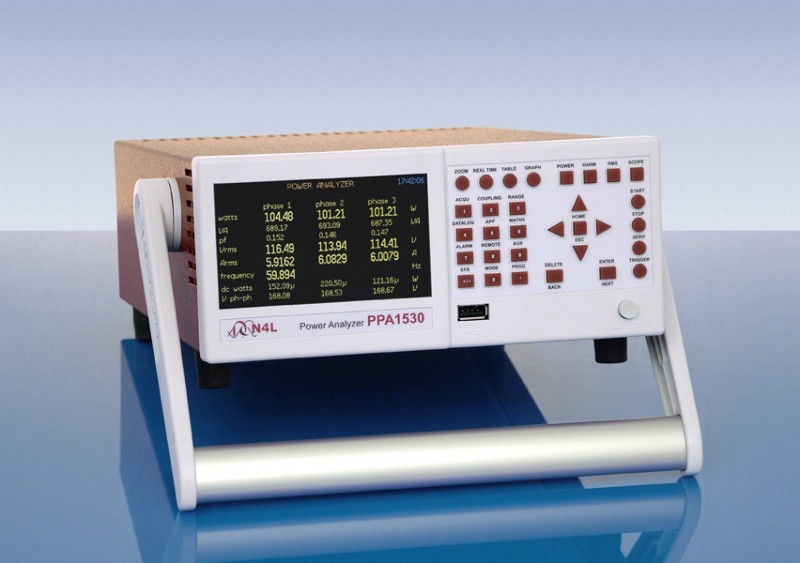

Analizor de putere 1-3 faze DC..1MHz N4L PPA1500

Cod: N4L PPA1500



Brosura produs PDF, 4.82 Mb


Descriere

  • 0.05% Basic accuracy
  • Frequency range DC and 10mHz to 1MHz
  • High precision internal shunts
  • Superior accuracy to any external shunt
  • 20 Arms (300 Apk) & 1000 Vrms (2500 Vpk) direct input
  • High speed sampling on all channels
  • 1, 2 or 3 phase versions
  • Simple BNC connection of N4L shunts for high current applications
  • 10 millidegree phase accuracy
  • Necessary for low power factor applications
  • Unique x10 gain mode for Standby Power measurement
  • True real time analysis with no measurement gap

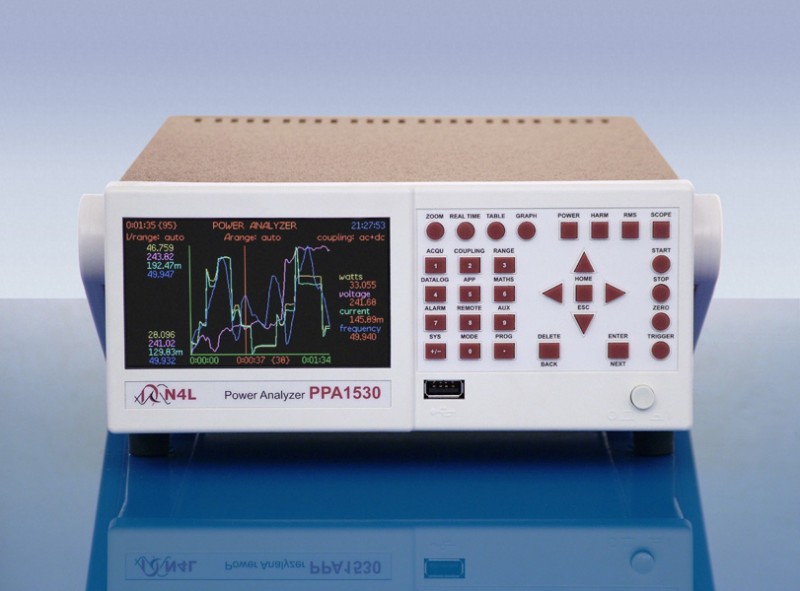

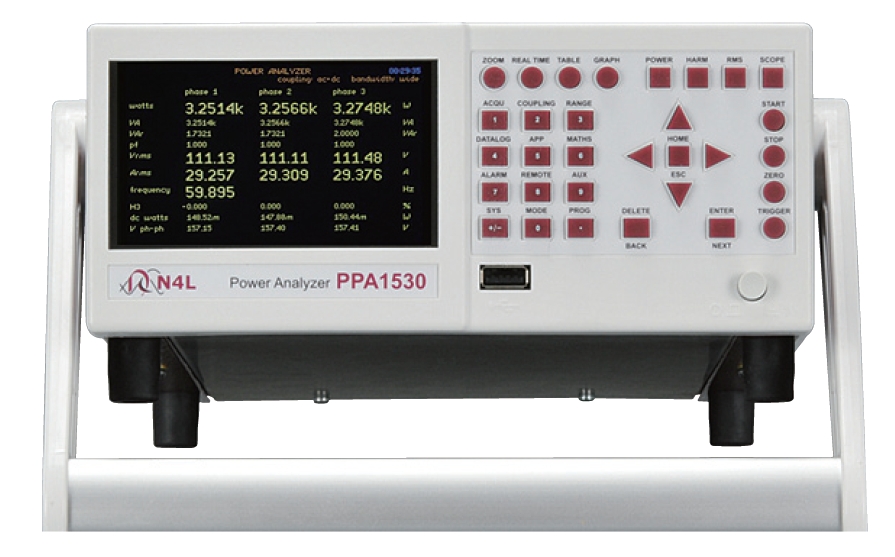

  • High contrast full colour graphic display

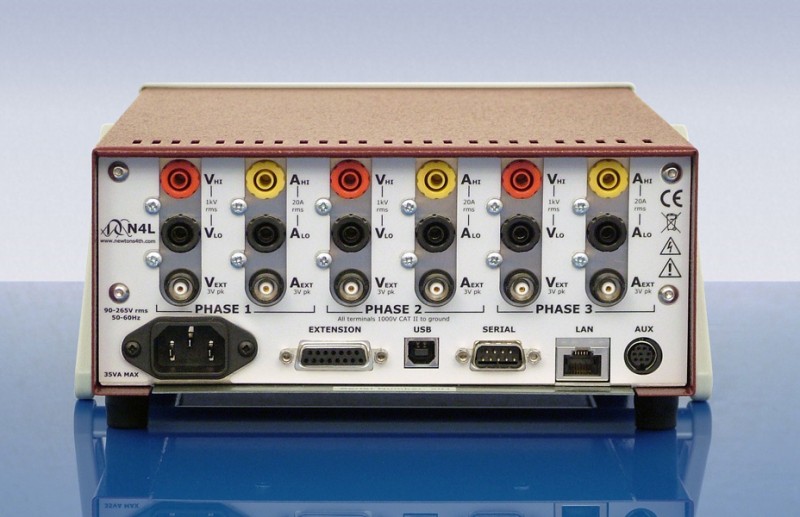

  • RS232, USB, LAN, Extension and Auxiliary ports



Comparison Chart

PPA1500
Compact
Bench
PPA2500
and
PPA2600 *
PPA5500
Highest
accuracy
Accuracy
Basic V A reading
0.05%
0.04%
0.02%
Basic Power reading
0.1%
0.05%
0.03%
Number of Phases
Internal
1-3
1-3
1-3
Master Slave mode
4-6
4-6
Voltage input
Direct voltage
2500Vpk
3000Vpk
3000Vpk
Ranges
8
8
9
Direct current input options
10Arms
x
x
20Arms
x
30Arms
x
x
x
50Arms
x*
x
Ranges
8
8
9
Bandwidth
<30A current options
DC to 1MHz
DC to 2MHz
DC to 2MHz
50A current option
DC to 1MHz *
DC to 1MHz
Mechanical Features
Display
Colour Graphic
BW Graphic
Colour Graphic
USB memory port
x
x
Real time clock
x
x
19? Rack mounting option
x*
x
General features
Speed - Harmonic computations per second
300
300
1,800
Non volatile internal memory
192kB
192kB
1GB
USB port for memory drive
x
x
USB drive supplied standard
2GB
Non-volatile real time clock
x
x
Internal datalog functions
4
4
16 (4×4)
Torque and speed inputs
x
x





Accesorii standard

  • Leads: Power, RS232, USB
  • Connection Cables: 20A (Std version) or 30A (HC version) 1.5m long 4mm stackable terminals, 1x red, 1x yellow and 2x black per phase
  • Connection Clips: 4mm terminated aligator clips - 1x red, 1x yellow and 2x black per phase (1x red and 1x black per phase with PPA5500-HC version)
  • CD-ROM: CommView2 (RS232/USB/LAN), Command line, Script based communication software
  • Instruction Manual: User manual, Communications manual
  • Other Documents: Calibration certificate, Quick start guide
