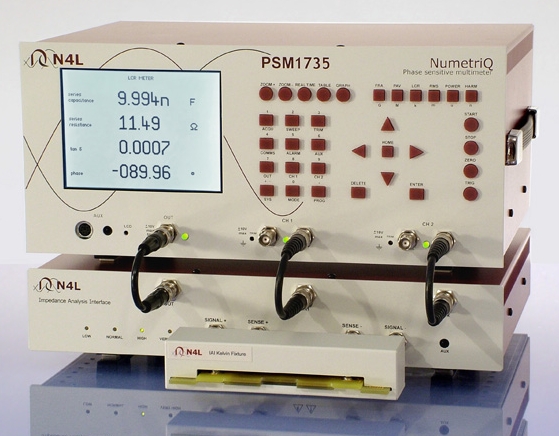

Analizor de impedanta DC..35MHz N4L IAI

Cod: N4L IAI



Brosura produs PDF, 0.13 Mb


Descriere

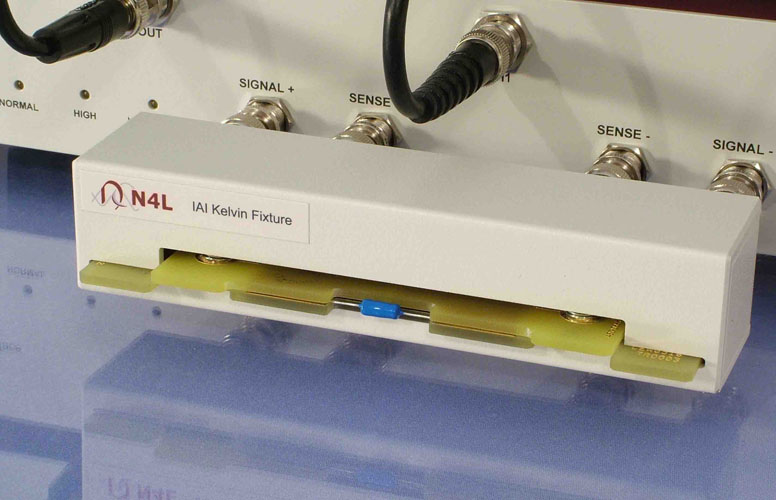

  • 4 wire Kelvin Connections
  • Signal level: ±10V peak max.
  • DC to 35MHz frequency range
  • Shunts: 5O, 50O, 5kO, 500kO
Comparison Chart

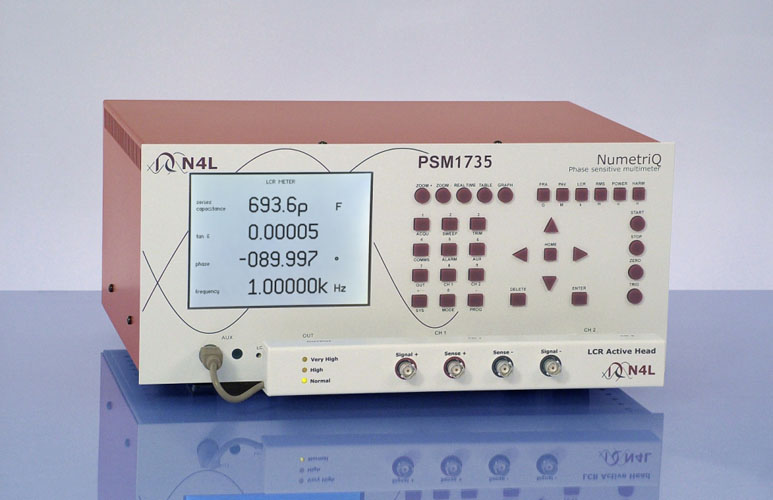

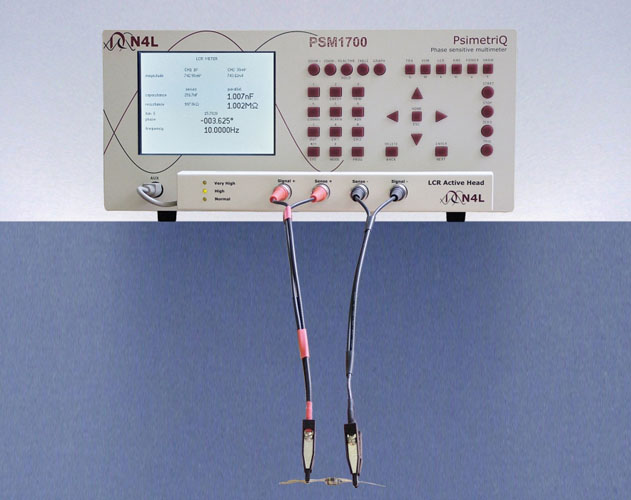

LCR Active Head
General
Purpose

IAI
High Precision
High Frequency

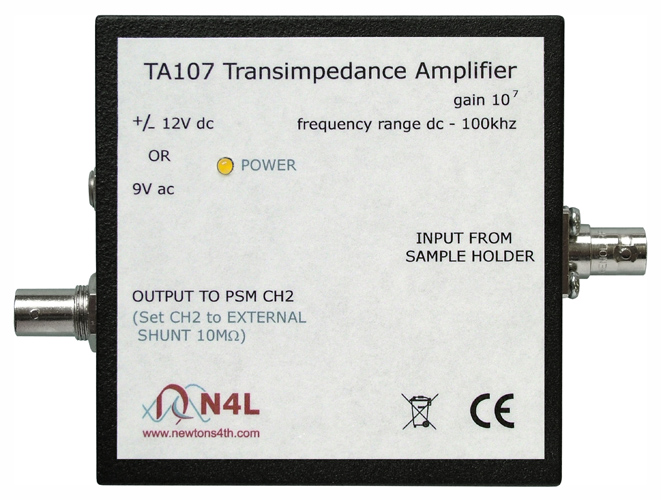

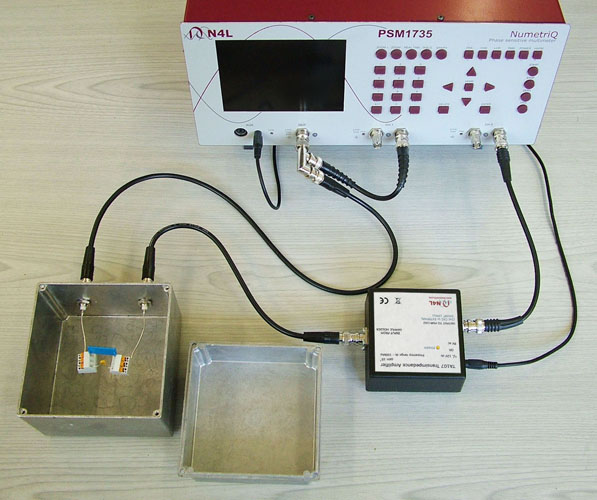

TA107
High
Impedance

Measurement Ranges:

Frequency

10uHz to 5MHz

10uHz to 35MHz

DC to 100kHz

Inductance

100nH to 10kH

10nH to 10kH



Capacitance

10pF to 1000uF

1pF to 1000uF



Resistance

10mO to 100MO

1mO to 500MO

1MO to 1TO

Basic Accuracy:

PSM1700/35

0.2% <1kHz

0.1% <1kHz



PSM1700

0.5% + Freq <1MHz

0.2% + Freq <1MHz

From 1% + Freq

PSM1735

0.5% + Freq <5MHz

0.2% + Freq <35MHz

From 0.5% + Freq

Internal Shunts:

Low

N/A

5O



Normal

100O

50O



High

10kO

5kO



Very High

1MO

500kO



Additional Features

Current
range





5pA to 500nA

Nominal
Gain





107 volts per amp

Power source

Auxiliary Port

90-264V Line

Auxiliary port or line adaptor
