Trusa testare rigiditate ulei electroizolant Megger OTS60PB OTS80PB

Cod: Megger OTS60PB OTS80PB




Brosura produs PDF, 0.67 Mb


Descriere

• Lightest - miniumum weight 16 kg - portable instruments for measuring insulating oil breakdown voltage

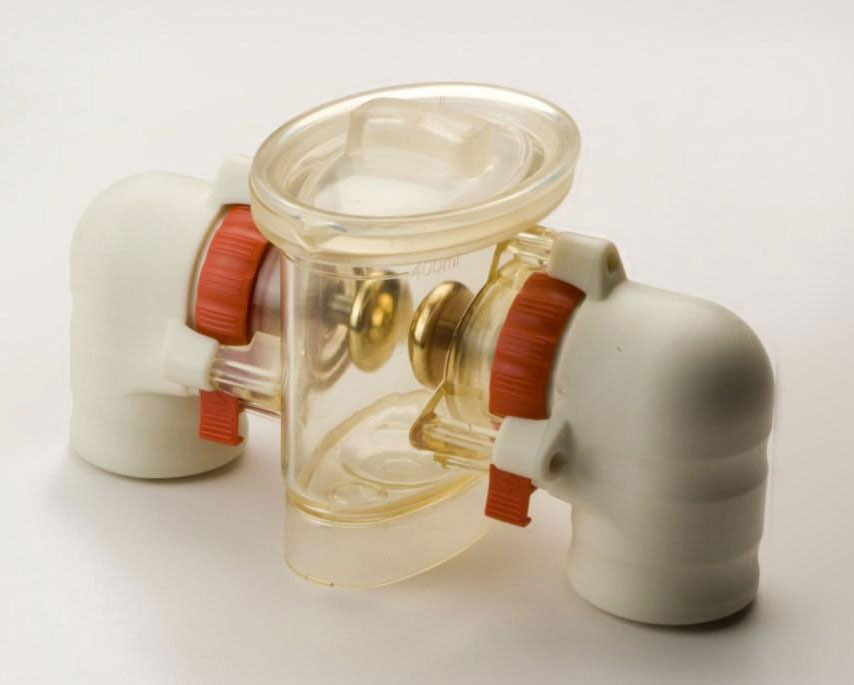

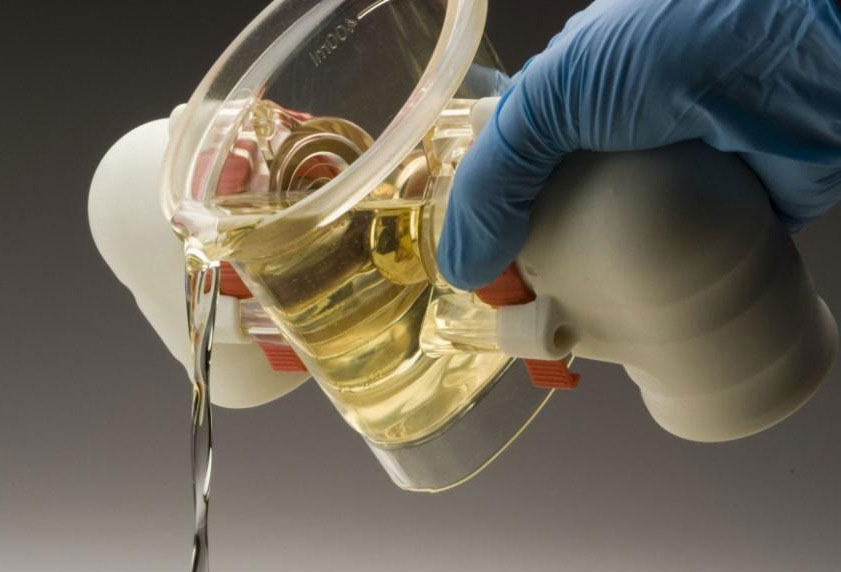

• Lock in precision - oil vessel with lockable adjustment

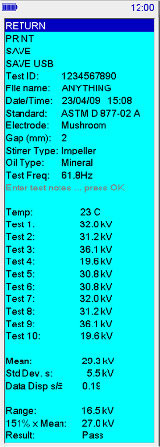

• Bright 3.5 inch colour display visable out doors
• Suitable for mineral, ester and silicon oils
• Trip detection circuit with direct measure ment of voltage and current
• Ultra fast (<10 µs) HV switch off time

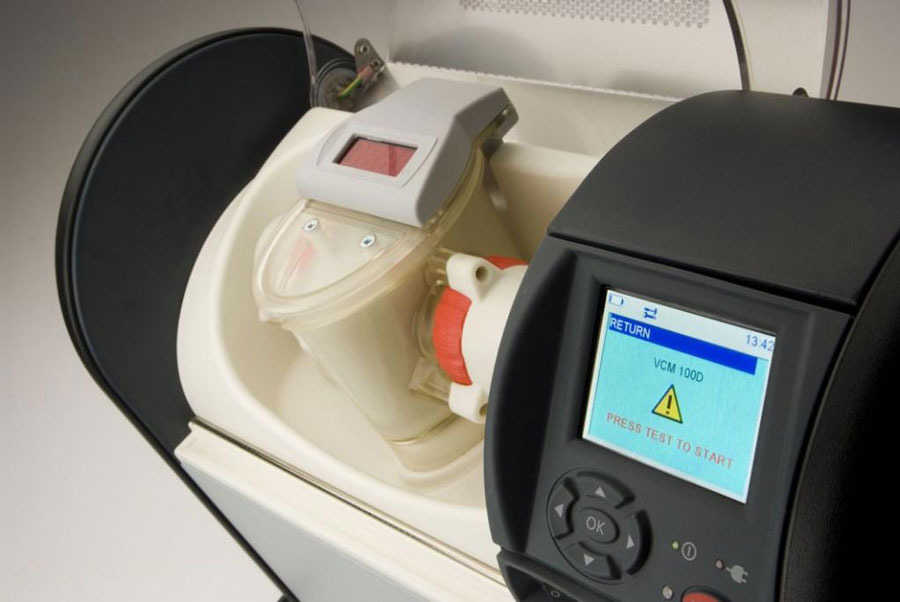

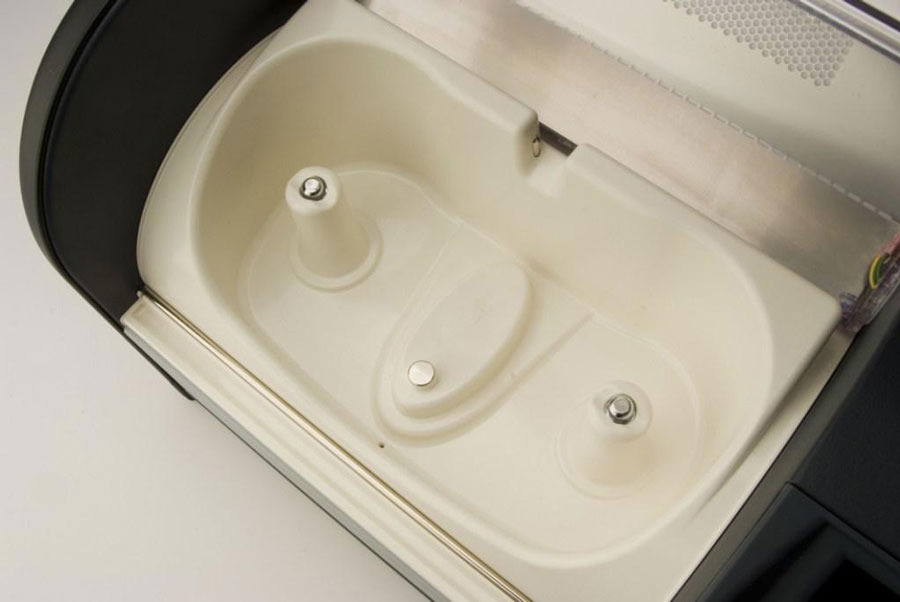

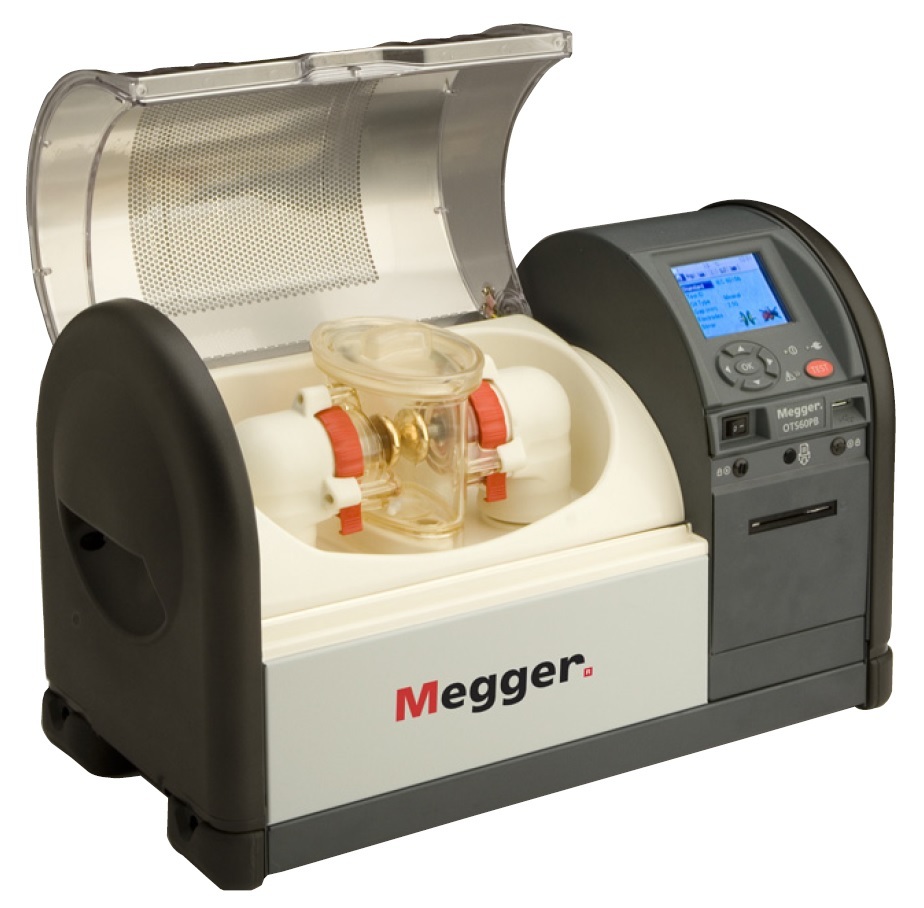

Megger’s automatic portable oil test sets perform accurate breakdown voltage tests on mineral, ester and silicon insulating liquids. Moulded test vessels give repeatable results in the field and laboratory with lock in precision electrode gap setting adjustment wheels. The transparent, shielded lid is a key feature enabling users to see what is happening within the test chamber.

Megger portable 60 kV and 80 kV oil test sets are the lightest on the market ranging from 16 kg to 23.5 kg depending on model and configuration. They come complete with optional carry bag and transport case.



Accesorii standard

OTS60PB configured*

OTS80PB configured*



Included accessories

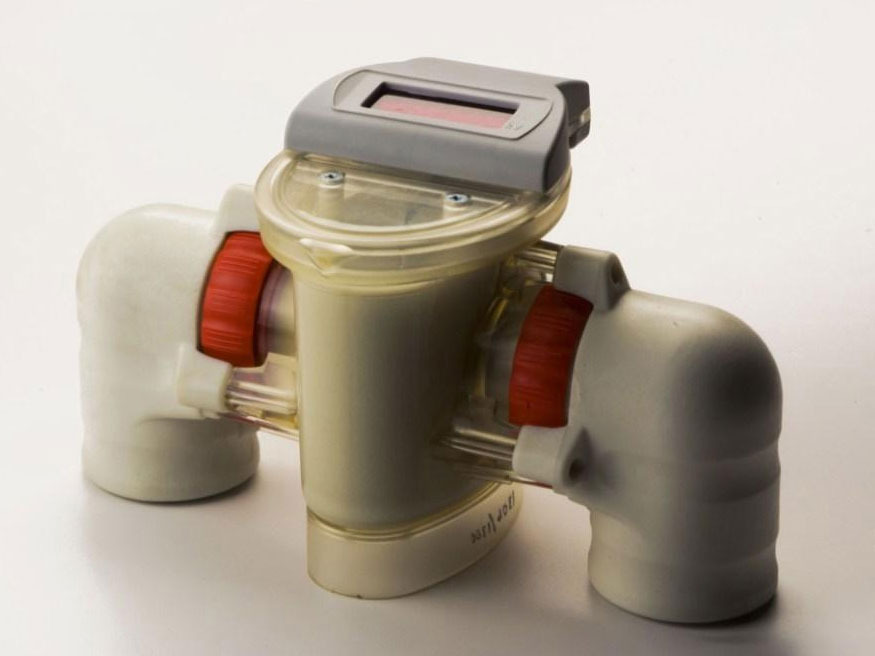

Vessel 400 ml assembly

12 V vehicle charger lead (supplied only on instruments configured with a battery)

Magnetic bead stirrers (2 off)

Magnetic bead retriever

Electrode gauge set 1, 2, 2.5, 2.54 mm 1002-144

User manual



Optiuni recomandate

Configured accessories (to order additional or spares)

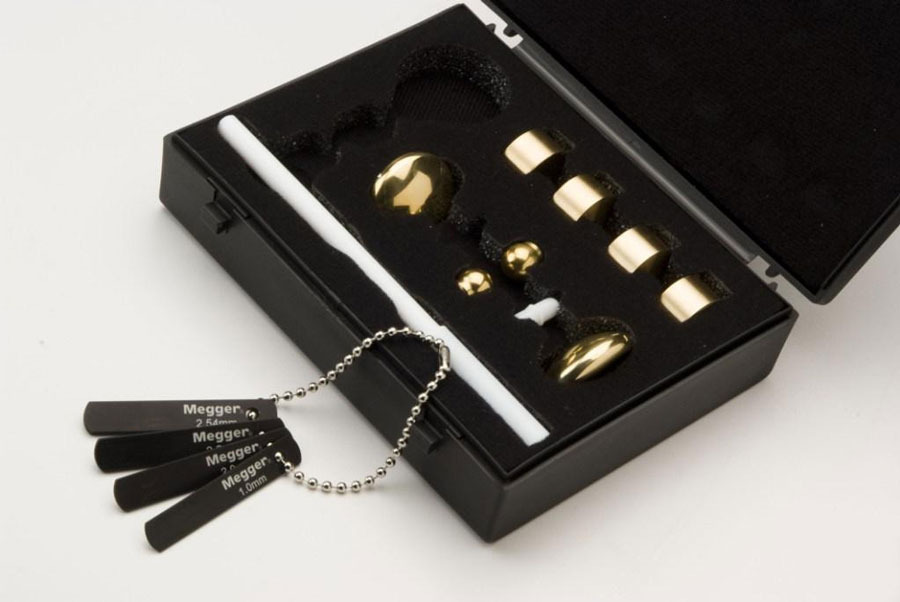

IEC60156 electrode Set - 12.7 mm spherical (2),36 mm mushroom (2) 1001-477

ASTM D877/1816 electrode set - 25.4 mm cylindrical (2 standard, and 2 none standard), 36 mm mushroom (2) 1001-478

Full electrode set ASTM and IEC electrodes 1001-479

Vessel lid mounted impeller (ASTM D1816) for use with 400 ml vessel 1001-102

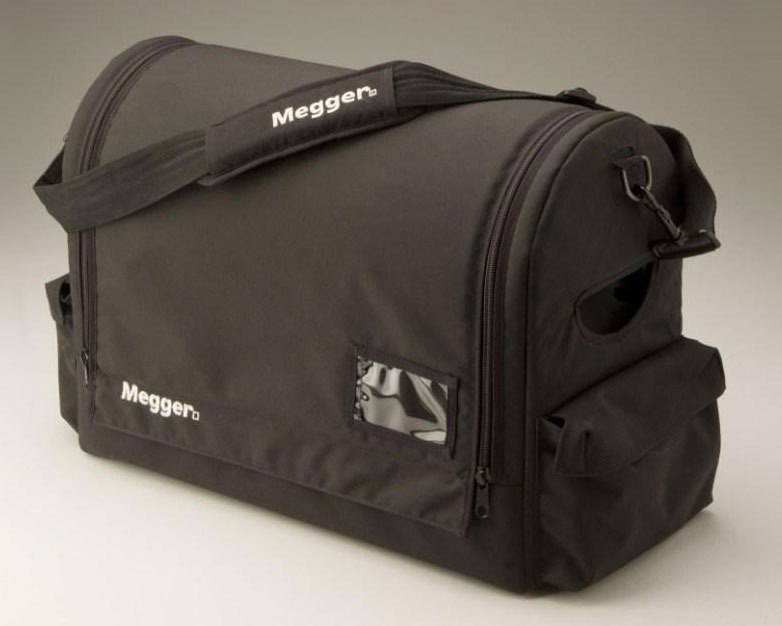

Carry bag (padded) OTS80PB 1001-476

Carry bag (padded) OTS60PB 1001-480

Optional accessories

Transport case (with wheels) 1001-475

Vessel 400 ml assembly (no electrodes supplied) 1001-473

Vessel 150 ml assembly(no electrodes supplied) 1001-474

VCM100D digital voltage checker 1001-105

VCM80D digital voltage checker 1001-801

Printer paper, 1 roll (MOV applies) (4 rolls supplied if printer configured) 25995-001
