Tester multifunctional instalatii electrice Megger MFT1710 MFT1720 MFT1730
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Megger MFT1710 MFT1720 MFT1730 MFT1700




Brosura produs PDF, 0.23 Mb


Descriere

¦ Two and three wire non trip loop testing for fast repeatable results
¦ Large bright LCD display showing dual parameters - loop resistance and fault current, insulation resistance and test voltage
¦ Phase rotation indication for verification of rotating machinery
¦ 3-phase RCD testing for industrial applications with no earth
¦ 3-terminal earth test for electrode resistance measurement
¦ On-board data storage and Bluetooth® download

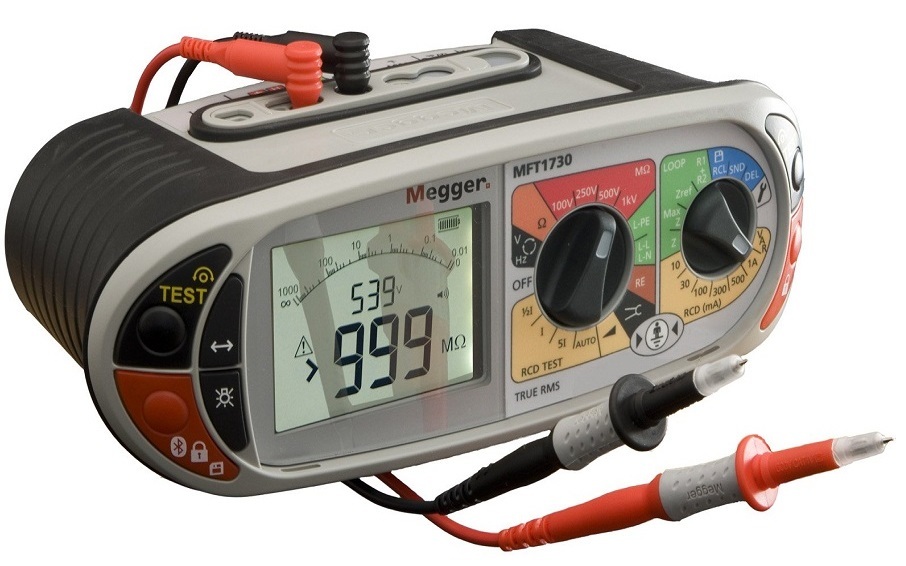

The MFT1700 series is a range of 3 instruments for testing low voltage electrical installations to BS7671. They provide all the tests required to complete the necessary electrical certification for industrial, commercial and domestic fixed wiring installations.

MFT1710 - The entry level 17th Edition tester offering CAT IV, 3 and 2-wire non trip loop testing with resistance and fault current display,frequency measurement and the largest, brightest and clearest display on the market.

MFT1720 - The most popular of the range of 17th Edition testers offering all the benefits of the MFT1710, plus auto RCD testing, phase rotation, programmable and 3-phase RCD testing and current measurement with the optional clamp.

MFT1730 - The most sophisticated of the 17th Edition testers brings Type B RCD testing, 3-pole earth electrode testing to a downloading and rechargeable instrument.

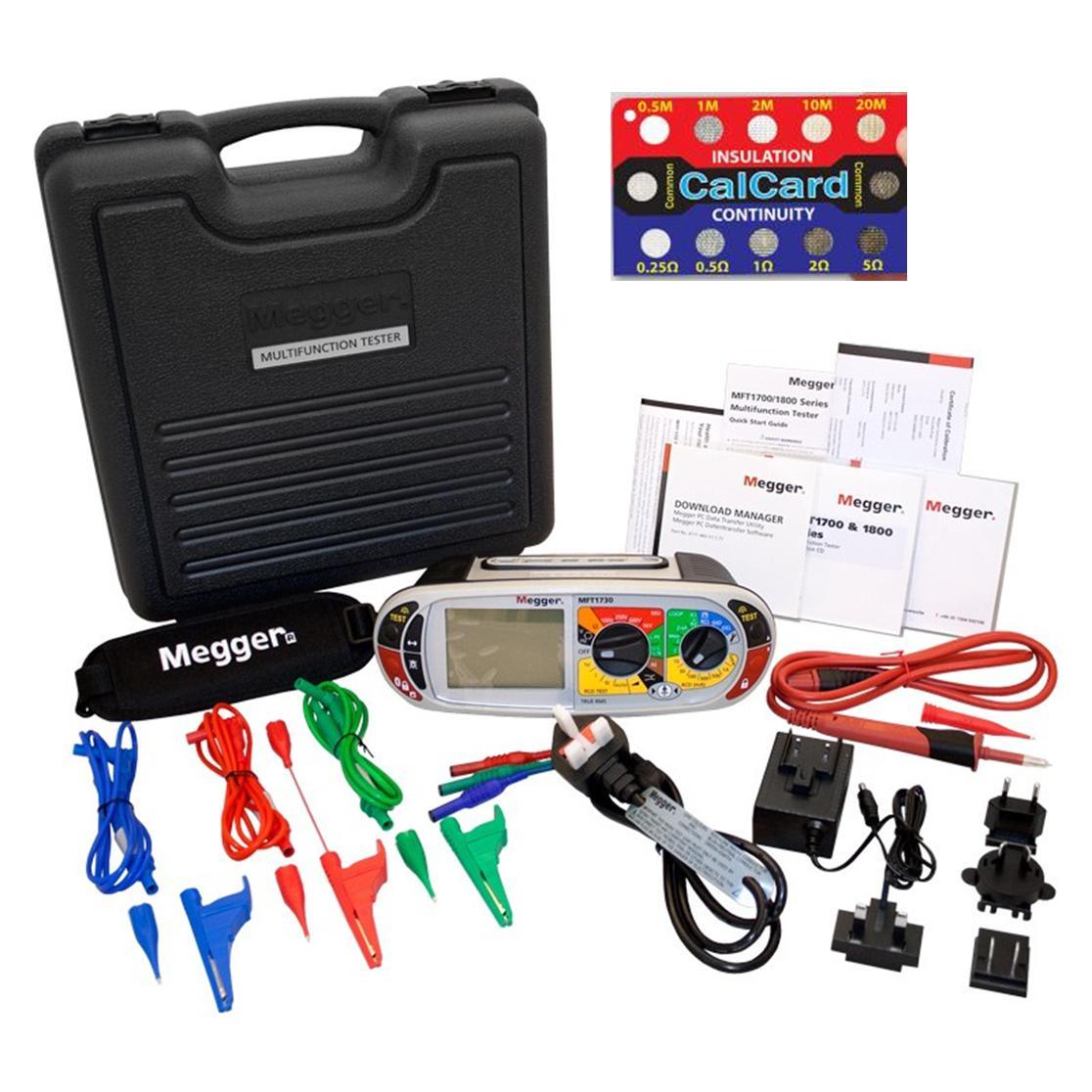

Accesorii standard

MFT1710-AU 1002-394

MFT1710-BS 1002-395

MFT1720-BS 1002-396

MFT1730-BS 1002-400



Included accessories

Printed quick start guide

Full user guide on CD

Calibration certificate

Switched probe SP5 (not with MFT1710) 1002-774

Neck strap - Megger embroidered 2001-509

3 Wire lead set with prods and clips 1001-991

SIA10 Socket interface adaptor UK to 3 x 4 mm (BS) 6220-810

SIA20 Socket interface adaptor UK to 3 x 4 mm (AU) 6220-828

Plug-in battery charger 2001-697





Optiuni recomandate

Optional accessories

PowerSuite Lite 1000-631

PowerSuite Lite On-Site (mobile) 1000-632

Euro mains test lead SIA45 2000-674

Fused 10 A test lead set (red/blue/green) with

prods and clips 1001-975

ETL30, 30 m extension test lead 1000-215

ETL50, 50 m extension test lead 1000-217

12 V charger lead 6280-332

Earth electrode kit 1001-810

Switched Probe SP5 (silicone) 1001-687

Current clamp ICLAMP
