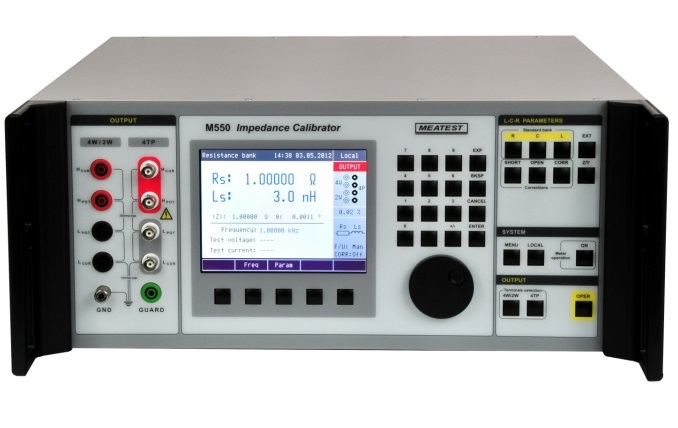

Calibrator impedanta RLC-metre: rezistenta, capacitate, inductanta Meatest M550

Cod: Meatest M550



Brosura produs PDF, 1.33 Mb


Descriere

  • Resistance standards from 0.1 O to 100 MO
  • Capacitance standards from 10 pF to 100 µF
  • Simulated inductance standards from 10 µH to 10 H
  • Four pair coaxial terminal connection, four terminal connection, two terminal connection
  • Calibration data from 20 Hz to 1 MHz
  • Interface bus GPIB and RS232 as standard





Description

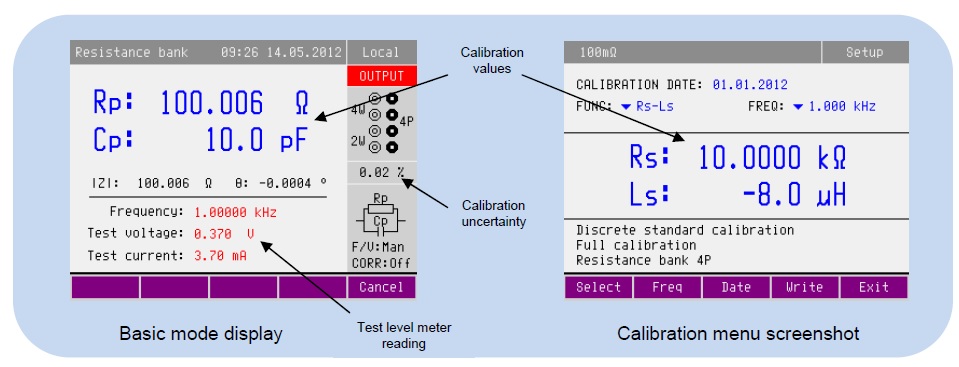

Impedance calibrator M550 is device designed for calibration of LCR meters in frequency range up to 1 MHz. It contains resistance standards in range 100 mO up to 100 MO of decimal nominal values, partial capacitance standards in range 10 pF to 100 µF and partial simulated inductance standards in range from 1 µH to 10 H. RC T-type passive network is used for inductance simulation. Calibration values of both complex parameters of partial standards are displayed in one of preselected pair of parameters. Precise, temperature independent and long life stable components are applied on positions of partial standards.

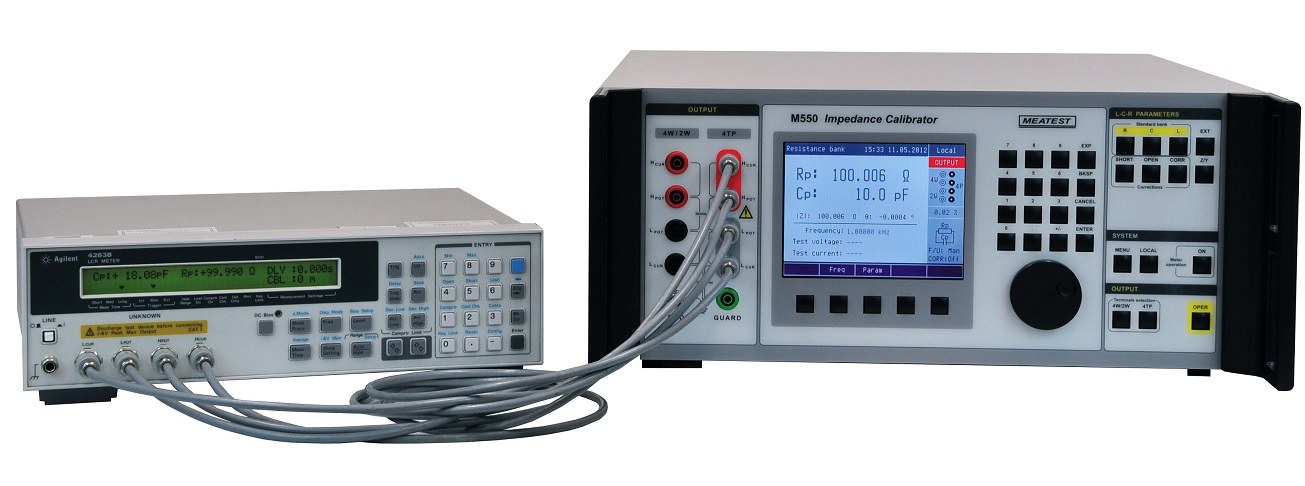

The calibrator offers either coaxial output terminals for calibration of four-pair terminal LCR meters, and banana four mm terminals for two- and four-wire connection. OPEN and SHORT reference positions are available as well. Calibrator is equipped with meter of test signal which displays frequence, voltage nad current of test signal. Easy recalibration system offers either full recalibration in all spot frequency points or simplified offset calibration. History of calibration values of partial standards at reference frequency 1 kHz can be easily recalled.



All functions of the calibrator can be controlled using IEEE488 bus or RS232 interface.





Alte produse MEATEST

CALIBRATOR IMPEDANTA RLC-METRE: REZISTENTA, CAPACITATE, INDUCTANTA MEATEST M550

• Resistance standards from 0.1 O to 100 MO
• Capacitance standards from 10 pF to 100 µF
• Simulated inductance standards from 10 µH to 10 H
• Four pair coaxial terminal connection, four terminal connection, two terminal connection
• Calibration data from 20 Hz to 1 MHz
• Interface bus GPIB and RS232 as standard


REZISTENTA CAPACITATE INDUCTANTA STANDARD PENTRU CALIBRARE RLC-METRE

• Resistance Capacitance Inductance standards
• Traceability of electric quantities
• Calibration of meters
• Calibration uncertainty 0.005 %
• Low time constant
• Three/four terminal or four pair terminal connection


CALIBRATOR CURENT INALT CLESTI AMPERMETRICI MEATEST M151

• Current 8 mA … 120 A (AC/DC)
• Frequency 15 Hz … 1 kHz
• Simulated current and transconductance amplifier
• Built-in process multimeter
• Output capability 8 Vpk
• Interface bus GPIB and RS232 as standard
• With current coil it can be used for calibration of clamp meters up to 3000 A


CALIBRATOR MULTIFUNCTIONAL DE INALTA PRECIZIE MEATEST M142

• 15ppm Accuracy
• DC/AC voltage up to 1000 V
• DC/AC current up to 30 A
• Resistance up to 1000 MO, capacitance up to 100 uF
• TC/RTD temperature sensors simulation
• Frequency output up to 20 MHz
• Electric power up to 240 V / 20 A
• Built-in process multimeter
• GPIB & RS232 interface


BOXA REZISTENTE IN DECADE PROGRAMABILA DE PRECIZIE MEATEST M630

• Resistance range 1.000 00 O - 1.200 000 MO
• Accuracy 0.003%
• Maximal voltage 200Vpk
• Resolution from 10 µO
• Range of Pt sensor temperature simulation -200°C - +850°C
• Connection 2, 3, 4-wire
• Remote control RS232, optionally USB, IEEE488, Ethernet

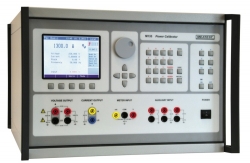

CALIBRATOR DE PUTERE SI ENERGIE ELECTRICA MEATEST M133
