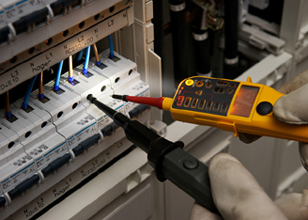

Tester tensiune si continuitate Fluke T90/ T110/ T130/ T150

Cod: Fluke T90/ T110/ T130/ T150




Brosura produs PDF, 0.36 Mb


Descriere

Fluke’s two-pole voltage and continuity testers are built to work the way you work. They give you the best combination of safety, ease-of-use and fast answers available anywhere.



  • CAT IV 600 V, Cat III 690 V safety rating Fluke’s family of Two-Pole Voltage testers comply with both regulation HSE GS 38 (tip caps) and IEC EN 61243-3: 2010.
  • 4 ways to detect ac/dc voltage A clear, instantly visible LED indicator, a bright digital display of the measurement value, an audible continuity test, and vibration to give tactile feedback (vibration indicator on T110, T130, T150).
  • Backlit graduated scale and backlit indicators
  • Vibration provides tactile feedback (T110, T130, T150).
  • Audio on/off for testing in quiet areas.
  • Low battery indicator
  • Detects voltage even with discharged batteries
  • Improved probe docking for secure storage
  • Phase rotation indicator for 3-phase systems
  • RCD functionality
    Two-button controls allow you to draw more current from the circuit under test and intentionally trip Residual-Current Devices (RCDs) remotely
  • Display Hold (T130, T150)
  • Built in electric torch (T110, T130, T150)
  • Single-phase voltage offers fast identification of live conductors
  • Push-on probe tips, probe tip protector and storage accessory
  • Probe tip protector and storage accessory
    Tip protector serves as an extra hand when opening UK electrical safety outlets.
  • Resistance testing to 1999 ohms (T150)
  • WearGuard™ insulation shows damage to test leads





Specifications

T90

T110

T130

T150

Voltage AC/DC

12V - 690V

12V - 690V

6V - 690V

6V - 690V

Continuity

0 - 400 k?

Frequency

0 / 40 - 400 Hz

Phase rotation

-

100 V - 690 V

Resistance measurement

-

-

-

Up to 1999 ?

Response Time (LED indicator)

< 0.5 s

200 k? input impedance

Current draw 3,5 mA @ 690 V
Current draw 1,15 mA @ 230 V

7k ? input impedance (with load buttons pressed)

-

Current draw 30 mA @ 230 V

Safety rating

CAT II 690V
CAT III 600V

CAT III 690V
CAT IV 600V

IP rating

IP54

IP64

IP64

IP64



Accesorii standard

Model Name

Description

Fluke T90

Voltage/Continuity Tester

Fluke T110

Voltage/Continuity Tester With Switchable Load

Fluke T130

Voltage/Continuity Tester With LCD, Switchable Load

Fluke T150

Voltage/Continuity Tester With LCD, Ohms, Switchable Load



Alte produse FLUKE

FLUKE 190-202 190-202/S OSCILOSCOP PORTABIL DIGITAL 2X200 MHZ

• 2-canale izolate 200MHz
• Clasa de protectie CAT III 1000 V, CAT IV 600 V
• Multimetru digital dedicat cu 5000 de numărări la modele cu două canale
• Măsurători automate avansate, energie (Vpwm, VA, W, PF) ™ timp (mAs, V/s, w/s)
• Clasa de protectie IP-51 pentru praf şi lichide pentru a rezista in medii dificile
• Porturi USB izolate



CALIBRATOR TERMOCUPLE FLUKE 714B

• measure and simulate (17) different thermocouple types and millivolts
• Measure 4 to 20 mA signals while simultaneously sourcing a temperature signal
• Configurable 0 % and 100 % source settings for quick 25 % linearity checks
• Linear ramp and 25 % step auto ramp based on 0 % and 100 % settings
• Dual inputs and backlit display for easy interpretation of measurements
• Power down settings remembered at power up for easy restart of tests
• 1-year and 2-year specifications and traceable certification of calibration



LANTERNA CU LUMINA UV ULTRAVIOLETA PENTRU DETECTIE SCURGERI FREON FLUKE RLD2

• Six UV LEDs (395 nm wavelength) detect leak detection dyes
• Laser pointer clearly locates center of the UV field for accuracy
• Three LED flashlight with 100,000 hour LED life
• Operating temperature 0 ° C to 50 ° C
• Four operating modes: flashlight, UV light, laser light, UV/laser light combination


SISTEM INDUSTRIAL MASURA TENSIUNE SI CURENT FLUKE CNX 3000 IND

• masuratori de tensiune c.a. si c.c. true-rms, la 1.000 V
• curent c.a. si c.c. true-RMS, cu o rezolutie de 0,01 mA
• Masuratori de curent c.a. true-RMS la 2500 A
• Masuratori de tensiune c.a. true-RMS pâna la 1000 V
• CAT III 1000, CAT IV 600 V, CAT III 1000 V; IP42


FLUKE 190-504 190-504/S OSCILOSCOP PORTABIL DIGITAL 4X500 MHZ

• 4-canale izolate 500MHz
• Clasa de protectie CAT III 1000 V, CAT IV 600 V
• Multimetru digital dedicat cu 5000 de numărări la modele cu două canale
• Măsurători automate avansate, energie (Vpwm, VA, W, PF) ™ timp (mAs, V/s, w/s)
• Clasa de protectie IP-51 pentru praf şi lichide pentru a rezista in medii dificile
• Porturi USB izolate



POMPA VACUUM GENERARE PRESIUNI JOASE FLUKE 700LTP-1

• hand operated pressure pump
• designed to generate either vacuum to -13 psi / -.90 bar or pressures to 100 psi / 6.9 bar
• Pump can be easily cleaned without disassembly
• Adjustable pressure relief valve with slow-bleed capability. Allows the slow release pressure at a controlled rate
• Quick fit connectors, one for the reference port for connection to a Fluke 700 series pressure module and one to connect to a unit under test
• Slim design, easy to carry and use



CALIBRATOR MULTIFUNCTIONAL DE PROCES FLUKE 744

• 0 to 300 V DC/AC Voltage measure
• 0 to 15 V DC Voltage source / simulate
• 0 to 110 mA DC Current measure
• 0 to 22 mA DC Current source / simulate
• 0 to 11 kO Resistance measure / source / simulate
• 1 to 50 kHz Frequency measure / source / simulate
• PC interface and data logging
• Integrated HART communication



MEGOHMETRU DIGITAL MULTIMETRU IZOLATIE 500/ 1000V FLUKE 1503

• Insulation test range: 0.1 MO to 2000 MO
• Insulation test voltages: 500 V, 1000 V

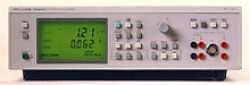

RLC-METRU 50 HZ..100 KHZ FLUKE 6304/ 6304C
