Analizor trifazat calitate energie electrica Fluke 434 II

Cod: Fluke 434-II 434II




Brosura produs PDF, 0.82 Mb


Descriere

  • Energy loss calculator: Classic active and reactive power measurements, unbalance and harmonic power, are quantified to pinpoint the fiscal costs of energy losses.
  • Troubleshoot real-time: Analyze the trends using the cursors and zoom tools.
  • Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance.

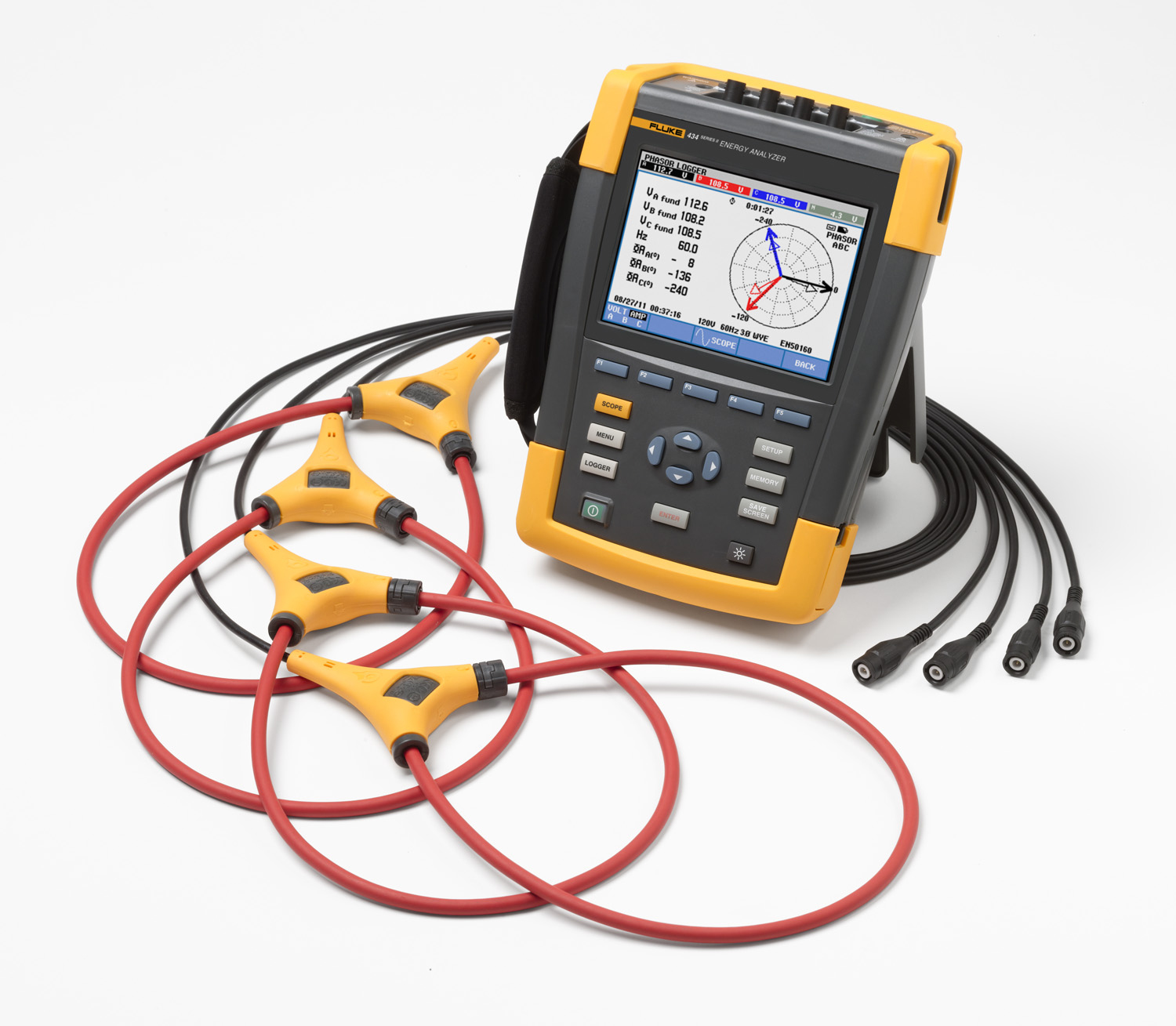

  • Measure all three phases and neutral: With included four flexible current probes with enhanced thin flex design to fit into the tightest places.
  • Automatic Trending: Every measurement is always automatically recorded, without any set-up.
  • System-Monitor: Ten power quality parameters on one screen according to EN50160 power quality standard.
  • Logger function: Configure for any test condition with memory for up to 600 parameters at user defined intervals.
  • View graphs and generate reports: With included analysis software.
  • Battery life: Seven hours operating time per charge on Li-ion battery pack.

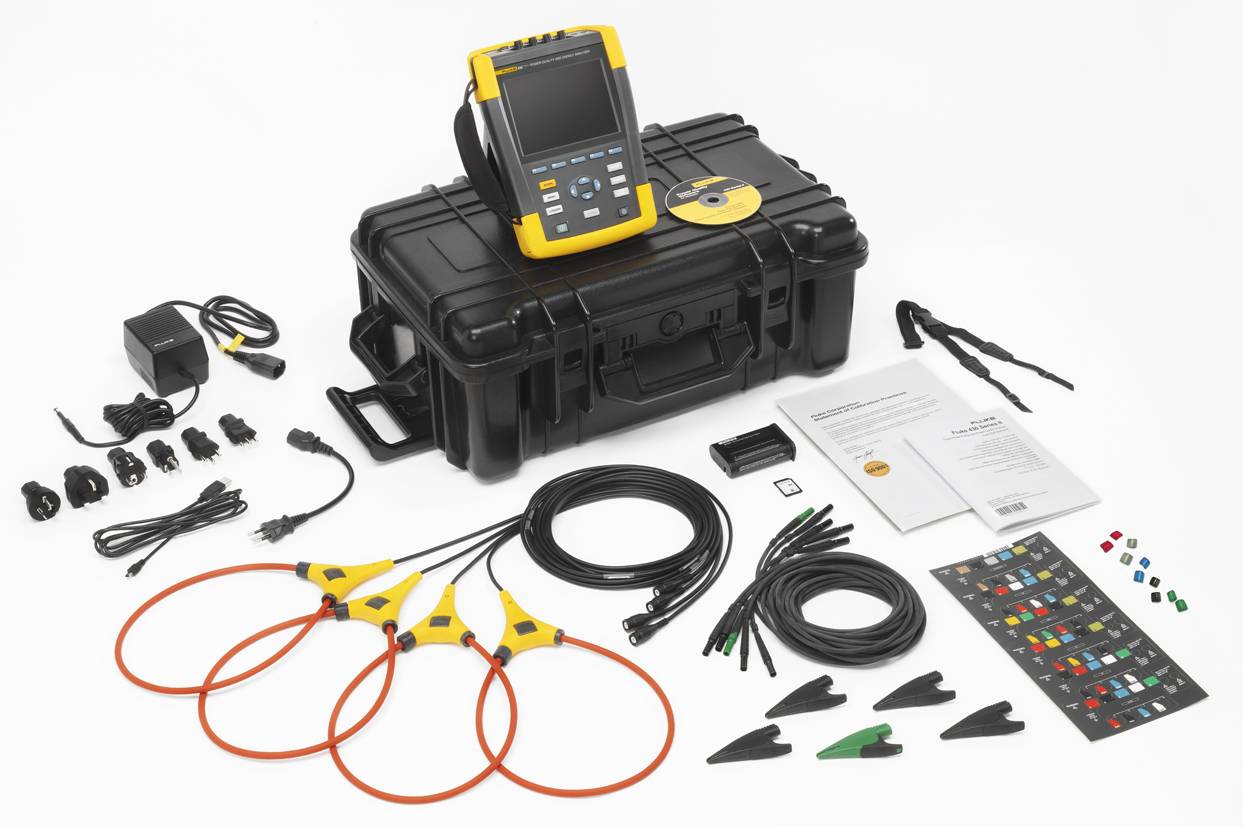

Accesorii standard

  • BC430 Power Adapter
  • International plug adapter set
  • BP290 (Single capacity Li-ion battery) 28 Wh (8 hours or more)
  • TLS430 Test lead and Alligator clip set
  • WC100 color coding clips and regional decals
  • i430flex-TF, 24 inch (61 cm) length, 4 flexible current probes
  • 8 GB SD card
  • PowerLog on CD (includes operator manuals in PDF format)
  • USB cable A - Mini B
  • C1740 Soft Case


Optiuni recomandate

Clips

AC285

AC285 SureGrip™ Alligator Clip Set



Batteries, Chargers and Adapters

BP290

2400 mAh Li-ion battery for Fluke 190-series II

BP291

4800 mAh High capacity Li-ion battery ) for Fluke 190-seriesII

BC430

BC430 Line Voltage Adapter/Battery Charger

EBC290

EBC290 External Battery Charger, charges BP291 while outside instrument



Cables and Hardware

GPS430

GPS430 Time Synchronization Module



Current clamps

90i-610s

90i-610s AC/DC Current Probe (600 A)

i30s

Fluke i30s AC/DC Current Clamp

i1000s

i1000s AC Current Clamp (1000 A)

i200s

i200s AC Current Clamp

i3000s

i3000s AC Current Clamp

i400s

i400s AC Current Clamp

i5sPQ3

i5sPQ3 AC Current Clamp, 3-pack



Options

HH290

Hanging Hook for ScopeMeter 190-Series II



Test Leads

TLS430

TLS430 Test Leads and Alligator Clips set

WC100

WC100 Color Localization Set
