Extech EX570 Multimetru digital portabil cu termometru infrarosu

Cod: Extech EX570




Brosura produs PDF, 0.49 Mb

Descriere

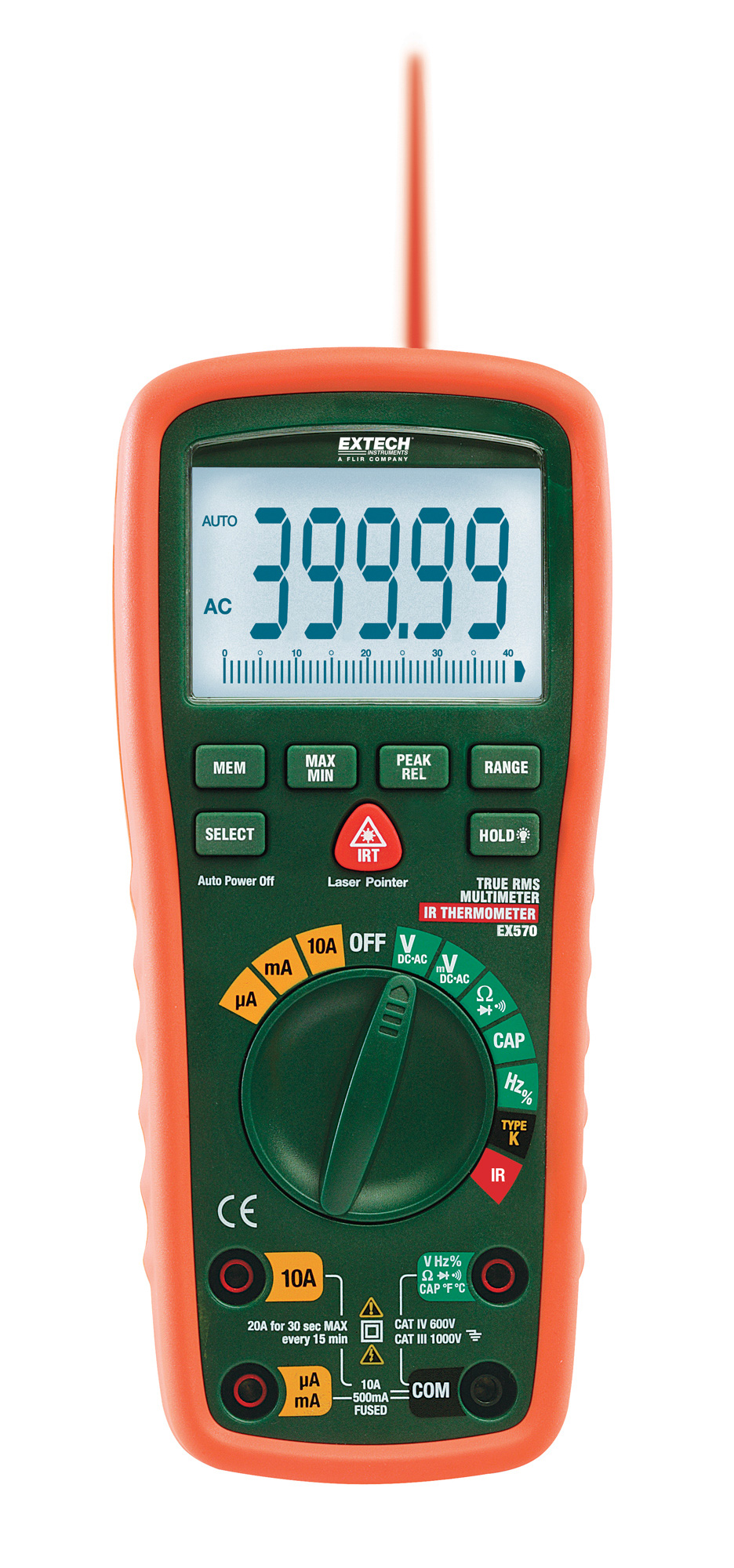

True RMS, autoranging DMM with large digit LCD display and Type-K/IR temperature function

The rugged Extech EX570 is ideal for industrial/plant maintenance and electrical contractors. The affordable EX570 offers advanced multimeter functions, high accuracy (0.06%), True RMS precision plus an integrated infrared thermometer patented by Extech. The EX570 protects users with Category IV-600V and Category III-1000V safety ratings. The EX570 measures voltage, millivolt, current, resistance, capacitance, and frequency plus diode and continuity tests. Added functions include Min. /Max., Average, Hold, Relative, Peak Hold and "quick-note" memory for 3 readings. Thermocouple temperature readings are complemented by an infrared thermometer for safe, non-contact temperature measurement (30:1 distance to spot ratio). Built-in IR simplifies the identification of overheating motors, electrical panels, and other components from a distance and without a separate thermometer. Complete with double-molded test leads, temperature probe, magnetic hanging strap, 9V battery and case.



Features:

  • Built-in Non-contact InfraRed Thermometer with laser pointer
  • True RMS CAT III-1000V, CAT IV-600V rated with 0.06% basic DCV accuracy
  • Heavy duty Double molded, water resistant package
  • Large backlit 40,000 count LCD with 40-segment bargraph
  • Memory for storage and recall of three measurements
  • Type K thermocouple contact temperature measurements
  • Features include HOLD, RELATIVE and PEAK HOLD
  • 1000V input protection on all functions
  • Min, Max and Average recording, Auto power off with disable feature
  • Capacitance, Frequency, Diode and Continuity functions
  • Complete with double molded test leads, magnetic hanging strap, Type K bead wire temperature probe, case, and 9V battery


Alte produse EXTECH

EXTECH EX210T MULTIMETRU DIGITAL TRUERMS CU INFRAROSU

• True RMS for better accuracy when measuring distorted waveforms
• Built-in IR Thermometer with 4:1 distance to target ratio and laser pointer
• 2000 count large backlit dual LCD with easy-to read digits
• Low current capability with resolution to 0.1µA
• Input fuse protection



EXTECH CO100 TESTER CALITATE AER DE BIROU CO2

• Checks for Carbon Dioxide (CO2) concentrations
• Maintenance free NDIR (non-dispersive infrared) CO2 sensor
• Indoor Air Quality displayed in ppm with Good (0 to 800ppm), Normal (800 to 1200ppm), Poor (>1200ppm) indication
• User programmable Visible and Audible CO2 warning alarm



EXTECH CT70 TESTER GFCI SI ANALIZOR CIRCUIT AC

• Selectable loads of 12, 15 and 20 Amps
• Measures loaded and unloaded AC Line Voltage
• Calculates and displays % Voltage Drop and Line Impedance
• Displays Peak Line Voltage and Frequency



EXTECH 380803 ANALIZOR PUTERE CU DATALOGGER

• Built-in Datalogger stores up to 1,012 readings (single record/continuous datalogging)
• Four simultaneous displays of Watts, Power Factor or VA, Voltage or Hz, Amps
• True RMS Voltage & Current measurements of sine, square, triangular and distorted wave forms with a crest factor < 5
• Plug device to be tested directly into the Power Analyzer



EXTECH 382213 SURSA TRIPLA DIGITAL DE TENSIUNE CC

• Adjustable Voltage and Current output
• Easy snap terminals for fixed 5V/0.5A and 12V/1A outputs
• Constant Voltage or Current
• Current limiting indicator



EXTECH RHT35 DATALOGGER USB UMIDITATE TEMPERATURA PRESIUNE BAROMETRICA

• Compact size housing with built-in NTC thermistor, capacitive humidity sensor, and barometric pressure MEMS sensor designed with standard USB connector for easy data downloading to a PC
• 5-digit LCD display with battery life indicator
• User programmable settings: 6 languages, sample rate, start delay time, alarm delay time, high/low alarm range, and security feature
• Status Indication via Red and Green LEDs
• Start button begins continuous datalogging, which continues until memory is full at 48,000 readings (16K for each parameter), or when Stop button is pressed
• Bookmark 8 locations in a data recording log with a press of the Mark button



EXTECH DM110 MINI-MULTIMETRU DE BUZUNAR

• Autoranging with 10 functions including Frequency, Capacitance, and Duty cycle
• Large high contrast 4000 count LCD display
• Auto Power off to conserve battery life
• Autoranging with Relative and Data Hold



EXTECH 380193 RLC-METRU PORTABIL COMPONENTE PASIVE

• Simultaneous 20,000/10,000 count display of the primary parameter (L, C or R)
• Secondary parameter of Q (quality), D (dissipation) or R (resistance)
• Set Hi/Lo limits using absolute values or percentage limits
• Parallel or Series equivalent circuit
• Automatic blown fuse indication
• Built-in test fixture or use external test leads



DINAMOMETRU MASURARE FORTA CU DATALOGGING EXTECH 475040-SD

• Features 5000g, 176 oz. and 49 Newtons measurement capacity
• Large dual backlit LCD with reversible display feature to match viewing angle
• Record data on SD card
• Updates reading every 0.2 seconds and sample rate is 1 second to 9 hours
• Integrated load cell measurement transducer



EXTECH DT100M TELEMETRU LASER

• 2" to 330ft (0.05 to 100m) measurement range
• Automatically calculates Area and Volume
• Indirect measurement using Pythagorean theorem
• Continous mode with min/max function
• Displays Sum (+) / Difference (-) of multiple readings
• Front or rear edge reference
