Dinamometru masurare forta cu Datalogging EXTECH 475040-SD

Cod: EXTECH 475040-SD




Brosura produs PDF, 0.44 Mb

Descriere

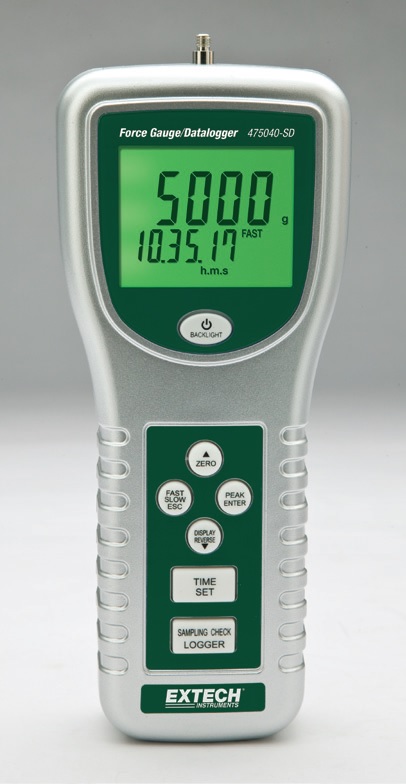

Extech 475040-SD: Digital Force Gauge/Datalogger

Push/Pull measurements in oz, g and Newton units with SD card datalogging

475040-SD Digital Force Gauge/Datalogger date, time stamps and stores up to 2M push/pull readings on an SD card in Excel format for easy transfer to a PC. Featuring a 5 digit LCD display with peak hold. Exclusive load cell measurement transducer. Overrange, low battery and advanced function indicator. 5kg/176oz/49 Newtons measurement capacity. 0.5% basic accuracy with auto power off. Complete with SD card, tension rod, carrying case and 4 adapters (flathead, cone, chisel and hook for tension), and 6 AA batteries.





Digital Force Gauge/Datalogger Features

  • Features 5000g, 176 oz. and 49 Newtons measurement capacity
  • Large dual backlit LCD with reversible display feature to match viewing angle
  • Record data on SD card
  • Updates reading every 0.2 seconds and sample rate is 1 second to 9 hours
  • Integrated load cell measurement transducer
  • Overrange, low battery and advanced function indication
  • Zero Adjust push-button and Peak Hold switch
  • Fast/slow response mode
  • Complete with hook adaptor for tension, compression adaptors (flat, cone and chisel head), 5" extension rod, SD memory card, 6 AA batteries and carrying case
  • Ideal for a wide variety of applications in the electronics, automotive, chemical, plastics and machinery industries





Specifications

475040-SD

Datalogging

 SD memory card for 475040-SD

Range

176oz, 5000g, 49 Newtons

Basic Accuracy (23°C)

±(0.4%)

Resolution

0.05oz, 1g, 0.01 Newtons

Overload capacity

10kg

Update Rate

Fast mode 0.2secs; Slow mode 0.6secs

Full scale deflection

2.00mm

Transducer type

Load cell

Dimensions/ Weight

8.5x3.5x1.8" (215x90x45mm)/ 1.4 lbs (650g)
