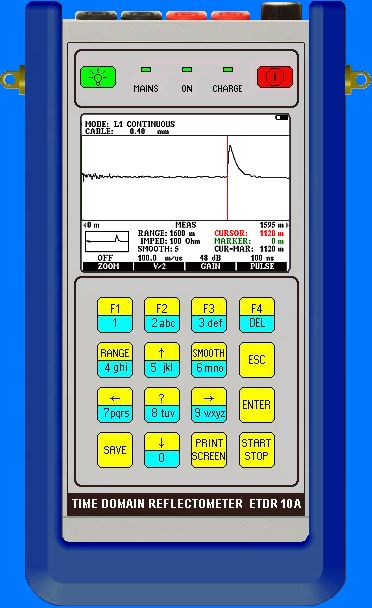

The ETDR 10A-1 has been designed for quick and accurate fault location and qualification of balanced telecommunication cables using impulse reflection technique. The various measuring modes provide accurate location of discontinuities and errors like open circuit, wet section, loose contact etc. Loop Pulsing Device (ES 2002) is available to make the TDR measurements easier when the test object is a branched network. ETDR 10A-1 employs optimized pulsing and sampling methods, supported with advanced filtering and signal processing techniques, to reach the maximum measurement range and clean waveform for easier fault interpretation. ETDR 10A-1 is designed for ease-of-use. If you select the cable type from the on board cable library and set the measurement range covering the length of the cable to be tested, V/2, gain, pulse width, and the distance dependent compensation of cable attenuation are automatically set as default. 3 to 10 ns pulse widths for close-in resolution. Faults as near as 0.5 m from the pedestal can be easily located. Help facility with sample traces and useful topic related information.

Features:

• TDR for balanced cables

• Easy to operate

• Automatic detection of the fault

• Small size, suitable for using in the field at different weather conditions

• Widest range in a hand-held cable fault locator up to 16 km

• Language selectable: English, Italian

• Dual balanced input enables

Examination of live lines

Comparison of two live lines

Difference between two live lines

Location of crosstalk points

Location of intermittent faults

Comparison of live line to memory

Difference between live line and memory

• 100 memories for waveform and setting storage

• Clear waveform display of full trace for accurate diagnosis, 320 x 240 LCD color display with backlight

• Zoom for detailed examination

• Cable library for standard and user defined cable types

• Results can be transferred to PC via USB cable, via WLAN or can be stored on memory stick.

• Internal rechargeable lithium-ion battery
