This self-testing kit comprises of two parts - a Polarity Test Pen™ plus a Test Pen Checker™, which automatically confirms that the pen is working correctly by simulating the electrical field produced by a live conductor. It is designed to give electrical engineers total confidence when looking for live conductors, particularly in bundles of cables and crowded enclosures.

The Polarity Test Pen is calibrated so its light and buzzer will only activate when the tip of the instrument is within 3mm of the live core of a standard conductor

It can therefore discriminate between individual live and non-live conductors and does not need current flow in the live conductor.

Features:

The kit comprises a Polarity Test Pen and a Test Pen Checker, which simulates the electrical field produced by a live conductor to confirm the pen is working.
Pen lights up and buzzes when it detects the electrical field surrounding a live LV insulated conductor
Lights up ONLY within 3mm of the live core of a standard conductor
Works with all standard 220-250V 50/60Hz supplies
Does not require current flow in the live conductor
Rugged construction with pen-style pocket clip
The pen is powered by two AAA batteries
To confirm proper operation of the pen, users simply insert it in the Test Pen Checker.
The Test Pen Checker can be used as a carry case for the Polarity Test Pen.
The Test Pen Checker is supplied with a clip-on lanyard.

Benefits:

Discriminates between live and non-live conductors - even in bundles of cables
More accurate than other standard conductor testers
Self-testing function ensures correct function and operator safety
Self-powered, portable and easy to use
Considered to be essential to operator safety

Alte produse EA TECHNOLOGY

ALVIN LINKSENSE ACTUATOR PROGRAMABIL

• Safe and quick isolation of faults in either (manual or automatic modes)
• Internal temperature monitoring provides additional information within the linkbox environment
• Compatible with all major Link box manufacturers
• Fully sealed IP67

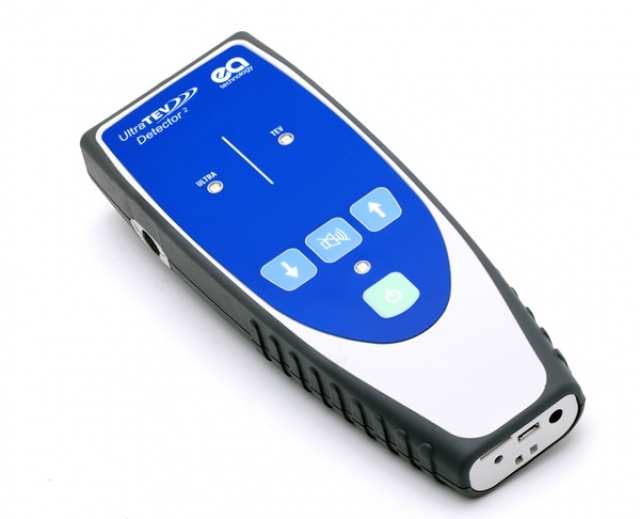

ULTRATEV DETECTOR DESCARCARI PARTIALE IN INSTALATII DULAPURI CELULE ELECTRICE

• Dispozitiv esențial de siguranță personală
• Identifică defecțiunile ÎNAINTE ca acestea să ducă la defecțiuni
• Testează instantaneu activitatea critică a descărcărilor parțiale (PD)
• Detectează activitatea PD la suprafață ȘI la nivel intern
• Necesar minim de instruire
• Cost redus, productivitate ridicată

ULTRATEV MONITOR DESCARCARI PARTIALE

• Provides valuable information on the actual condition of assets
• Enhances the effectiveness of asset management, resulting in lower cost, higher reliability energy networks
• Reduces unplanned outages
• Increases site safety

ALVIN RECLOSEIT

• Low cost equipment
• Low maintenance and lifetime cost
• Improved network performance
• Extended asset life: limited current flow on restart offers less stress on the asset

ULTRATEV LOCATOR DESCARCARE PARTIALA IN SISTEME ELECTRICE ENERGIE

• Dual probes allowing for time-of-flight PD location
• Multi-sensor, multi-function: ultrasonic and TEV, plus temperature, pressure and humidity
• Records the severity of PD for diagnostic analysis
• Multi-mode touch screen for ease of use

CABLEDATA COLLECTOR TESTER DETECTIE SI MASURA ACTIVITATE DESCARCARI PARTIEL PE CABLURI MONO SI TRIFAZATE

• Detects and measures PD activity in single and 3 phase cables
• Works with all insulated cable types
• Expert cable condition analysis and reporting service
• Training available for analysis software purchasers
• Small, robust, portable and easy to use

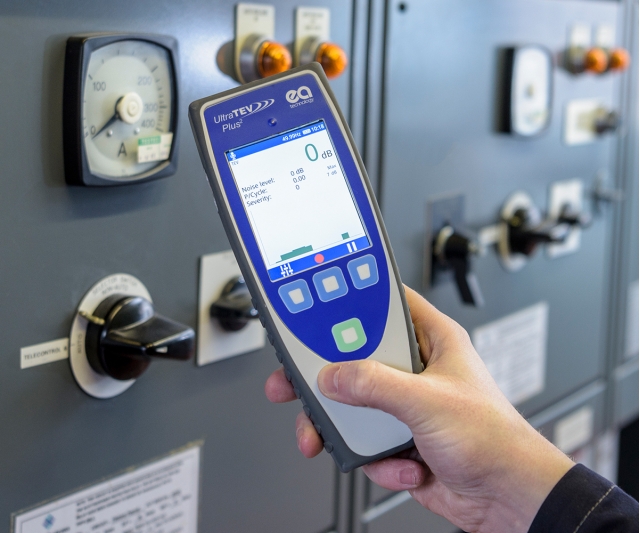

ULTRATEV PLUS DETECTOR DESCARCARI PARTIALE SISTEME SI INSTALATII ELECTRICE, TABLOURI DISTRIBUTIE

• UltraTEV Plus este cel mai avansat instrument de detectare a descărcărilor parțiale (PD) de pe piață
• Ecran tactil color cu iluminare din spate, cu meniu și tastatură (poate fi utilizată purtând mănuși).
• Portabil și robust.
• Compatibil cu toate accesoriile UltraTEV Plus+.
• Baterie internă litiu-ion (Li-Ion) reîncărcabilă, de lungă durată.

PD HAWK ANTENA DIRECTIVA DETECTIE DESCARCARI PARTIALE ELECTRICE ENERGIE

• Uniquely fast & accurate
• Digital antenna
• Safe & easy to use
• Portable & rugged

POLARITY TEST PENS - TESTER POLARITATE CABLURI

• Discriminates between live and non-live conductors - even in bundles of cables
• More accurate than other standard conductor testers
• Self-testing function ensures correct function and operator safety
• Self-powered, portable and easy to use
• Considered to be essential to operator safety

ULTRATEV ALARMA DESCARCARI PARTIALE

• Automatically transmits asset status updates via text or email
• Can be installed permanently or for a temporary survey
• No need for costly outages when installing the UltraTEV Alarm™
• Uses both Ultrasonic and Transient Earth Voltage (TEV) sensors for continuous monitoring
