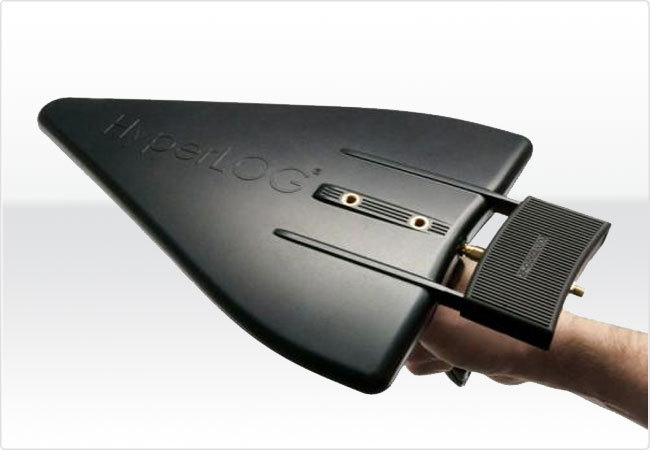

AARONIA DFG7060 Generator de camp RF directional 700MHz..6GHz

Cod: AARONIA DFG7060




Descriere

  • Frequency range: 700MHz to 6GHz
  • Up to 3V/m output power (1m distance)
  • Perfect for RF immunity measurements
  • Perfect for RF attenuation measurements
  • Highest power level: +18dBm
  • Smallest power level: -45dBm
  • Up to 63dB dynamic range
  • Frequency accuracy: 150Hz (<1GHz), 450Hz (<3GHz), 900Hz (<6GHz)
  • Modulations: AM, FM, PM
  • Onboard TCXO for very high frequency accuracy
  • Can be connected to external reference clock for even higher accuracy (female SMA-connector)
  • Onboard CPU and memory for intelligent self-running profiles
  • Stand alone operation (no PC or USB connection required)
  • Battery operation up to 4h
  • USB connector for realtime PC control or for storing programs
  • Incl. 12V power supply for continuous operation
  • Can be operated from 12V Car and Truck power system
  • Dimensions: 340 x 200 x 25mm
  • Small Weight, 400grams incl. battery











Directional Field Generator DFG7060



Portable RF field strength generator DFG7060 with excellent directivity and high output power

The perfect test stations or test transmitter for EMC measurements or the assessment of screening effects (eg shielded rooms or Screen chambers).



Function

The portable, battery-operated field strength generator can be used with simple or complex batch programs that start automatically after power (eg CW signal, sweep, pulse, frequency hopping, etc.). Also, the level can be varied; programmable. A direct control (eg at the laboratory bench) is possible via USB. An appropriate, easy to use software for Mac, Linux and Windows, is included.





Accesorii standard

  • DFG 7060 Field Generator with integrated battery
  • transport case
  • pistol grip
  • International Charger/Power Supply
  • SMA Tool
  • USB-Cable
  • Control Software
