Antena de masura activa banda larga directiva 400MHz..4GHz Aaronia HyperLOG 4040X

Cod: Aaronia HyperLOG 4040X




Brosura produs PDF, 0.51 Mb

Descriere

  • Compatible with any Spectrum Analyzer brand
  • Design: ACTIVE directional Logarithmic-periodic
  • Frequency range: 400MHz to 4GHz
  • Nominal impedance: 50 Ohm
  • VSWR: <1:2 (typ.)
  • Gain: 44dBi (typ.)
  • Antenna factor: See data sheet graph
  • RF connection: SMA (f) or N (see optional adapter)
  • Tripod connection: 1/4"
  • Interface: USB 2.0/1.1
  • Calibration points: 361 (10MHz-steps)
  • Dimensions (L/W/D): 590x360x30 mm
  • Weight: 1400gr
  • Warranty: 10 years



Highlights:

  • Ultra high gain for detecting even lowest RF sources
  • Integrated Low Noise Preamplifier incl. LiPo battery
  • Runs with battery or external power supply (included)
  • Integrated calibration data on EEprom (readout via USB)
  • Additional standard calibration data (on CD)
  • Special designed radome for perfect antenna protection
  • Gold coating for stable performance
  • Wide bandwidth
  • Coverage of various mobile radio frequency ranges
  • Suitable for field-strength and EMC measurements due to high precision
  • Compact and sturdy design
  • Can be used in the lab and for open-field application





Examples for possible analysis and measurements within frequency range (400MHz - 4GHz):

  • ISM434
  • LTE800
  • ISM868
  • GSM900
  • GSM1800
  • GSM1900
  • DECT
  • UMTS
  • WLAN
  • Microwave
  • Bluetooth
  • WiFi
  • LTE2.6
  • WiMAX
  • etc.


Accesorii standard

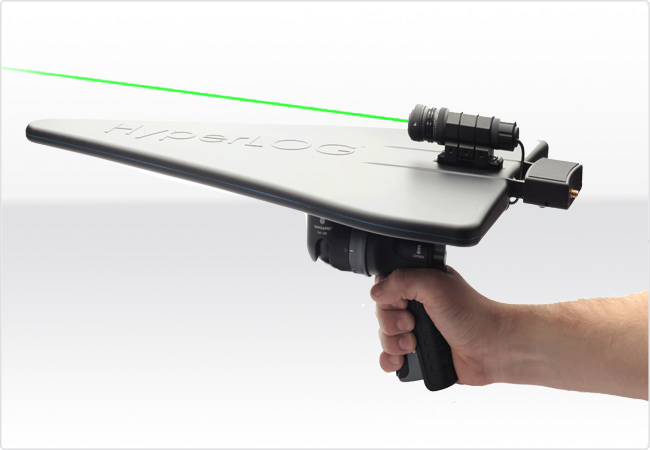

  • HyperLOG 4040 X active directional EMC measurement antenna
  • Low Noise Preamplifier with integrated LiPo battery (3,5h run time)
  • International battery charger and power supply
  • Calibration data on EEprom (readout via USB)
  • Typical calibration data with 361 calibration points (10MHz steps!) on CD
  • Large aluminum carrying case with foam protection
  • Pistol grip with mini tripod function
  • Aaronia SMA tool set with over-torque protection


Alte produse AARONIA

ANALIZOR CAMP MAGNETIC SI ELECTRIC FRECVENTE JOASE 10HZ..10KHZ AARONIA SPECTRAN NF1010E

• Frequency range: 10Hz to 10kHz
• Magnetic field (Tesla): 1pT to 100µT (typ.)
• Magnetic field (Gauss): 100µG to 1G (typ.)
• Electric field: 1V/m to 2.000V/m (typ.)
• Resolution (RBW): 1Hz to 3kHz (1-3-10 step)
• Units: V/m, T, G, A/m
• Interface: USB 2.0/1.1



AARONIA MDF 560 ANTENA MAGNETICA PENTRU URMARIRE CAMP 500KHZ..60MHZ

• Compatible with any Spectrum Analyzer brand
• Design: Loop
• Frequency Range: 500kHz - 60MHz (1MHz - 40MHz with max. +/- 0,3dB deviation)
• Max. input level: 5W (usable as transmitting antenna)
• Conversion factor: 1 (0 dB A/m is 0dBm)
• Impedance: 50 Ohm
• RF connector: SMA (female)



ANTENA TESTARE EMI & EMC HIBRIDA BANDA LARGA 20MHZ..3GHZ AARONIA HYPERLOG 20300

• Compatible with any Spectrum Analyzer brand
• Design: Biconical & Logarithmic-Periodic (combination)
• Frequency range: 20MHz to 3GHz
• Max. input power: 310W AM
• Immunity test field strength:10V/mm
• Nominal impedance: 50 Ohm
• Accuracy: 0,3dB
• VSWR: <2:1 (typ.)
• Gain: 6dBi (typ.)



ANTENA DIRECTIONALA BANDA LARGA 400MHZ..6GHZ AARONIA HYPERLOG 4060

• Compatible with any Spectrum Analyzer brand
• Design: Directional Logarithmic-Periodic
• Frequency range: 400MHz to 6GHz
• Max. input power: 100W AM (400MHz)
• Nominal impedance: 50 Ohm
• VSWR: <1:2 (typ.)
• Gain: 5dBi (typ.)



AARONIA DFG4040 GENERATOR DE CAMP RADIO RF DIRECTIONAL 400MHZ..4.4GHZ

• Frequency range: 400 MHz to 4,4 GHz
• Up to 3V/m output power (1m distance)
• Perfect for RF immunity measurements
• Perfect for RF attenuation measurements
• Highest power level: +17dBm
• Smallest power level: -48dBm


AARONIA BICOLOG XL ANTENA BICONICA ULTRA EMC 20MHZ..1GHZ

• Compatible with any Spectrum Analyzer brand
• Design: Biconical (radial isotropic)
• Frequency range: 20MHz to 1GHz
• Max. out power: 30W
• Nominal impedance: 50 Ohm
• Gain: -26dBi to 1dBi


AARONIA DFG4060 GENERATOR DE CAMP RADIO RF DIRECTIONAL 400MHZ..6GHZ

• Frequency range: 400 MHz to 6 GHz
• Up to 3V/m output power (1m distance)
• Perfect for RF immunity measurements
• Perfect for RF attenuation measurements
• Highest power level: +18dBm
• Smallest power level: -45dBm


AARONIA DFG7060 GENERATOR DE CAMP RF DIRECTIONAL 700MHZ..6GHZ

• Frequency range: 700MHz to 6GHz
• Up to 3V/m output power (1m distance)
• Perfect for RF immunity measurements
• Perfect for RF attenuation measurements
• Highest power level: +18dBm
• Smallest power level: -45dBm


GAUSSMETRU ANALIZA SPECTRU EMI/ EMC 1HZ..30MHZ AARONIA SPECTRAN NF5030

• Frequency range: 1Hz to 1MHz (30MHz)
• Magnetic field (Tesla): 1pT to 2mT (typ.) expandable up to a amount of Tesla with PBS1
• Magnetic field (Gauss): 10µG to 20G (typ.) (only with option 006)
• Only with Option 009, 24bit resolution: 10nG to 20G (typ.) (Gauss)
• Electric field: 0,1V/m to 20kV/m (typ.)
• Resolution (RBW): 0,3Hz to 1MHz (1-3-10 step)
• Units: V, V/m, T, G, A/m



ANALIZOR SPECTRU RADIO-FRECVENTA 10MHZ..6GHZ AARONIA SPECTRAN HF6060

• RF frequency range: 10MHz to 6GHz
• DANL: -135dBm(1Hz)
• DANL with Preamp: -150dBm(1Hz)
• Max. power at RF input: +10dBm
• Lowest sample time: 10mS
• Resolution (RBW): 3kHz to 50MHz
• Units: dBm, dBµV, V/m, A/m, W/m²(dBµV/m, W/cm² etc. via PC software)
• Detectors: RMS, Min/Max
• Demodulator: AM, FM
