AARONIA BPSG4 Generator RF 35MHz..4.4GHz

Cod: AARONIA BPSG4




Brosura produs PDF, 0.68 Mb


Descriere

Technical data

  • Frequency range: 35 MHz to 4,4 GHz
  • Up to +17dBm output power (male SMA-connector)
  • Smallest power level: -48dBm
  • Up to 65dB dynamic range
  • Frequency accuracy: 15Hz (<100MHz), 150Hz
    (<1GHz), 600Hz (<4GHz)
  • Modulations: AM, FM, PM
  • Onboard TCXO for very high frequency accuracy
  • Can be connected to external reference clock for even higher accuracy (female SMA-connector)
  • Onboard CPU and memory for intelligent self-running profiles
  • Stand alone operation (no PC or USB connection required)
  • Battery operation up to 4h
  • USB connector for realtime PC control or for storing programs
  • Incl. 12V power supply for continuous operation
  • Can be operated from 12V Car and Truck power system

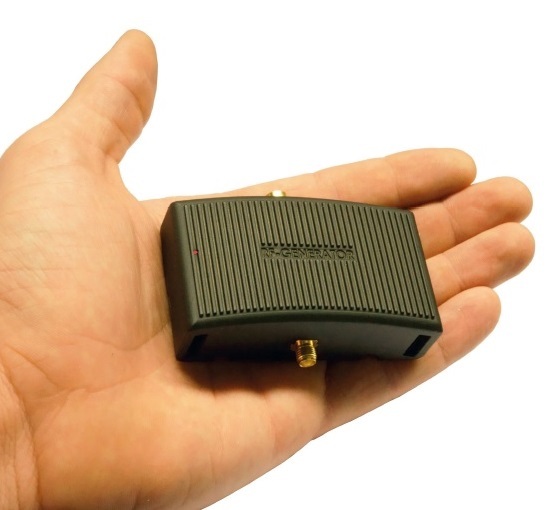

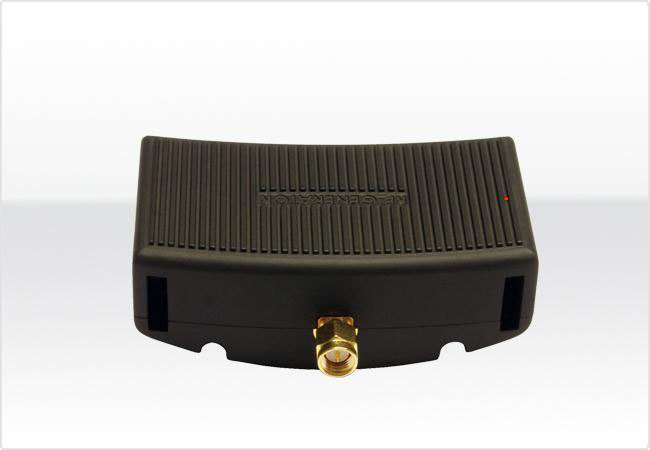

  • Very small form factor, 80x50x30mm only
  • Very lightweight, only 150gr incl. battery





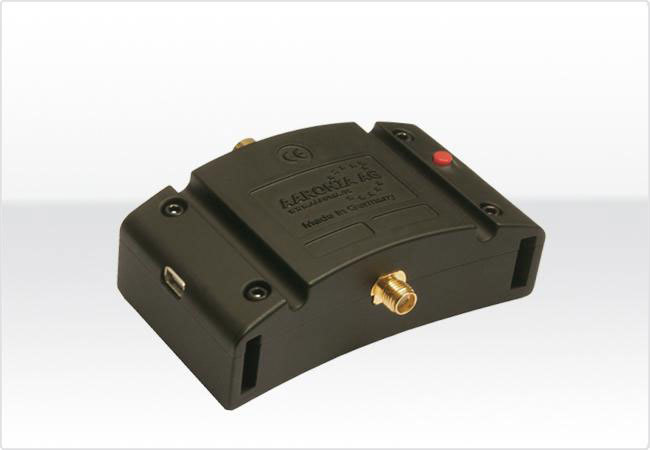

Signal Generator BPSG4



The new signal generator series BPSG from Aaronia offer an unprecedented mix of performance, design and functions, especially in its price category. The extremely high output level of up to +17dBm and the dynamic range of up to 65dB are the strenghts of BPSG4 among others. The BPSG4 offers to freely adjust the frequency (between 35MHz to 4,4GHz) and power level (-48dBm to +17dBm).



Highlights



World smallest battery powered and intelligent stand alone RF generator up to 4,4GHz


Generator can be programmed with simple or very complex batch programs which start automatically after every power on (e.g. generate a fixed frequency and level OR start a specific sweep etc. )



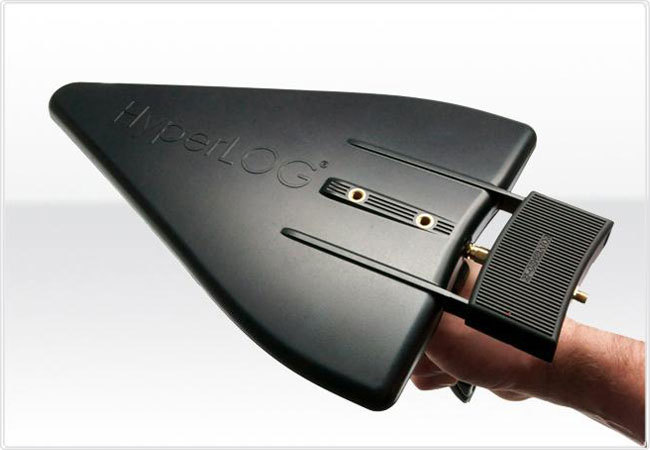

Can be used as mini RF frequency and power level calibrator



 Stable frequency generation, thanks to the internal TCXO timebase



Extremely compact and lightweight (150g)

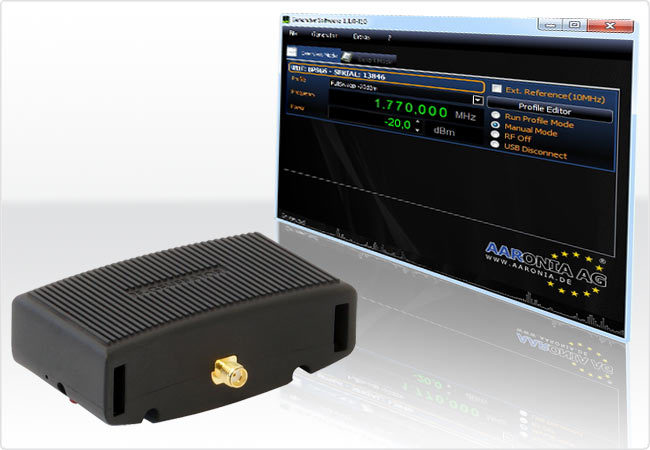

Incl. PC control software



Applications include:

Attenuation tests, EMC - radiated immunity pre-compliance testing, Generating modulations (AM, FM, PM) wireless communications systems, microwave point to point backhaul radios, Software Defined Radio (SDR), radar, Automated Test Equipment (ATE), sweeping and hopping, Scalar Network Analyzers (SNA), complex waveform electronic warfare (EW), Phase Lock Loop (PLL) Synthesizer Design, Local Oscillator (LO) replacement, hobbyist radio development and many more..





Accesorii standard

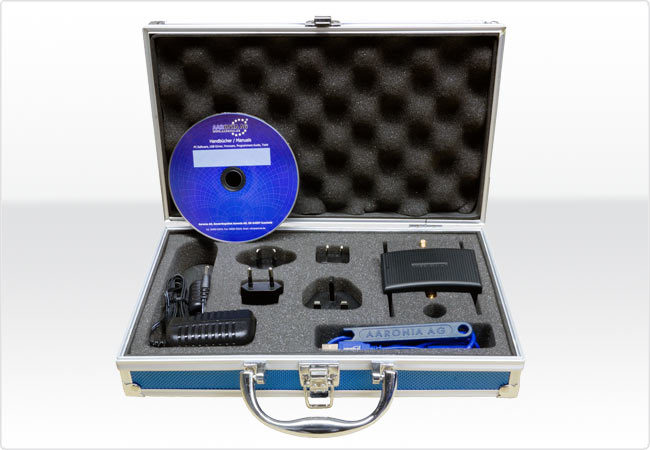

Included in delivery

  • BPSG4 Signal Generator with integrated battery
  • transport case
  • International Charger/Power Supply
  • SMA Tool
  • SMA to SMA adapter (female/female)
  • USB-Cable
  • Control Software
