Seba KMT vCam LSR Sewer pipeline Video Inspection Camera

Code: Seba-KMT vCam-LSR




Datasheet PDF, 0.39 Mb


Description

vCam LSR

The Modular Mini-Inspection System

The vCam LSR camera system is the ideal tool for pipe and cavity inspection.

The LSR camera can be used for day to day heating and plumbing work as well as for drywall inspections and all other areas with no, or limited direct access.

Benefits:

  • Flexibility, allowing multiple uses
  • 3 camera head options
  • Recording of the video via the VIDEO OUT
  • Integrated distance counter and 640 Hz sonde
  • Integrated rechargeables
  • Expandable, with flex rod incorporating 9 or 11 mm diameter camera head





Standard accessories

Scope of supply

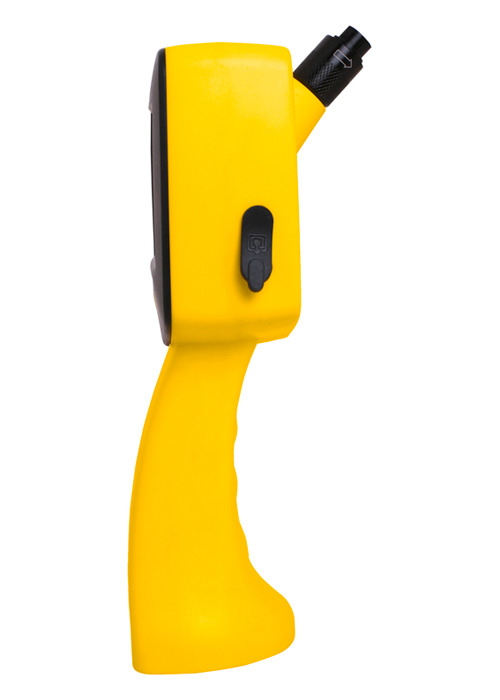

vCam LS display

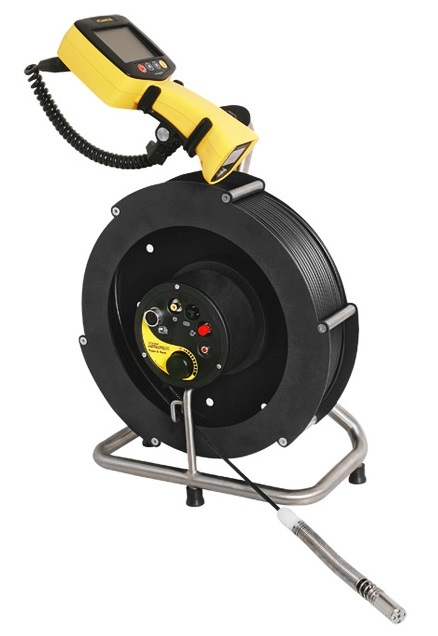

vCam LSR reel with 20 m pushrod cable, 640 Hz

sonde, distance counter and integrated rechargeables

D17 or D25 or D33 camera head

Power supply and system carry bag

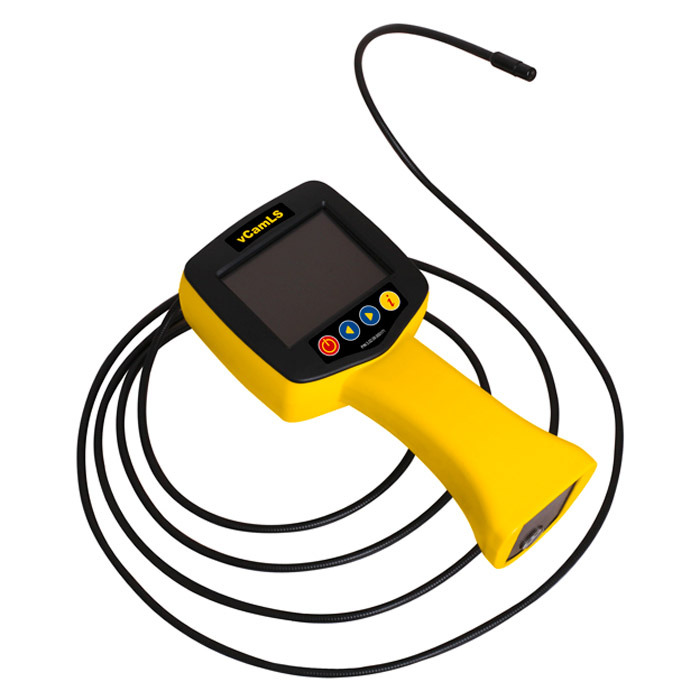

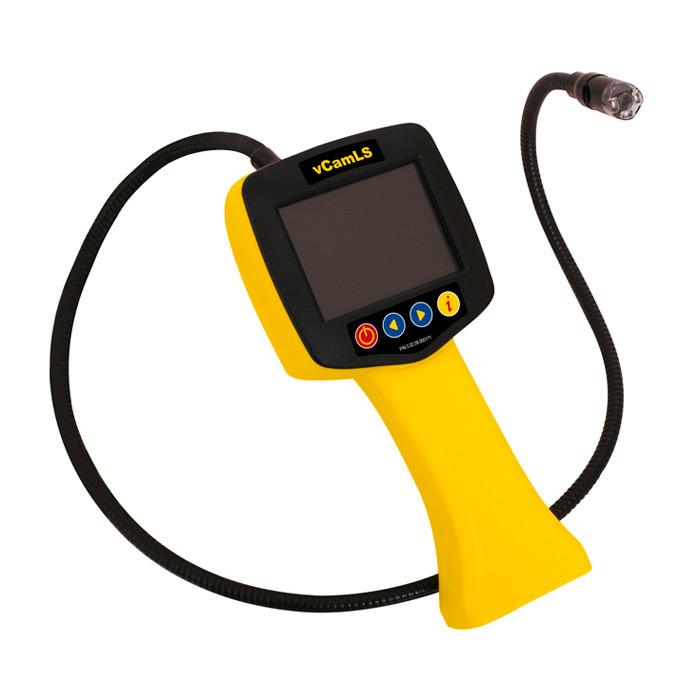

1,5 m Flexrod with 17 mm camera or 2 m Flexrod

with 9 mm camera (NTSC only)

Bag for vCam LS display





Recommended options

Additional accessories

Toolkit (Mirror, Hook, Magnet)
