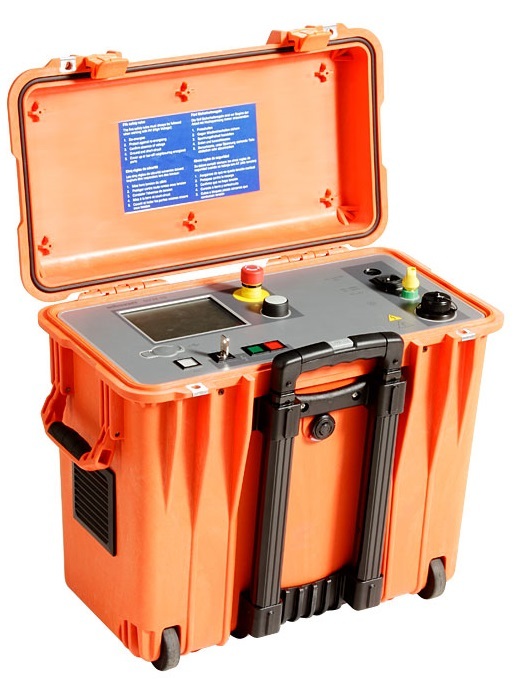

Seba KMT MFM 10 Cable Steath Fault Location System

Code: Seba-KMT MFM10 MFM-10



Datasheet PDF, 0.31 Mb


Description

The sheath fault location system with bi-polar

measuring voltage method - easy, precise and fast



  • Testing, prelocation and pinpointing of sheath faults
  • Voltage up to ±10 kV DC
  • High current of up to 750 mA
  • Only one HV connection cable
  • Automatic measurement and protocolling



Description

The intuitive menu-driven operation of the MFM 10

with fully automatic measurement and evaluation

enables the testing of cable sheaths as well as the

prelocation and pinpointing of cable sheath faults

in the most simple way possible.

The entry of data is done according to the wellproven

SebaKMT rotary encoder principle and is

supported by a touch screen.

The very powerful 10 kV DC source with positive and

negative polarity allows the testing of HV cables.

The bi-polar function ensures the elimination of

external thermoelectric and galvanic influences.

A multi-section facility permits the entry of cable

segments with different parameters.

The available high current of up to 750 mA enables

also the "burning" of difficult cable faults.

Integrated protocolling feature in combination with

the approved Easyprot Software for an easy and

reliable test generation.





All features at a glance

»» Solid IP53 PELI trolley case -

easy handling

»» Wide range input for all supply voltages

»» Powerful rechargeable battery

»» Improved prelocation with voltage drop

method

»» Highest accuracy by bi-polar

measurement

»» I ndependent from the resistance of

supplementary wires and test leads

»» Very fast and fully automatic measurement

»» Detection, storage and indication of fast

events

»» Protocolling by Easyprot Software

»» B urning

»» Slim HV connector and just one cable

»» Detection of correct hook-up to cable

under test

»» Fault locating of high-resistive faults inside

cables

»» I ntegrated discharge

»» Graphical display of voltage and current

»» Detection of multiple faults

»» Very fast pulse rate of 0.5:1 in connection

with the ESG NT



Standard accessories

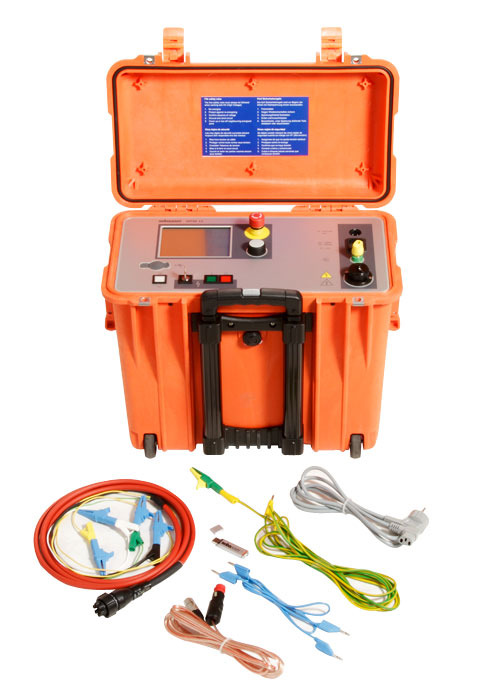

Scope of delivery

»» MFM 10

»» Set of connection cables

»» USB stick with Easyprot Software

»» Accessory bag



Recommended options

Options

»» 19‘‘ version for vehicle installation

(no battery)

»» ESG NT earth fault probe for DC step

voltage

»» 10 m HV connection cable

»» Connection clamps for large terminals

»» Audio frequency option
