Seba Surgeflex SFX-15 SFX-25 Cable Fault Locating System

Code: Seba-KMT Surgeflex SFX-15 SFX-25

Datasheet

PDF, 0.29 Mb

Description

Surgeflex 15 and 25

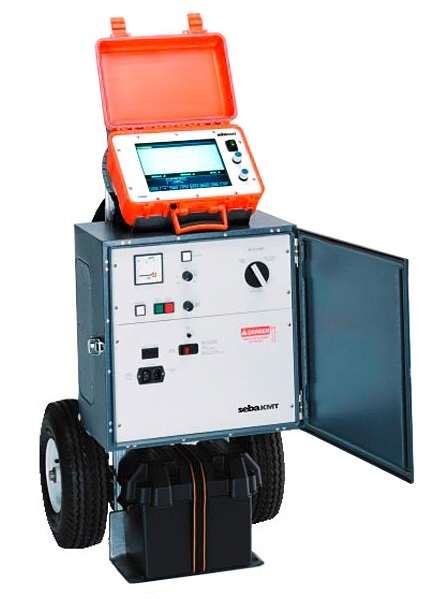

The Surgeflex 15 and 25 cable fault location systems with their 1150 J surge energy provide a standard solution for portable systems.

The basic system comes already fully equipped with integrated battery, inverter/charger and is mounted on an easy to move trolley. For a fixed vehicle mounting, the systems are also available without trolley and internal battery system.

For high flexibility, the systems are equipped with a separately mounted reflectometer, the T 30-E. With the ARM Arc Reflection Method, a powerful tool for the fault location, especially for high resistive faults is available.

Key benefits:

Easiest operation
ARM and ICE integrated
Very compact and rugged design
Battery operation up to 4 hours
Weather proof stainless steel housing

Complete fault locating system with:

» DC-Testing up to 15 kV / 25 kV (depending on model)

» Prelocating

» - Reflection measurement

» - ARM-Measurement (Arc reflection method)

» - ICE Impulse current method

» Cable tracing (optional)

» Pin-pointing

» - Distance and acoustic measurement

» - Audio frequency methods (optional)

» Battery and mains operation

Standard accessories

Scope of delivery

» Test and surge generator

» System frame on wheels

» Teleflex SX

» Integrated rechargeable battery and charger

» Operating manual

» Set of connecting cables

Recommended options

Options / accessories

» Pinpointing receiver digiPHONE+

» Audio frequency cable tracer and fault locator

Ferrolux

» Vehicle installation version without battery, inverter and trolley
