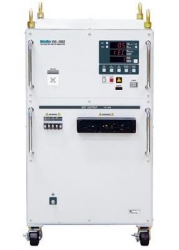

Pulse 1, 2a Generator Automotive Transient Surge Simulator NoiseKen ISS-7610

• ESS-B3011 : 0.2 to 30.0kV
• ESS-L1611 : 0.2 to 16.0kV
• EN/IEC 61000-4-2 Ed2 Compliant (B3011/L1611)
• ISO 10605 Ed2 Compliant (B3011/L1611)
• 3 pre-checking function taking the confirmable test into the account (B3011/L1611)
• Discharge detecting function to realize the air-discharge confirmation (B3011/L1611)
• Lightest Discharge Gun in the market to lighten the continuous operation (GT-30R)



• ESS-6002 Output voltage: 10V ~2.0kV ±10% (1V step)
• ESS-6008 Output voltage: 100V ~ 8.0 kV±10% (10V step)
• A simple probe stand and test fixture plus a pair of miniature test leads
• Narrow pitch DUT can be tested in semi-automatic manner
• Each probe has a coaxial interface with an external measuring instrument.



• "Output voltage 15kV, current 7500A" which can conduct breakdown resistibility test
• "50% reduction of the output interval" which can drastically reduce the test time
• "Touch-panel" adopted for the easy test setting
• "Multi-languages" for the easy operation processing available
• "Indicator" which is linked with the test setting equipped
• PC control available with the optional software
• "Emergency stop" & "Interlock terminal" which secure the test operator equipped



• Pulse 1 and Pulse 2a generating unit
• A built-in 60V/30A Coupling Network allows independent operation.
• Wide variety of selections of the output resistances Ri and Pulse Widths td and their combinations

• VDS-1007 : 1kVA Power
• VDS-2007 : 2kVA Power
• Enable to enrich EMC preliminary tests with the remote control as an AC stabilizing power source
• Enable IEC61000-4-11/13/14/28 precompliant tests
• Usable to be power source for IEC61000-3-2-2 precompliant measurement



• Provides an amplitude versus frequency plot for each antenna probe position and field intensity distribution map by a single scan
• Electric and magnetic fields are separately detected
• 3D graphical representation and zoom capability for a given area
• Comparison before and after a modification or improvement
• Scanning by a single antenna probe to minimize error between each measurement point
• 3GHz maximum frequency response (option)
• Standard included three kinds of antenna probes (Probe A, Probe B and Probe C)



• Pulse 3a and Pulse 3b generating unit
• A built-in 60V/30A Coupling Network allows independent operation.
• <3.5ns rise time pulse available
• Runs in pulse repetition frequencies sweep mode from 1 kHz to 100 kHz (ISS-7601 software required)

• Conforming to IEC 61000-4-11
• Fully compliant with all the test generator requirements of IEC standard.
• One unit solution for dip, swell, interruption and variation tests up to 16A 290V single phase AC
• Interruption test up to 16A 125V DC (*)
• Two motor-driven transformers approach enables switching between any voltages (*)
• Preset IEC test levels 0%/40%/70%/80% plus additional 120%



• Measurable up to 8GHz in the frequency range
• 4 axes (X, Y, Z, ?) measurements with minute step minimum 0.1m realized
• Equivalent distance measurement to parts on PCBs even the heights are different
• Composite figure of photo of the measured PCB and the measurement data realized
• Rich magnetic field probes in the figures, sizes and Vertical/Horizontal directions
• Versatile display for the measurement data as 2 dimensions, 3 dimension, and equiangular line realized



• INS-4020 (2kV) : 0.01 ~ 2.00KV ±10% with 50 ohm load, 10V step
• INS-4040(4kV) : 0.01 ~ 4.00KV ±10% with 50 ohm load, 10V step
• Automatic ramp operation for output voltage, phase angle and repetition period
• Floating output
• Coupling mode selection by plugging the supplied coaxial connector to the selected port
• Easily changeable mercury relay unit
