Source-Voltage Dip and Swell Simulator NoiseKen VDS-1007/ 2007

Code: NoiseKen VDS-1007/ 2007




Datasheet PDF, 1.03 Mb


Description

  • VDS-1007 : 1kVA Power
  • VDS-2007 : 2kVA Power
  • Enable to enrich EMC preliminary tests with the remote control as an AC stabilizing power source in the stand-alone
  • Enable IEC61000-4-11/13/14/28 precompliant tests
  • Usable to be power source for IEC61000-3-2-2 precompliant measurement

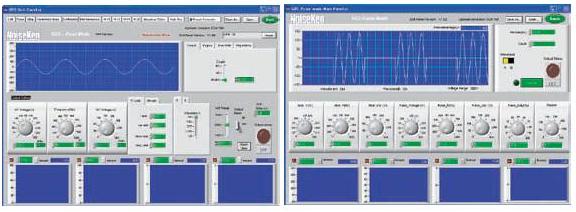

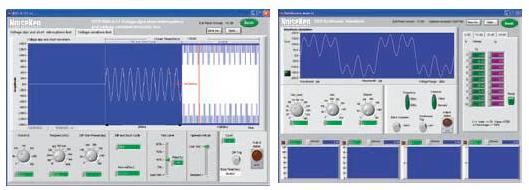

  • Enable to put out arbitrary waveforms and measure harmonics using the software (downloadable via our website)





SPECIFICATIONS



VDS-1007



Items

VDS-1007 specifications

Range

150V

300V

150V

300V

Output current capability

AC 0 to 150V

AC 0 to 300V

DC 0 to 212V

DC 0 to 424V

Load regulated output voltage variation

0.2%

Voltage set resolution

0.1V

Output current capability

AC8Arms

AC4Arms

DC 4A

DC 2A

Max. output current capability (Instant)

48Apeak

24Apeak

48Apeak

24Apeak

Frequency range

DC 15 Hz to 1 kHz, 0.01Hz step, +/-0.15%

Rise time / Fall time (at interruption)

130 µsec (typ)

Voltage distortion

0.3% (50/60Hz)

Line / Load regulation

0.1 % (line)/ 0.2% (load)

Output impedance

Settable value: 0.0?+0.0mH to 1.0?+1.0mH

0.01? step, 0.01mH step

Phase angle setting

0 to 359.9° DEG, 0.1° DEG step

 Arbitrary waveform output, waveform library

50/60Hz up to 40th order

 External analog input up to 30 kinds.

Measurement function

11 kinds (Voltage, current, power, harmonics, power-factor, crest factor, apparent power, reactive power)

IEC Standards precompliant testing function

AC source for IEC 61000-4-11, 4-13, 4-14, 4-28 and IEC 61000-3-2, 3-3

 Dip / Swell level

0%, 40%, 70%, 80% (0 to 32767%, 1% step (arbitrary))

within max. output voltage range

Repetition

1 to 65535 times, 1 step

Dip phase

0 to 359.9 deg, 0.1 deg step

Dip cycle

0 to 9999999 cycle, 0.1 cycle step

Interval cycle

0 to 9999999 sec., 0.0001 sec step

Voltage variation test

  • Fall set: 0 to 100000 cycle, 1 cycle step
  • Voltage hold set: 1 to 32767 cycle, 1 cycle step
  • Rise set: 0 to 32767 cycle, 1 cycle step
  • Repetition: 1 to 32767 times

Others

  • 3-phase output by 3 units parallel connection
  • Capacity increase by 2 units parallel connection.
  • Silence realizing design along load condition
  • Over voltage/over current/over power protection.

Power supply

AC90 to 250V, 15A max., 47 to 63 Hz

Interface

GPIB, RS232

Operating temperature

15°C to 35°C

Humidity range

25% to 75% (without dew)

Dimensions / Mass

(W)438 x (H)134 x (D)610mm,  19.5kg

Included accessory

  • Captive cable 1 pc.
  • Rear-foot
  • Instruction manual
  • Control software (downloadable via our website)





VDS-2007



Items

VDS-2007 specifications

Range

150V

300V

150V

300V

Output current capability

AC 0 to 150V

AC 0 to 300V

DC 0 to 212V

DC 0 to 424V

Load regulated output voltage variation

0.2%

Voltage set resolution

0.1V

Output current capability

AC16Arms

AC8Arms

DC 8A

DC 4A

Max. output current capability (Instant)

96Apeak

48Apeak

96Apeak

48Apeak

Frequency range

DC 15 Hz to 1 kHz, 0.01Hz step, +/-0.15%

Rise time / Fall time (at interruption)

130 µsec (typ)

Voltage distortion

0.3% (50/60Hz)

Line / Load regulation

0.1 % (line)/ 0.2% (load)

Output impedance

Settable value: 0.0?+0.0mH to 1.0?+1.0mH

0.01? step, 0.01mH step

Phase angle setting

0 to 359.9° DEG, 0.1° DEG step

Arbitrary waveform output, waveform library

50/60Hz up to 40th order

 External analog input up to 30 kinds.

Measurement function

11 kinds (Voltage, current, power, harmonics, power-factor, crest factor, apparent power, reactive power)

IEC Standards precompliant testing function

AC source for IEC 61000-4-11, 4-13, 4-14, 4-28 and IEC 61000-3-2, 3-3

 Dip / Swell level

0%, 40%, 70%, 80% (0 to 32767%, 1% step (arbitrary))

within max. output voltage range

Repetition

1 to 65535 times, 1 step

Dip phase

0 to 359.9 deg, 0.1 deg step

Dip cycle

0 to 9999999 cycle, 0.1 cycle step

Interval cycle

0 to 9999999 sec., 0.0001 sec step

Voltage variation test

  • Fall set: 0 to 100000 cycle, 1 cycle step
  • Voltage hold set: 1 to 32767 cycle, 1 cycle step
  • Rise set: 0 to 32767 cycle, 1 cycle step
  • Repetition: 1 to 32767 times

Others

  • 3-phase output by 3 units parallel connection
  • Capacity increase by 2 units parallel connection.
  • Silence realizing design along load condition
  • Over voltage/over current/over power protection.

Power supply

AC90 to 250V, 28A max., 47 to 63 Hz

Interface
