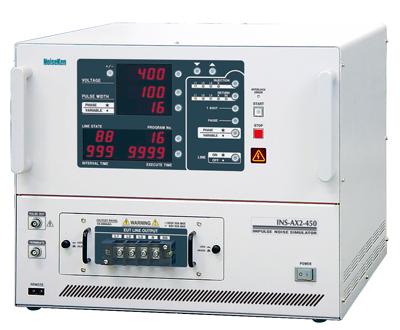

Impulse Noise Simulator EMC Testing NoiseKen INS-AX2

Code: NoiseKen INS-AX2



Datasheet PDF, 2.93 Mb


Description

The INS-AX2 series simulators are the advanced version of the conventional manually operated INS-4020/4040 simulators, maintaining the identical interference signal characteristics while offering a new level of ease of use.





  • INS-AX2-220/250 : 0.01 ~ 2.00kV±10% at 0.01kV step Pulse output voltage
  • INS-AX2-420/450 : 0.01 ~ 4.00kV±10% at 0.01kV step Pulse output voltage
  • An innovative,motor driven coaxial switch mechanism eliminates the need to manually plug and unplug coaxial connectors, allowing a preset test sequence to be carried out seamlessly including pulse width and coupling mode changes, automatic voltage ramp and others.
  • As well as manual control, the simulator can be remote-controlled through a fiber optic computer interface. A Windows control software package is supplied as an included accessory.
  • Floating output
  • 8 pulse widths installed: 10ns, 50ns, 100ns, 200ns, 400ns, 500ns, 800ns and 1000ns
  • Internal switchable terminators
  • Easily changeable and safety-interlocked outlet panel (EUT interface)
  • 3 channels EUT fail input





SPECIFICATIONS



Item

Model

INS-AX2-220/250

INS-AX2-420/450

Pulse output voltage

0.01 ~ 2.00kV±10% at 0.01kV step

0.01 ~ 4.00kV±10% at 0.01kV step

±0.04kV allowance for <0.1kV setting
When the output is terminated by the internal resistors.

Output polarity

Positive or negative

Pulse

Pulse width

50, 100, 200, 400, 500, 800, 1000ns ±10%, 10ns±3ns

Rise time

<1ns

Output impedance

50 ohm system (53.5 ohm)

Pulse repetition mode

Variable

10ms ~ 999ms±10%

16ms ~ 999ms±10%

Phase

Injection phase angle 0 to 360 degrees±10 degrees
EUT power supply:>AC90V, 50/60Hz±10%

1 shot

Single pulse generation, each time the 1 SHOT button is pressed.
Synchronized output with phase angle setting in PHASE mode

Power capacity of EUT

INS-AX2-220:
Single phase AC240V/DC65V 20A
INS-AX2-250:
3-phase (4-wire) AC500V/DC250V 50A
50/60Hz±10%

NS-AX2-420:
Single phase AC240V/DC65V 20A
INS-AX2-450:
3-phase (4-wire) AC500V/DC250V 50A
50/60Hz±10%

Power supply

AC 100V~240V±10%, 50/60Hz±10%

Power consumption

110VA

Operating temperature and humidity range

15 ~ 35°C, 25 ~ 75% (No dewing shall occur.)

Dimensions

W 430 x H 350 x D 470mm, projection excluded

Weight

INS-AX2-220: Approx. 30Kg
INS-AX2-250: Approx. 38Kg


INS-AX2-420: Approx. 30Kg
INS-AX2-450: Approx. 38Kg

Mercury relay unit

Model: 04-00014A

Model: 04-00015A



Standard accessories

STANDARD ACCESSORIES



INS-AX2-220/420

INS-AX2-250/450

Outlet panel (Single phase terminal block type) Model:18-00067A AC240VDV65V20A max

Outlet panel (3-phase terminal block type) Model:18-00068A AC500VDV250V50A max

Power cable
Remote control software (CD-ROM) Model: 14-00033A
Optic-RS232C converter Model 07-00017A
Optical cable (5m)
D-sub conversion connector
Instruction manual (for the simulator and remote control software)



Recommended options

TRIANGULAR PULSE ADDITION (Factory Option)



Parameters
Specifications
Output pulse waveform
Triangular pulse
Pulse output voltage
2kV (220/250) and 4kV (420/450) max (when the output is terminated by the internal resistors)
Output polarity
 Positive or negative
Pulse
Duration
1µs±30%
Rise time
<40 ns
