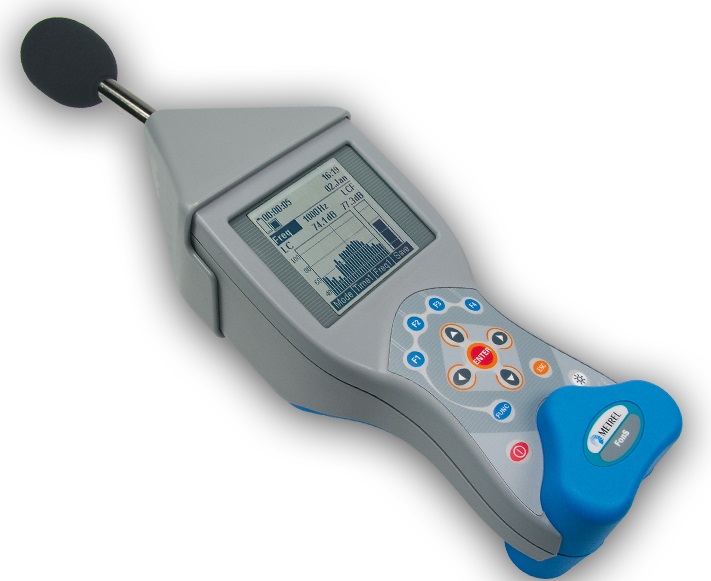

Metrel MI6301 FONS Class 1 and Class 2 Sound Level Meter Digital Professional
OBSOLET PRODUCT ( * OUT OF USE )

Code: Metrel MI6301 MI-6301 FONS MI6301EU MI6301PR



Datasheet PDF, 5.49 Mb


Description

Completely digitalised Class 1 (Pro Set) or Class 2 (Euro Set) sound level meter with two independent measuring channels compliant with IEC 61672 standard. FonS is also a real-time octave and one third octave frequency analyser compliant with IEC 61260 standard.



MEASURING FUNCTIONS

  • Completely digitalised Class 1 (Pro Set) or Class 2 (Euro Set) sound level meter with two independent measuring channels compliant with IEC 61672 standard. Each channel can be set to a different time and frequency weighting.
  • Real-time octave and one third octave frequency analyser compliant with IEC 61260 standard. Operates in two modes: an on-line reading mode which displays current measurements and logger mode, which automatically stores all measurement values per logging interval.



OTHER FUNCTIONS

  • LXY, a time weighted sound level;
  • LXeq, a time average sound level, or equivalent continuous sound level;
  • LXYmax, a maximum time weighted sound level;
  • LXYmin, a minimum time weighted sound level;
  • LXpeak, a peak sound level;
  • LXE, a sound exposure level;
  • L%, a percentile sound pressure level.

Letter X stands for A, C or Z frequency weighting, Y for fast, slow or impulse time weighting - applicable to both first and second measuring channels



ADDITIONAL FEATURES

A windscreen and a sound shield facilitate the outdoor measurements by reducing the wind noise and/or give a protection against the dust or other small particles often found in the air of harsh industrial environments.



SOFTWARE

SoundLink LITE PC software is used to download, review and export saved and logged data to other spreadsheet software applications. Optional frequency analysis PC software SoundLink PRO is used for data analyses, charting and reporting.



TECHNICAL DATA

Dimensions (w x h x l): 220 x 115 x 90 mm

Mass (without accessories): 0.70



Standard accessories

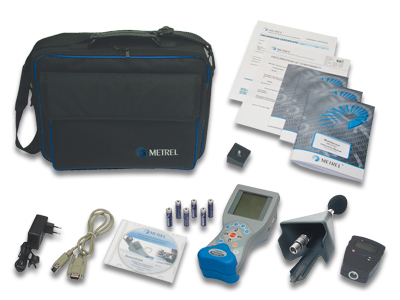

MI 6301 Euro set MI 6301 EU

  • Instrument FonS
  • Carrying case
  • Sound probe, class 2 (A 1151), with foam windscreen
  • Plastic shield for microphone
  • Tripod adapter
  • USB cable
  • Power supply adapter
  • 6 x NiMH rechargeable batteries, type AA
  • PC SW SoundLink LITE
  • Instruction manual
  • Calibration certificate
  • ISO calibration certificate for complete system

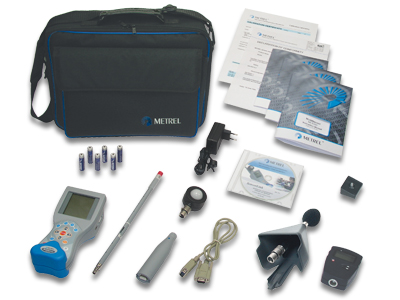

MI 6301 Pro set MI 6301 PR

  • Instrument FonS
  • Carrying case
  • Sound probe, class 1 (A 1146), with foam windscreen
  • Plastic shield for microphone
  • Tripod adapter
  • USB cable
  • Power supply adapter
  • 6 x NiMH rechargeable batteries, type AA
  • PC SW SoundLink LITE
  • Instruction manual
  • Calibration certificate
  • ISO calibration certificate for complete system
