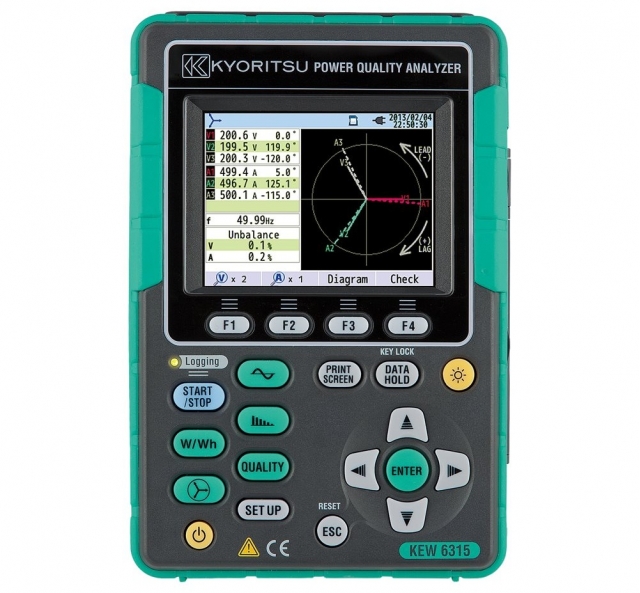

KYORITSU KEW6315 Three-phase power meter analyzer

Code: KEW-6315 KEW6315



Datasheet PDF, 3.92 Mb


Description

  • Simultaneous Power & Power quality measurements
  • Power/Harmonics/Waveform/Power quality are recorded at all CHs
  • (Voltage:3ch,Current 4ch)
  • Helpful support functions
  • Quick Start Guide,Wiring check and Sensor detection for easy and reliable measurement
  • Measurement with high accuracy
  • Guaranteed accuracy: ±0.3%rdg(energy),
  • 　　　　　　　　　　 ±0.2%rdg(voltage/current)
  • Complies with the International Standard
  • IEC 61000-4-30 Class S and the European Standard EN50160
  • Energy consumption check on site
  • Trend and demand graphs for easy recognition
  • TFT color display with high resolution
  • IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V / CAT Ⅱ 1000V

KEW Smart 6315

Free Android software "KEW Smart 6315" is available on "Google Play Store"
Please search "KEW Smart" in Google Play Store.
Communication charge may be incurred separately to download application.

Get it on Google Play

Supporting Android Ver. 9 to 16
WVGA (800 × 480) resolution or higher

Specification
Power Quality Analyzer
Wiring connections1P2W, 1P3W, 3P3W, 3P4W
Measurements and parametersVoltage, Current, Frequency, Active power, Reactive power, Apparent power,Active energy, Reactive energy, Apparent energy, Power factor (cos θ),
Neutral current, Demand, Harmonics, Quality (Swell/Dip/Interruption, Transients/Over voltage, Inrush current, Unbalance rate),
Capacitance calculation for PF correction unit, Flicker
Voltage (RMS)
Range600.0 / 1000V
Accuracy600.0V Range : (sine wave 40 to 70Hz)
　10% to 150% against 100V or more of nominal V : Nominal V±0.5%
　Out of above range : ±0.2%rdg±0.2%f.s.
1000V Range : ±0.2%rdg±0.2%f.s.(sine wave 40 to 70Hz)
Allowable input1 to 120% of each range (rms). 200% of each range (peak)
Display range0.15 to 130% of each range
Crest factor3 or less
Sampling speed of Voltage transient24µs
Current (RMS)
Range8128/8135 ( 50A type ) : 5000mA / 50.00A / AUTO
8127 ( 100A type ) : 10.00 / 100.0A / AUTO
8126 ( 200A type ) : 20.00 / 200.0A / AUTO
8125 ( 500A type ) : 50.00 / 500.0A / AUTO
8124/8130 ( 1000A type ) : 100.0 / 1000A / AUTO
8146/8147/8148 ( 10A type ) : 1000mA / 10.00A / AUTO
8133 ( 3000A type ) : 300.0 / 3000A / AUTO
Accuracy±0.2%rdg±0.2%f.s. + accuracy of clamp sensor (sine wave, 40 to 70Hz)
Allowable input1 to 110% of each range (rms). 200% of each range (peak)
Display range0.15 to 130% of each range
Crest factor3 or less
Active power
Accuracy±0.3%rdg±0.2%f.s. + accuracy of clamp sensor
(power factor 1, sine wave, 40 to 70Hz)
Influence of power factor±1.0%rdg (reading at power factor 0.5 against power factor 1)
Frequency meter range40 to 70Hz
Power supply (AC Line)AC100 to 240V / 50 to 60Hz / 7VA max
Power supply (DC battery)Alcaline size AA battery LR6 or Ni-MH (HR-15-51) × 6
Battery life approx. 3h (LR6, Backlight OFF)
Internal memoryFLASH memory (4MB)
PC card interfaceSD card (2GB)
Communication interfaceUSB, Bluetooth® 5.0
Display320 × 240 (RGB) Pixel, 3.5inch color TFT display
Display update period1 sec
Applicable standardsIEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V / CAT Ⅱ 1000V Pollution degree 2, IEC 61010-2-030, IEC 61010-031,
IEC 61326, EN 50160 IEC 61000-4-30 Class S, IEC 61000-4-15, IEC 61000-4-7
Temperature and humidity range23±5ºC, less than 85% RH (without condensation)
Operating temperature and humidity range0 to +45ºC, less than 85% RH (without condensation)
Storage temperature and humidity range-20 to +60ºC, less than 85% RH (without condensation)
Power supply (AC Line)AC100 to 240V / 50 to 60Hz / 7VA max
Power supply (DC battery)Alcaline size AA battery LR6 or Ni-MH (HR-15-51) × 6
Battery life approx. 3h (LR6, Backlight OFF)
Dimension175(L) × 120(W) × 68(D) mm
WeightApprox. 900g
Accessories7141B (Voltage test lead set)
7170(Power cord[EU]) or 7240(Power cord[UK])
7219 (USB cable)
8326-02 (SD card [2GB])
9125 (Carrying case)
Input terminal plate × 6,  Quick manual, LR6× 6
Optional Accessories8124/8125/8126/8127/8128 (Load current Clamp Sensor)
8130/8133(*)/8135(*) (Flexible clamp sensor)
8146/8147/8148 (Leakage and Load current clamp sensor)
8312 (Power supply adapter)
9132 (Magnetic carrying case)
Please download "KEW Windows for KEW 6315(software)” from here.

* The KEW 6315 can be used with firmware versions V1.50 or later for the KEW 8133 and V3.00 or later for the KEW 8135.
   Please check here for the latest firmware.

Video Youtube KYORITSU KEW6315











Standard accessories

Sets available

*Included accessories for below models are same with above-mentioned.

KEW 6315-01
8125 (500A: φ40mm) × 3
Carrying case: 9125

KEW 6315-03
8130 (1000A : φ110mm) × 3
Carrying case: 9135
KEW 6315-04
8130 (1000A : φ110mm) × 4
Carrying case: 9135

KEW 6315-05
8133 (3000A : φ170mm) × 3
Carrying case: 9135

Included accesories with each set:
7141B (Voltage test lead set)
7170(Power cord[EU]) or 7240(Power cord[UK])
7219 (USB cable)
8326-02 (SD card [2GB])
9125 (Carrying case)
Input terminal plate × 6,  Quick manual, LR6× 6





Recommended options


8124/8125/8126/8127/8128 (Load current Clamp Sensor)
8130/8133(*)/8135(*) (Flexible clamp sensor)
8146/8147/8148 (Leakage and Load current clamp sensor)
8312 (Power supply adapter)
9132 (Magnetic carrying case)



More products KYORITSU

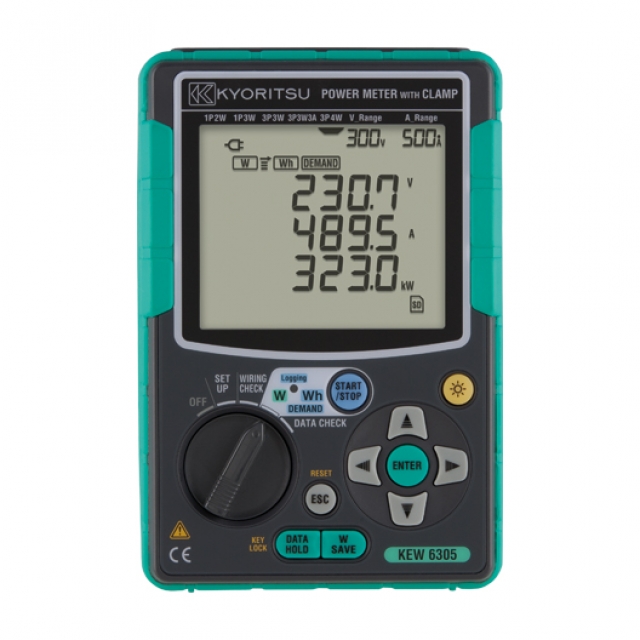

KYORITSU KEW 6305 POWER METER THREE PHASE

• Comprehensive real-time monitoring, recording and analysis of single and 3-phase systems
• Voltage, Current, Power Factor and Frequency measurements
• Power analysis (Active, Apparent and Reactive power)
• Energy analysis (Active, Apparent and Reactive energy)
• Active power accuracy: ±0.3%rdg±0.2%f.s.


KYORITSU KEW6315 THREE-PHASE POWER METER ANALYZER

• Simultaneous Power & Power quality measurements
• Helpful support functions
• Measurement with high accuracy
• Remote monitoring on PC and Android device
• Various Clamp Current Sensors
• Energy consumption check on site
• IEC 61010-1 CAT Ⅳ 300V, CAT Ⅲ 600V, CAT Ⅱ 1000V

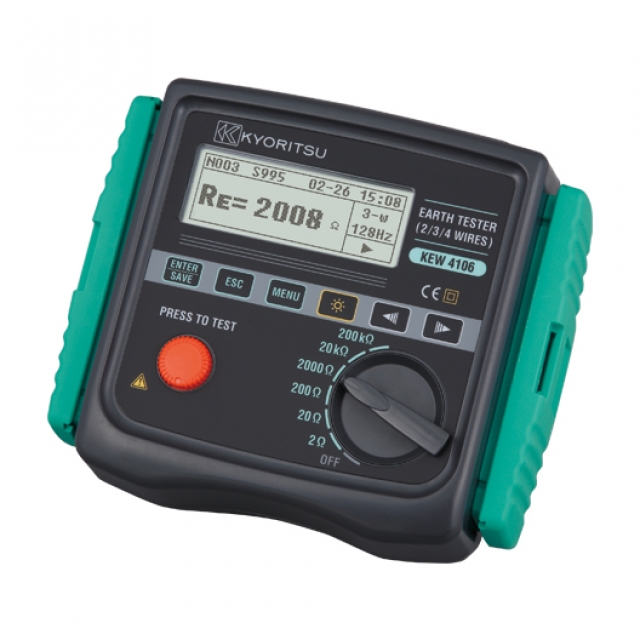

KYORITSU KEW4106 EARTHING RESISTANCE TESTER WITH EARTH RESISTIVITY TEST

• Earth resistance: Fall-of-potential method
• (currents and voltages measured via the Probes)
• Measurement method of Earth Resistivity (ρ): Wenner 4-pole method
• Series interference voltage (earth voltage)
• RMS Rectifier (between the E-S Terminals)

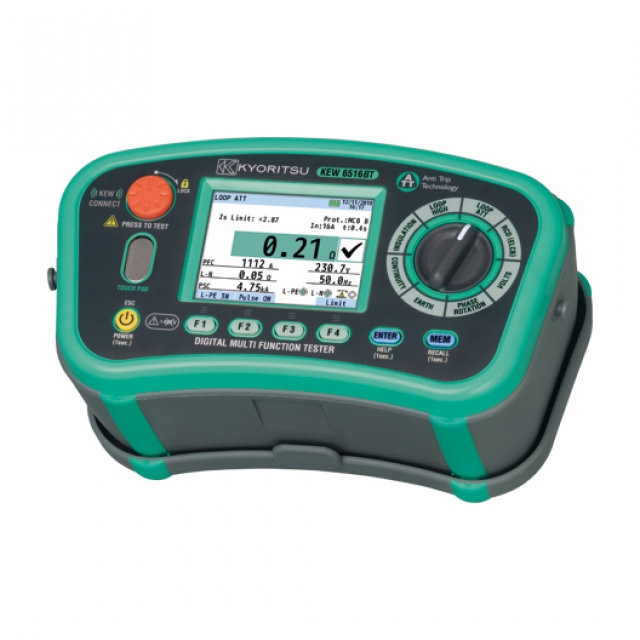

KYORITSU 6516BT MULTI-FUNCTIONAL TESTER FOR ELECTRIC INSTALLATIONS

• ATT Anti-Trip Technology (with 2 & 3 wire) for no trip LOOP L-PE testing on all RCDs.
• LOOP
• RCD
• EARTH Earth resistance test 2 and 3 wires with all accessories included.
• INSULATION
• CONTINUITY
• PHASE ROTATION
• TRMS Voltage measurements 2 to 600V, Mains Frequency.
• SPD
• PAT
• Bluetooth, USB

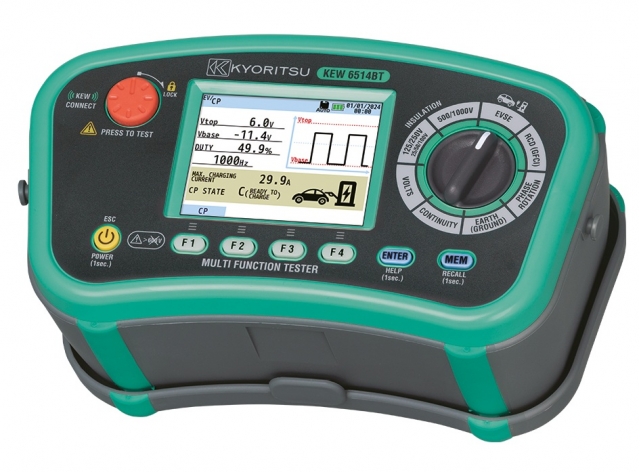

KYORITSU 6514BT MULTIFUNCTION ELECTRICAL INSTALLATION TESTER

• Offers various tests for electrical installation
• Insulation / Earth / Continuity / Motor rotation / 2-Wire Loop / RCD / Phase rotation / Frequency / AC V / SPD(Varistor)
• Auto memory
• Color LCD Display
• Tests dedicated for EVSE
• Waveform check of CP signal / Latch Locking / Programmable Auto test

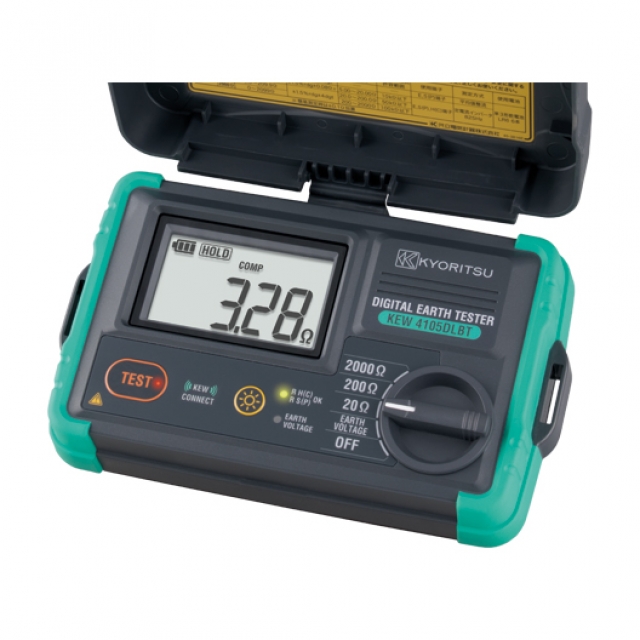

KYORITSU 4105DL 4105DL-H 4105DLBT-H EARTH TESTER RUGGED WITH IP67 WATER-PROOF
