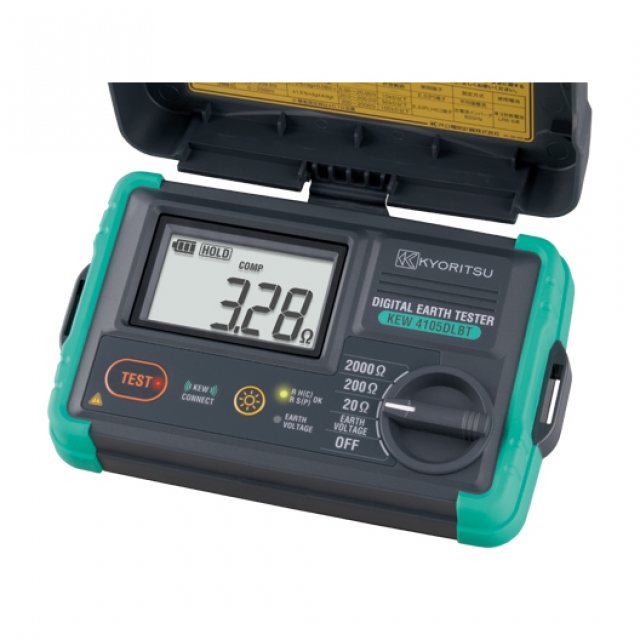

KYORITSU 4105DL 4105DL-H 4105DLBT-H Earth Tester Rugged with IP67 Water-proof

Code: 4105DL 4105DL-H 4105DLBT-H



Datasheet PDF, 4.2 Mb


Description

IP67 Dust & Waterproof rugged EARTH TESTER
Bluetooth enabled for data transfer
Hard Case Model

  • 3-Pole and 2-Pole Earth Resistance measurement (0.01 to 2000Ω)
  • Waterproof design (IP67)
  • Built-in Bluetooth® enables data transfer
  • Noise rejection up to 25V rms allows accurate testing in noisy environments
  • Rotary Switch makes the user interface very intuitive
  • Large LCD Display with Backlight
  • LED to monitor correct / non correct auxiliary earth spike resistance
  • Earth Voltage Measurement (AC/DC 0 to 300V)
  • CAT IV 100V

Measurement Method
Measurement of the earth electrode resistance (3-Pole method)

The international standard IEC 60364-6 provides information regarding the measurement of the resistance of an earth electrode for TT, TN and IT systems.
This measurement shall be made by the Volt-Amperometric method using two auxiliary earth electrodes.
The instrument that covers this requirement is the Earth Tester.

Various features
Dust and Waterproof
After use you can wash it to remove the mud and dust.



Strong noise rejection
Noise rejection up to 25V rms allows accurate testing in noisy environments.



Earth voltage warning
A red LED comes on if an external voltage is detected.



LED light comes on if:

FrequencyVoltage
0 to 10Hz> 10V
10 to 100Hz>25V
100 to 400Hz>5V
Robust steel made earth spikes
Earth measurements are possible up to 100kΩ* of auxiliary earth spikes resistance.
*20Ω range 10kΩ, 200Ω range 50kΩ, 2000Ω range 100kΩ.

Auxiliary earth resistance check
4105DLBT-H checks if the auxiliary earth resistance is:


Large LCD Display with Backlight


Useful Accessories and Options for measurement
Robust forged earth spikes (MODEL 8041)
Robust forged earth spikes.


Cable reel for Earth resistance tester  (MODEL 7267/7268)
Innovative Cable reel with wire guide system to facilitate rewinding.




Adapter for measurement terminal (MODEL 8259)
Adapter to enable use of other test leads.



Standard accessories

Accessories
7127B (Simplified measurement probe)
7266 (Earth resistance test leads [red:20m, yellow:10m, reen:5m/1set])
8041 (Auxiliary earth spikes [2spikes/1set])
9121 (Shoulder strap)
9197 (Hard case)
LR6(AA) × 6, Instruction manual


Recommended options

Optional Accessories
7267 (Cable reel for Earth resistance tester [red:20m])
7268 (Cable reel for Earth resistance tester [yellow:10m])
7271 (Earth resistance test lead [green:5m])
7272 (Precision measurement cord set)
8259 (Adapter for measurement terminal)
9190 (Carrying case)
9192 (Carrying case for cord reels)
7269 (Earth resistance test lead (Red 20m))
7270 (Earth resistance test lead (Yellow 10m))


More products KYORITSU

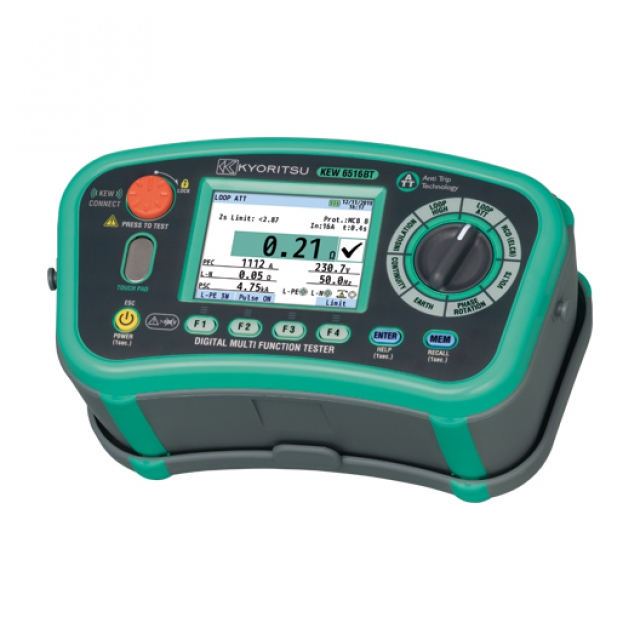

KYORITSU 6516BT MULTI-FUNCTIONAL TESTER FOR ELECTRIC INSTALLATIONS

• ATT Anti-Trip Technology (with 2 & 3 wire) for no trip LOOP L-PE testing on all RCDs.
• LOOP
• RCD
• EARTH Earth resistance test 2 and 3 wires with all accessories included.
• INSULATION
• CONTINUITY
• PHASE ROTATION
• TRMS Voltage measurements 2 to 600V, Mains Frequency.
• SPD
• PAT
• Bluetooth, USB

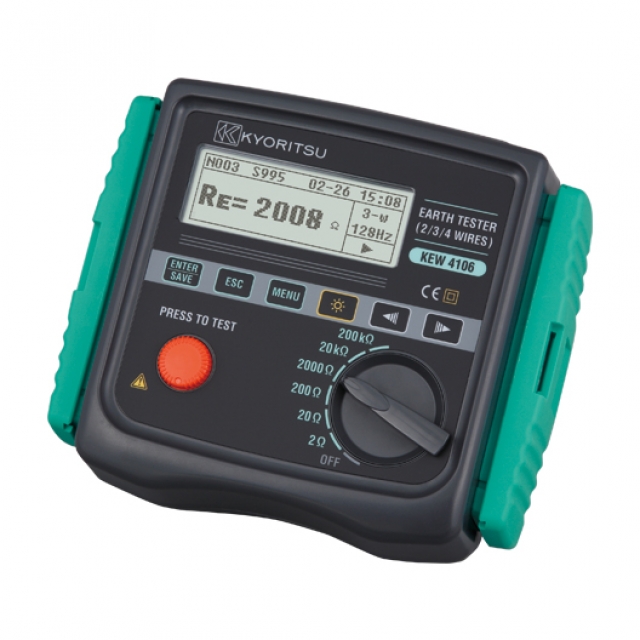

KYORITSU KEW4106 EARTHING RESISTANCE TESTER WITH EARTH RESISTIVITY TEST

• Earth resistance: Fall-of-potential method
• (currents and voltages measured via the Probes)
• Measurement method of Earth Resistivity (ρ): Wenner 4-pole method
• Series interference voltage (earth voltage)
• RMS Rectifier (between the E-S Terminals)

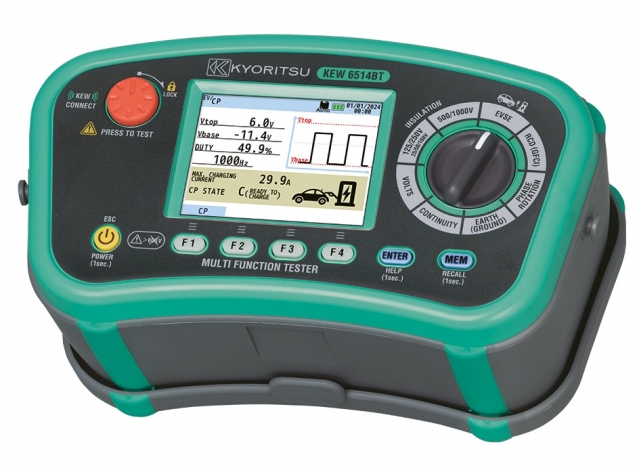

KYORITSU 6514BT MULTIFUNCTION ELECTRICAL INSTALLATION TESTER

• Offers various tests for electrical installation
• Insulation / Earth / Continuity / Motor rotation / 2-Wire Loop / RCD / Phase rotation / Frequency / AC V / SPD(Varistor)
• Auto memory
• Color LCD Display
• Tests dedicated for EVSE
• Waveform check of CP signal / Latch Locking / Programmable Auto test

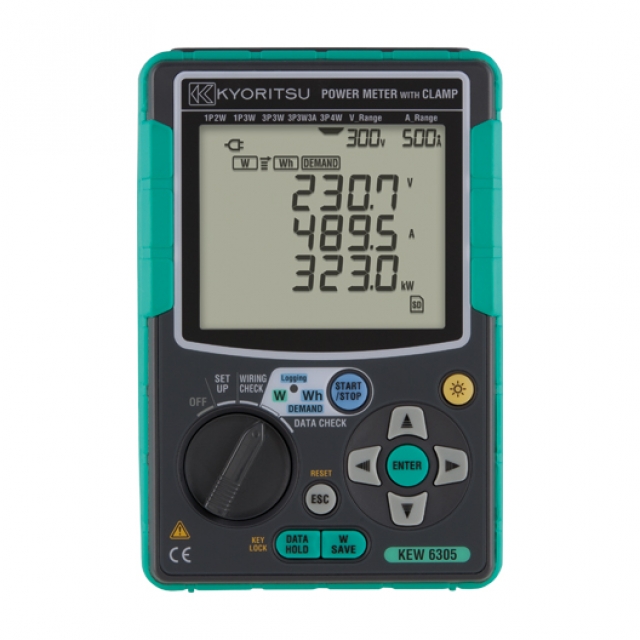

KYORITSU KEW 6305 POWER METER THREE PHASE

• Comprehensive real-time monitoring, recording and analysis of single and 3-phase systems
• Voltage, Current, Power Factor and Frequency measurements
• Power analysis (Active, Apparent and Reactive power)
• Energy analysis (Active, Apparent and Reactive energy)
• Active power accuracy: ±0.3%rdg±0.2%f.s.


KYORITSU 4105DL 4105DL-H 4105DLBT-H EARTH TESTER RUGGED WITH IP67 WATER-PROOF

• 3-Pole and 2-Pole Earth Resistance measurement (0.01 to 2000Ω)
• Waterproof design (IP67)
• Built-in Bluetooth® enables data transfer
• Noise rejection up to 25V rms allows accurate testing in noisy environments

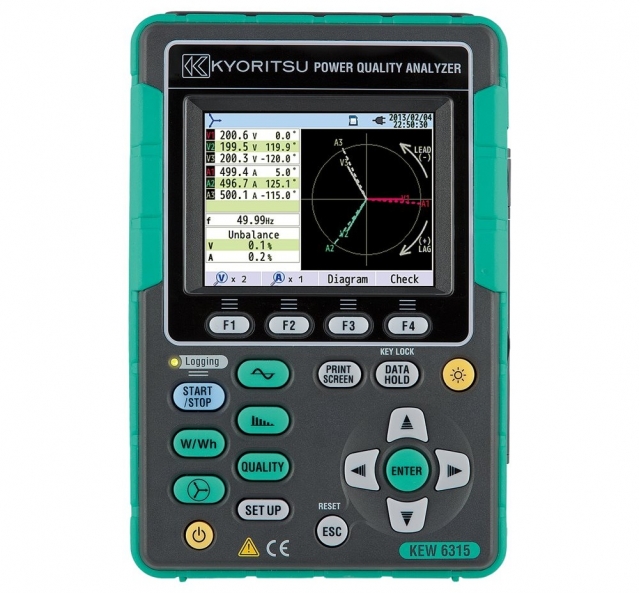

KYORITSU KEW6315 THREE-PHASE POWER METER ANALYZER
