Versatile tester supporting various electrical testing for check, maintenance and troubleshooting of electrical installations.
The EVSE dedicated test function offers advanced diagnostic analysis when used with EVSE adapter.
(EVSE: Electric Vehicle Supply Equipment)
Offers various tests for electrical installation
Insulation / Earth / Continuity / Motor rotation / 2-Wire Loop / RCD / Phase rotation / Frequency / AC V / SPD(Varistor)
Auto memory
Color LCD Display
Tests dedicated for EVSE
Waveform check of CP signal / Latch Locking / Programmable Auto test
Offers various tests for electrical installation
Loop 2-Wire
KEW 6514BT has an advanced measurement method called "Loop 2-Wire”. It can carry out Loop impedance test by using 2 wires only, while using 3 wires is usually required. Its small test current of 7mA does not trip even the 15mA RCDs!

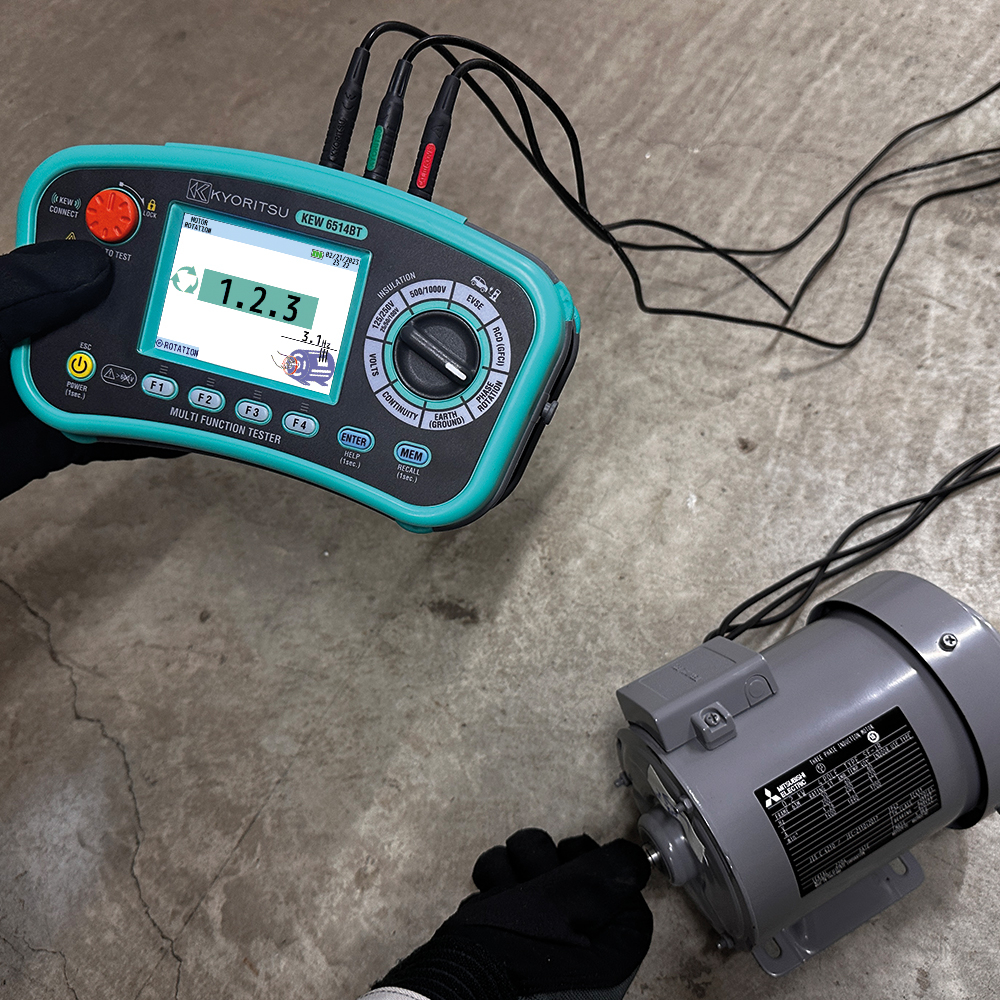

Motor rotation check
Without power supply, the motor connection can be checked by electromotive force generated by spinning the three-phase motor axis (shaft) by hand or other means.
Safety lock function for insulation resistance range
This safety function prevents the unintentional voltage presence for insulation resistance range. This safety function can be set on each range by our special application.

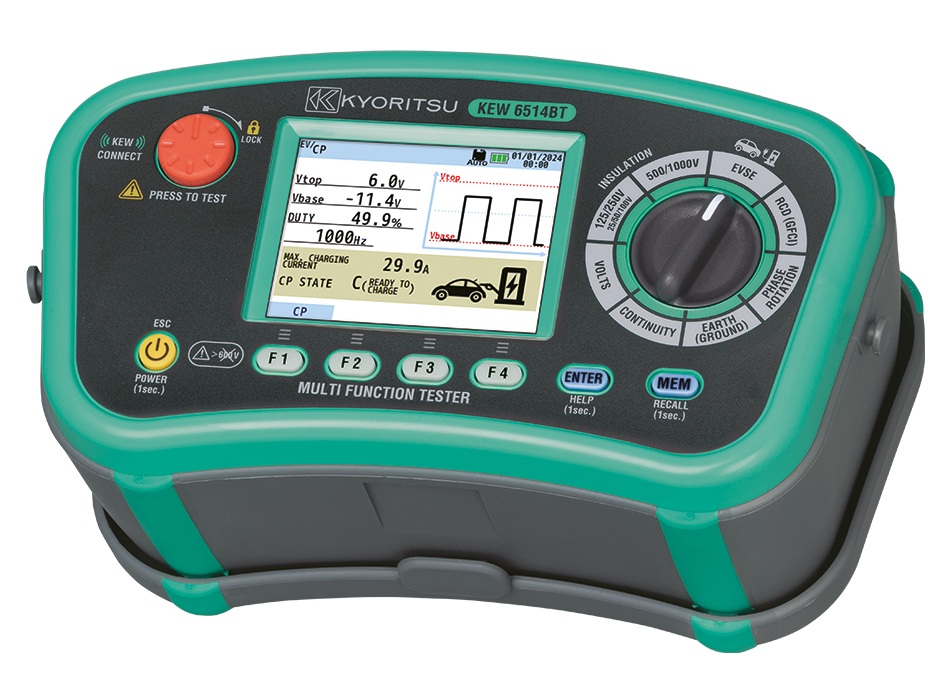

Color LCD Display
All the test data is shown in one large colored screen.
HELP function will show how to connect the instrument according to the function selected.
Auto memory
Activating this function, KEW 6514BT automatic saves measured data at every test. Up to 1000 measured data can be saved in the internal memory.
Test can be carried out by pressing the test switch on KEW 6514BT or the switch on the remote test lead. Pressing and turning the test switch on the instrument, you can have continuous test operating.
Measured data saved in the internal memory can be transferred to PC via USB adapter (8212-USB) or Bluetooth® and it is possible to manage the measured data and print complete test report.

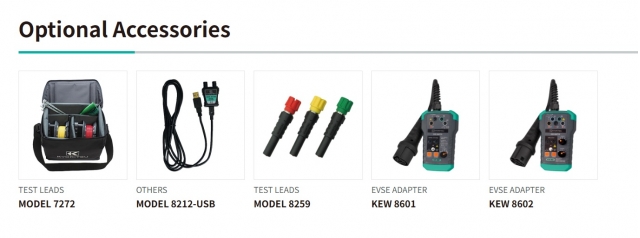

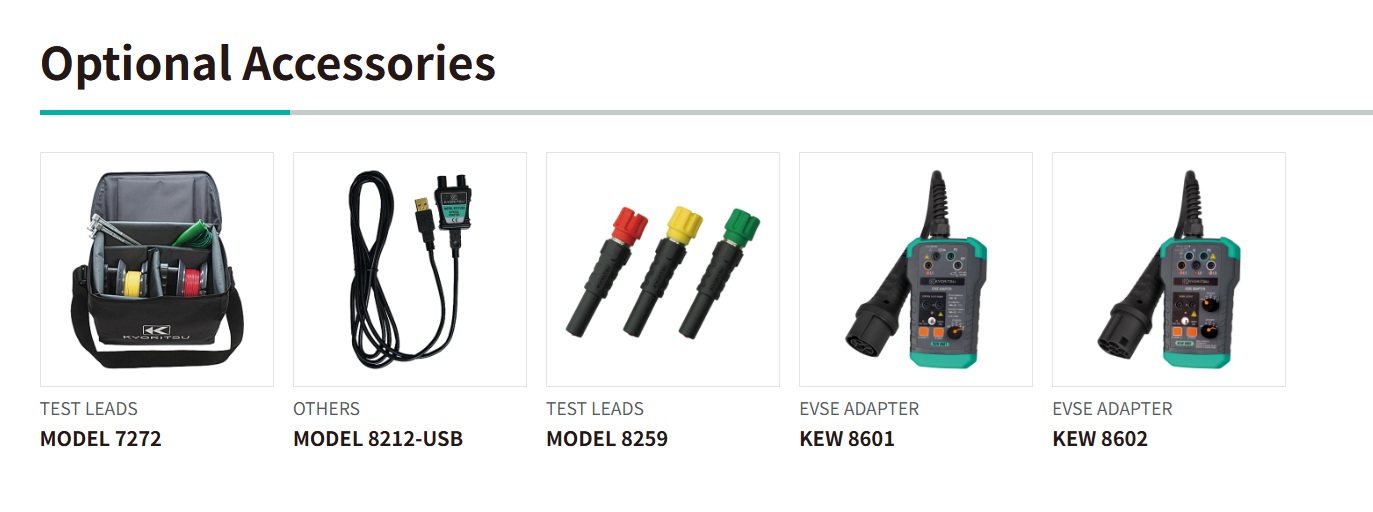

* 8212-USB is an optional accessory.
Measurement Data Management app
"KEW Smart Advanced" application facilitates the check of any measured result on tablet or smartphone via Bluetooth®.
User template (xlsx format) can be uploaded to the device and the measured values are automatically entered. Using this application, KEW 6514BT allows to activate or not each function and easily change the settings such as comparator value for each function.

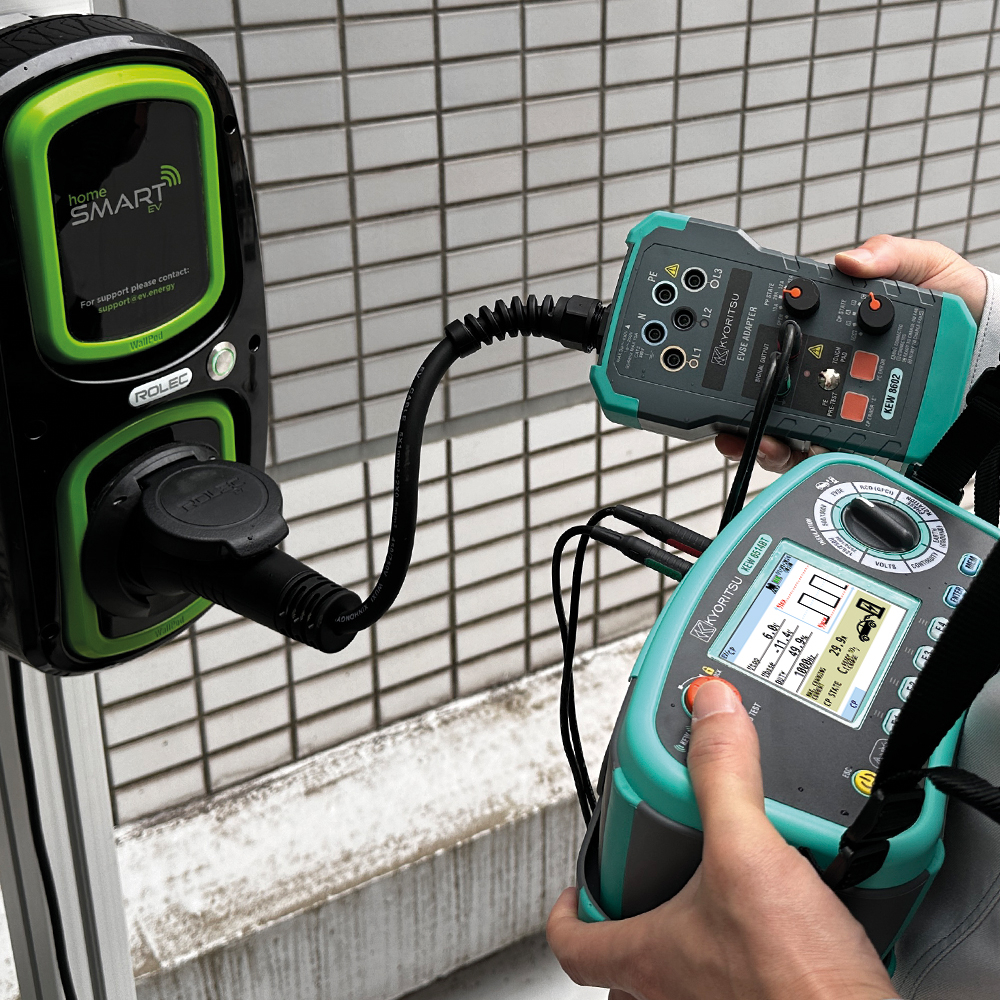

Dedicated function for EVSE
Offers advanced diagnostic analysis when used with optional EVSE ADAPTER
Including the followinng tests
Insulation
Volts
Latch switch circuit resistance
Earth
Loop 2-Wire
Checking CP signal
RCD

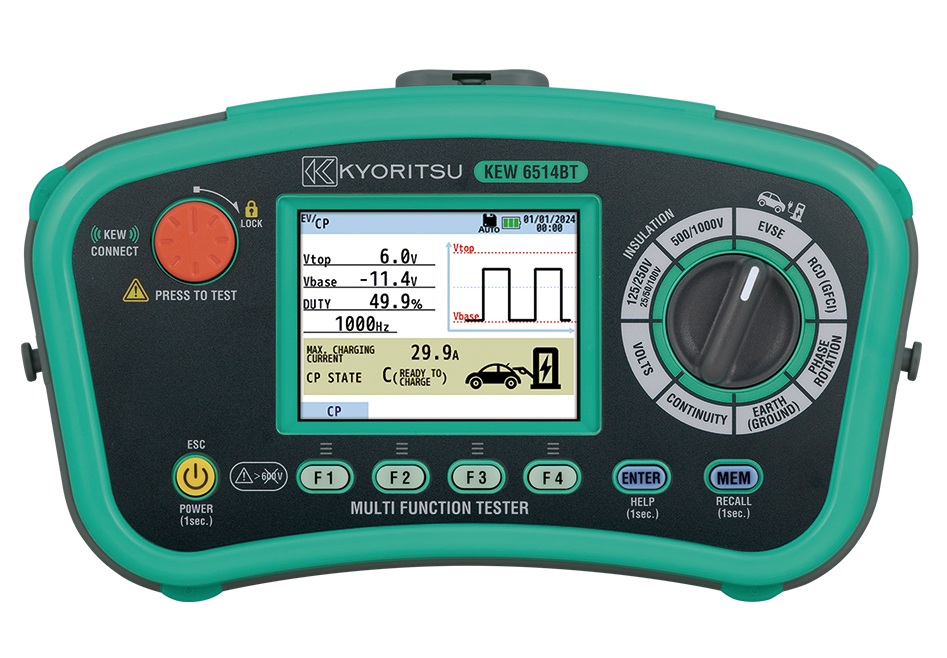

CP signal analysis function
Connecting KEW 6514BT to the CP terminal of the EVSE ADAPTER, CP signal can be deeply analysed as using an oscilloscope.
Also CP STATE and charge current are automatically calculated and shown on the instrument display.
Resistance measurement of latch switch circuit
Using KEW 6514BT in combination with EVSE ADAPTER KEW 8601, you can measure the circuit resistance and check if the latch switch of EVSE with type1 connector operates properly, with PASS or FAIL results.
Programmable Auto test
There is an EVSE dedicated function where you can carry out various tests. Combination and sequence of tests can be customized by using our special app.
The instrument supports you showing how to make the connections on its screen prior to test and also gives a step-by-step guide to carry out all the necessary tests.

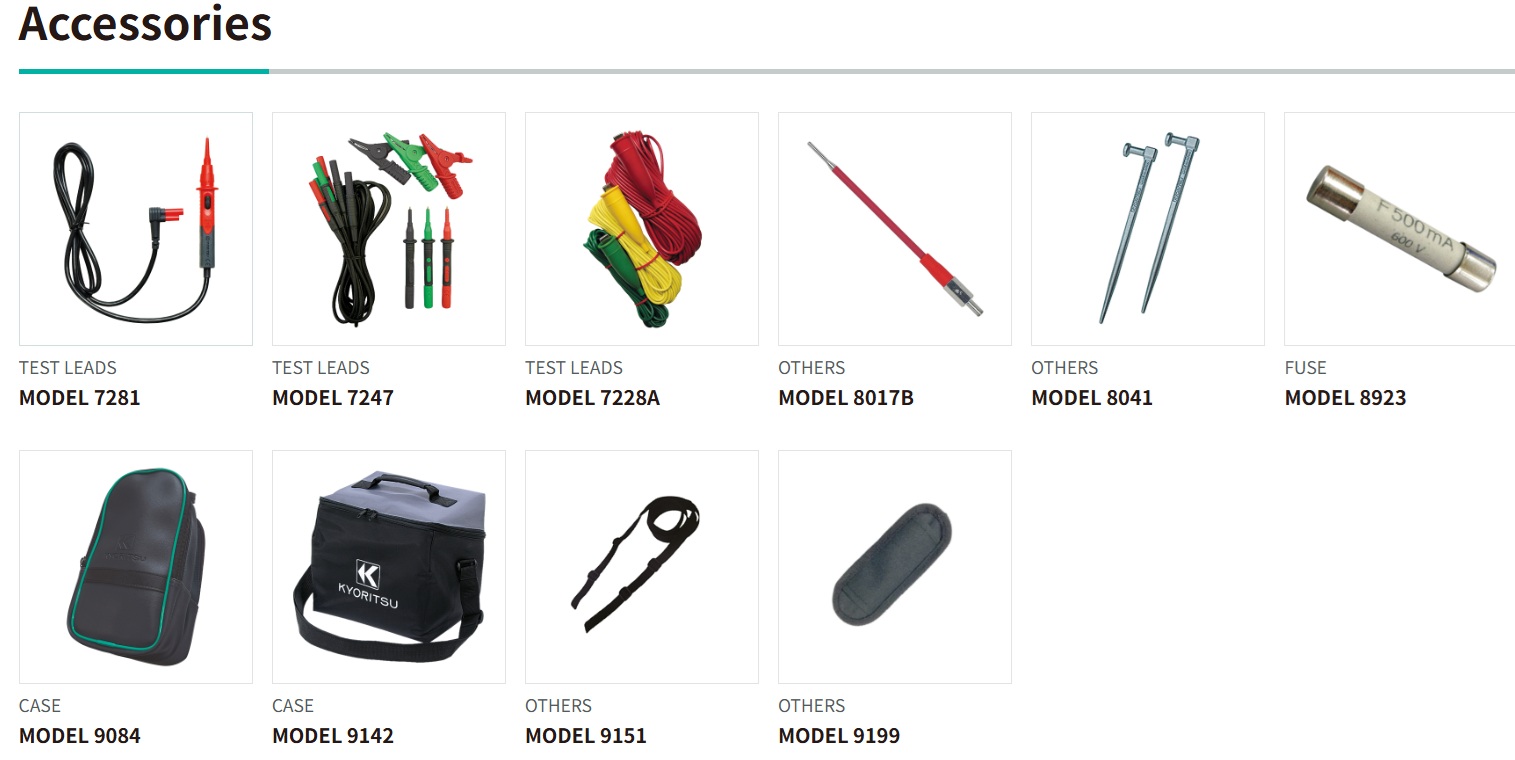

KEW 6514BT comes complete with everything you need for testing an electrical installation

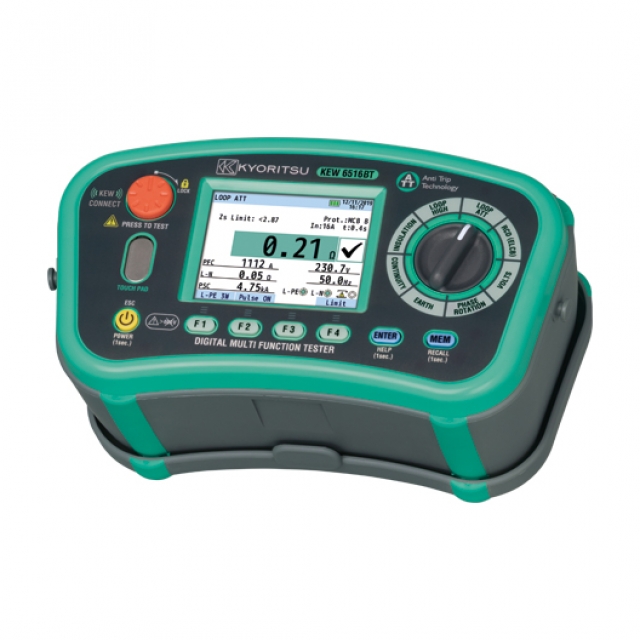

• ATT Anti-Trip Technology (with 2 & 3 wire) for no trip LOOP L-PE testing on all RCDs.
• LOOP
• RCD
• EARTH Earth resistance test 2 and 3 wires with all accessories included.
• INSULATION
• CONTINUITY
• PHASE ROTATION
• TRMS Voltage measurements 2 to 600V, Mains Frequency.
• SPD
• PAT
• Bluetooth, USB

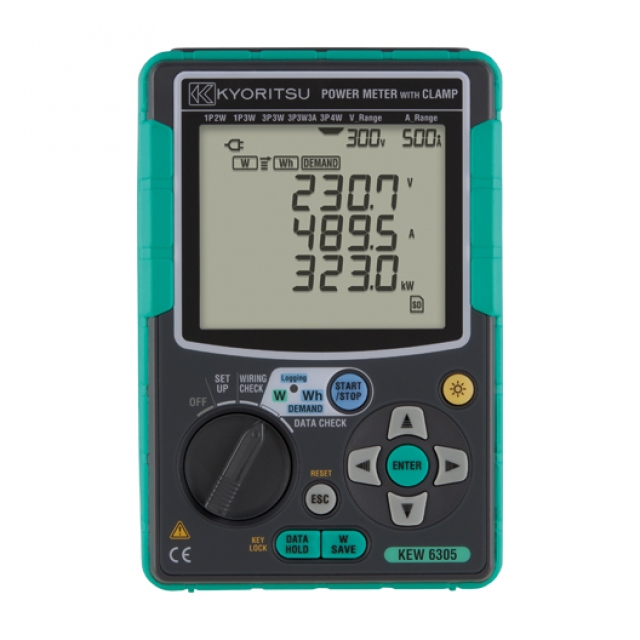

• Comprehensive real-time monitoring, recording and analysis of single and 3-phase systems
• Voltage, Current, Power Factor and Frequency measurements
• Power analysis (Active, Apparent and Reactive power)
• Energy analysis (Active, Apparent and Reactive energy)
• Active power accuracy: ±0.3%rdg±0.2%f.s.
• 3-Pole and 2-Pole Earth Resistance measurement (0.01 to 2000Ω)

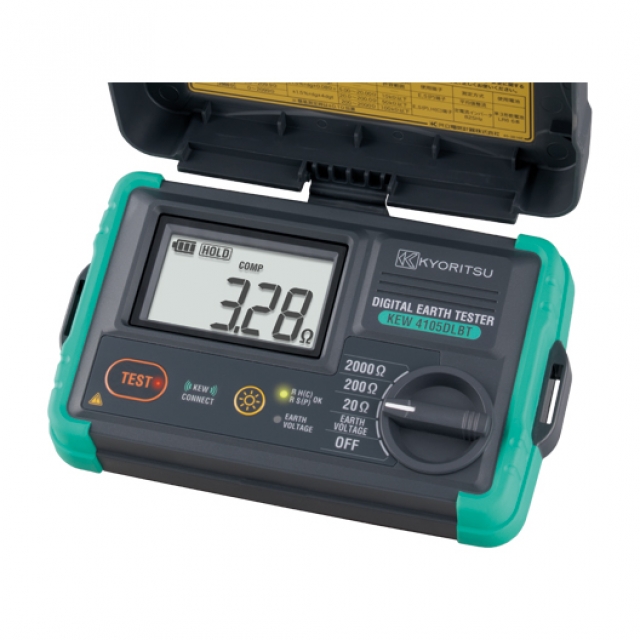

• Waterproof design (IP67)
• Built-in Bluetooth® enables data transfer
• Noise rejection up to 25V rms allows accurate testing in noisy environments
• Offers various tests for electrical installation
• Insulation / Earth / Continuity / Motor rotation / 2-Wire Loop / RCD / Phase rotation / Frequency / AC V / SPD(Varistor)
• Auto memory
• Color LCD Display
• Tests dedicated for EVSE
• Waveform check of CP signal / Latch Locking / Programmable Auto test

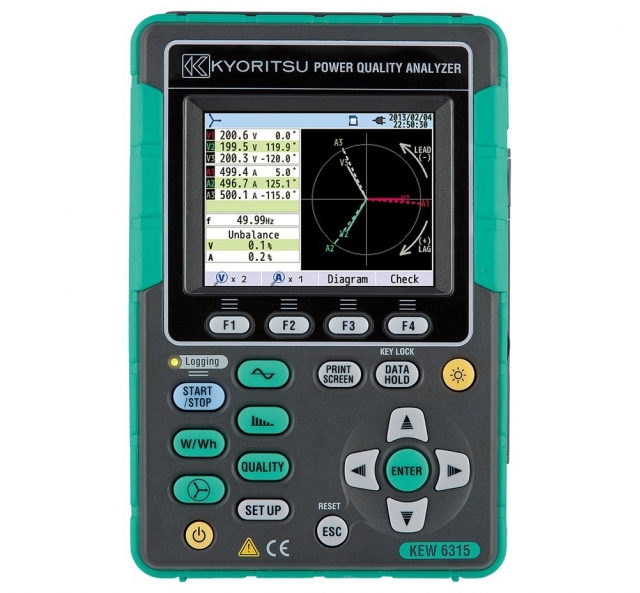

• Simultaneous Power & Power quality measurements
• Helpful support functions
• Measurement with high accuracy
• Remote monitoring on PC and Android device
• Various Clamp Current Sensors
• Energy consumption check on site
• IEC 61010-1 CAT Ⅳ 300V, CAT Ⅲ 600V, CAT Ⅱ 1000V
