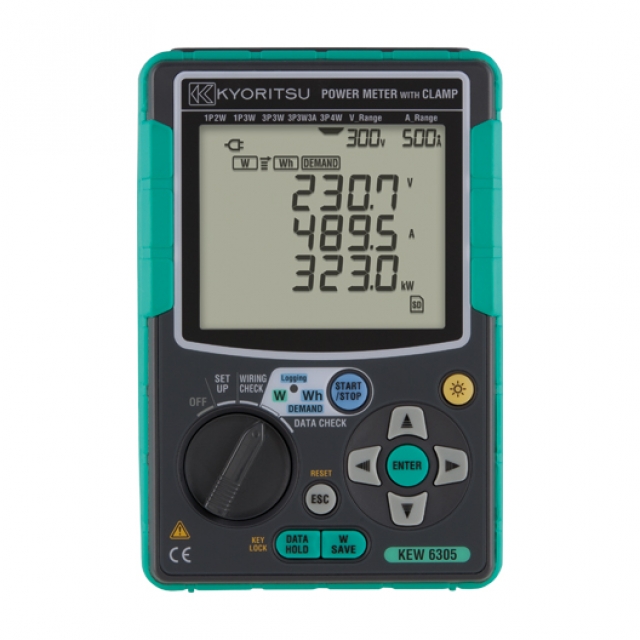

KYORITSU KEW 6305 Power Meter Three phase

Code: KEW6305 KEW-6305 6305



Datasheet PDF, 2.64 Mb


Description

POWER METER KEW 6305
Comprehensive real-time monitoring, recording and analysis of single and 3-phase systems

  • Comprehensive real-time monitoring, recording and analysis of single and 3-phase systems
  • Voltage, Current, Power Factor and Frequency measurements
  • Power analysis (Active, Apparent and Reactive power)
  • Energy analysis (Active, Apparent and Reactive energy)
  • Active power accuracy: ±0.3%rdg±0.2%f.s.
  • Automatic wiring check function to prevent incorrect connections
  • Large memory capability (2GB) using built-in SD card Interface
  • Recording interval can be set between 1 second and 1 hour
  • Real-time and remote measurements
  • Windows software for data analysis and setting via USB port or Bluetooth®
  • Synchronous measurements between two units of KEW 6305
  • Wide selection of clamp sensors allow measurements from 0.1 to 3000A
  • Automatic recoginition of connected sensor type
  • Double power supply system via AC line and batteries

KEW Smart 6305
Free Android software "KEW smart 6305" is available on "Google Play Store".
Please search "KEW Smart" in Google Play Store.
Communication charge may be incurred separately to download application.

Get it on Google Play

Supporting Android Ver. 9 to 16
WVGA (800 × 480) resolution or higher

Specification
Wiring connections1P2W, 1P3W, 3P3W, 3P3W3A, 3P4W
MeasurementsVoltage, Current, Frequency, Active power
ParametersApparent power, Reactive power, Active energy, Apparent energy, Reactive energy, Power factor (cos θ), Neutral current
Voltage range[RMS]150.0 / 300.0 / 600.0V
Voltage accuracy±0.2%rdg±0.2%f.s. (sine wave, 45 to 65Hz)
Current range[RMS]8128/8135 ( 50A type ) : 1.000 / 5.000 / 10.00 / 25.00 / 50.00A / AUTO
8127 ( 100A type ) : 2.000 / 10.00 / 20.00 / 50.00 / 100.0A / AUTO
8126 ( 200A type ) : 4.000 / 20.00 / 40.00 / 100.0 / 200.0A / AUTO
8125 ( 500A type ) : 10.00 / 50.00 / 100.0 / 250.0 / 500.0A / AUTO
8124/8130( 1000A type ) : 20.00 / 100.0 / 200.0 / 500.0 / 1000A / AUTO
8133 ( 3000A type ) : 60.00 / 300.0 / 600.0 / 1500 / 3000A / AUTO
Current accuracy±0.2%rdg±0.2%f.s. + Accuracy of Clamp sensor (sine wave, 45 to 65Hz)
+1%f.s. at the lowest range
Display range5 to 130% of each range(Voltage)
1 to 130% of each range(Current)
Crest factorVoltage: 2.5 or less, Current: 3.0 or less (max. 1.4Vpeak)
Active power accuracy±0.3%rdg±0.2%f.s.+ Accuracy of Clamp sensor
+1%f.s. when the lowest current ranges is selected.
Effect of power factorActive power: ±1.0%rdg cos θ=±0.5 (PF=1)
Frequency meter range40.0 to 70.0Hz
Frequency meter accuracy±3dgt
Accuracy preconditionPF=1, Sine wave, 45 to 65Hz, 23ºC±5ºC
Display update period1 second
Applicable standardsIEC 61010-1 CAT Ⅲ 600V
Operating temperature and humidity range0 to +50ºC, less than 85%RH (without condensation)
Storage temperature and humidity range-20 to +60ºC, less than 85%RH (without condensation)
Power supply (AC Line)AC100 to 240V±10% (45 to 65Hz)
Power supply (DC battery)LR6 or Ni-MH (HR-15-51) ×6 (Battery charger not included), Battery life approx. 15h (LR6)
Power consumption10VA (max.)
Communication interfaceUSB, Bluetooth®5.0
PC card interfaceSD card (2GB)
Dimension175(L)×120(W)×65(D) mm
WeightApprox. 800g (including batteries)



Video Youtube KYORITSU KEW 6305







Standard accessories

Power Meter and clamp sensor set model
*Included accessories for below models are same with above-mentioned.

KEW 6305-01
8125 (500A: φ40mm) × 3
Carrying case: 9125

KEW 6305-03
8130 (1000A : φ110mm) × 3
Carrying case: 9135

KEW 6305-05
8133 (3000A : φ170mm) × 3
Carrying case: 9135

Accessories included:

7141B (Voltage test lead set)
7148 (USB cable)
7170(Power cord[EU]) or 7240(Power cord[UK])
8326-02 (SD card [2GB])
9125 (Carrying case)
Battery (LR6)×6, Quick manual


Recommended options

Optional Accessories

8124/8125/8126/8127/8128 (Load current Clamp Sensor)
8130/8133(*1)/8135(*2) (Flexible clamp sensor)
8312 (Power supply adapter)
9132 (Magnetic carrying case)


More products KYORITSU

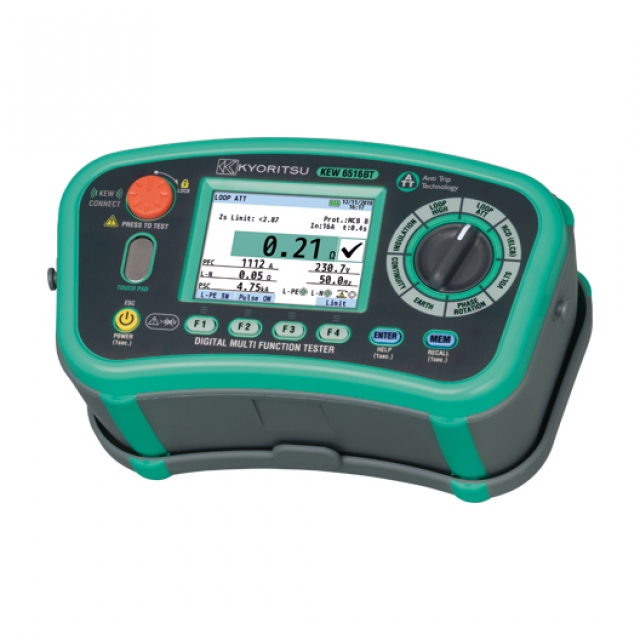

KYORITSU 6516BT MULTI-FUNCTIONAL TESTER FOR ELECTRIC INSTALLATIONS

• ATT Anti-Trip Technology (with 2 & 3 wire) for no trip LOOP L-PE testing on all RCDs.
• LOOP
• RCD
• EARTH Earth resistance test 2 and 3 wires with all accessories included.
• INSULATION
• CONTINUITY
• PHASE ROTATION
• TRMS Voltage measurements 2 to 600V, Mains Frequency.
• SPD
• PAT
• Bluetooth, USB

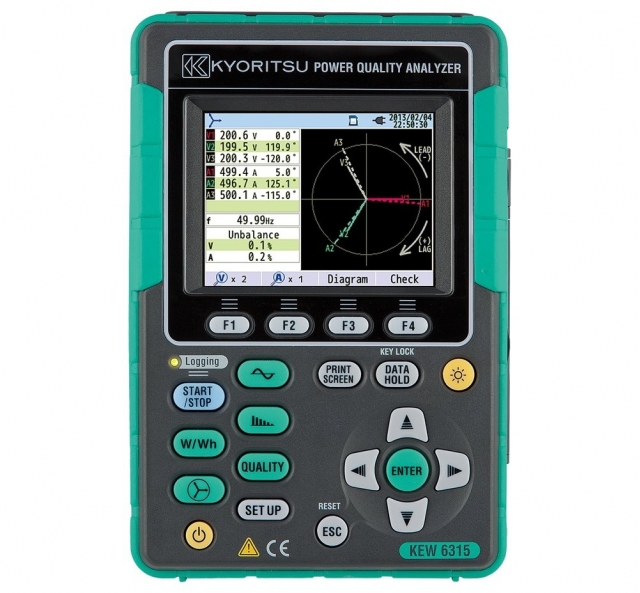

KYORITSU KEW6315 THREE-PHASE POWER METER ANALYZER

• Simultaneous Power & Power quality measurements
• Helpful support functions
• Measurement with high accuracy
• Remote monitoring on PC and Android device
• Various Clamp Current Sensors
• Energy consumption check on site
• IEC 61010-1 CAT Ⅳ 300V, CAT Ⅲ 600V, CAT Ⅱ 1000V

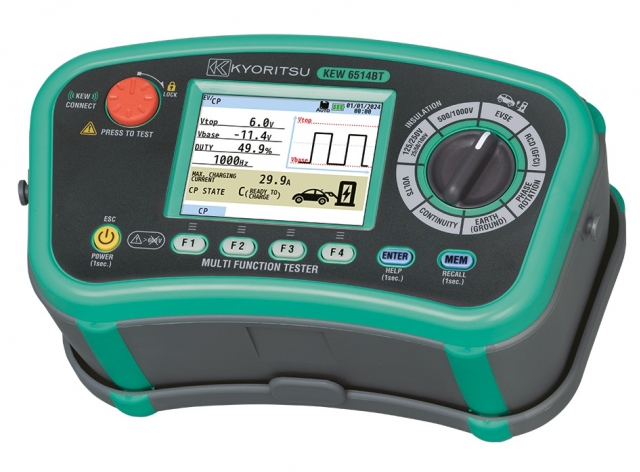

KYORITSU 6514BT MULTIFUNCTION ELECTRICAL INSTALLATION TESTER

• Offers various tests for electrical installation
• Insulation / Earth / Continuity / Motor rotation / 2-Wire Loop / RCD / Phase rotation / Frequency / AC V / SPD(Varistor)
• Auto memory
• Color LCD Display
• Tests dedicated for EVSE
• Waveform check of CP signal / Latch Locking / Programmable Auto test


KYORITSU KEW 6305 POWER METER THREE PHASE

• Comprehensive real-time monitoring, recording and analysis of single and 3-phase systems
• Voltage, Current, Power Factor and Frequency measurements
• Power analysis (Active, Apparent and Reactive power)
• Energy analysis (Active, Apparent and Reactive energy)
• Active power accuracy: ±0.3%rdg±0.2%f.s.

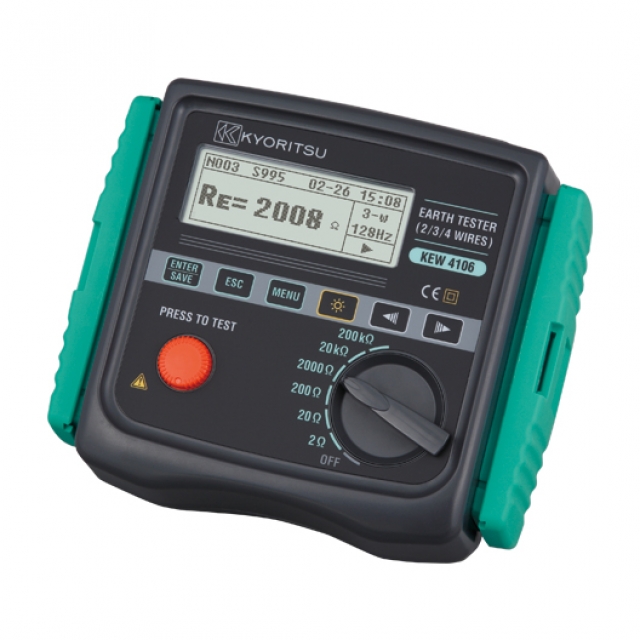

KYORITSU KEW4106 EARTHING RESISTANCE TESTER WITH EARTH RESISTIVITY TEST

• Earth resistance: Fall-of-potential method
• (currents and voltages measured via the Probes)
• Measurement method of Earth Resistivity (ρ): Wenner 4-pole method
• Series interference voltage (earth voltage)
• RMS Rectifier (between the E-S Terminals)

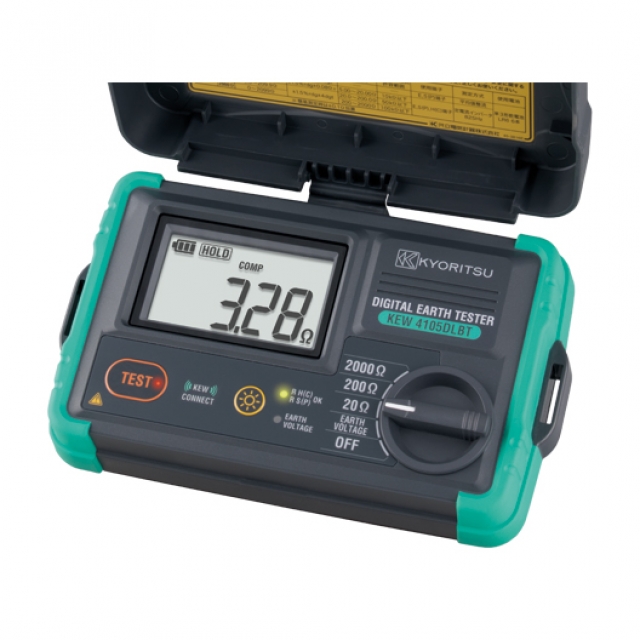

KYORITSU 4105DL 4105DL-H 4105DLBT-H EARTH TESTER RUGGED WITH IP67 WATER-PROOF
