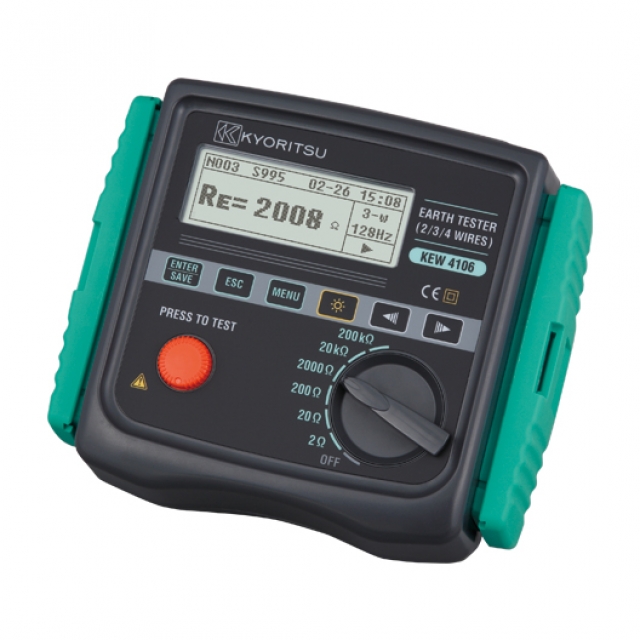

KYORITSU KEW4106 Earthing Resistance Tester with Earth Resistivity Test

Code: KEW4106 KEW-4106



Datasheet PDF, 6.91 Mb


Description

Earth Resistance & Resistivity Tester

  • Earth resistance measurement with six ranges covering measurements from 0.001 Ω to 200 kΩ
  • Earth resistivity (ρ) measurement is automatically calculated after having set the distance between Auxiliary Earth Spikes (Wenner method)
  • Automatic and Manual selection of the Test Current Frequency in four bands of 94/105/111/128Hz
  • In Automatic mode KEW 4106 will select the most suitable Frequency
  • Advanced Filtering method (based on FFT Fast Fourier Transform) reduces noise interference for obtaining stable measurements
  • Up to 800 measurement results can be saved in the memory and recalled on the display
  • The stored results can be transferred to a PC by using USB adapter (MODEL 8212-USB) and the special software "KEW Report"
  • Robust design with IP54 protection

Measuring methods
  • Earth resistance: Fall-of-potential method
  • (currents and voltages measured via the Probes)
  • Measurement method of Earth Resistivity (ρ): Wenner 4-pole method
  • Series interference voltage (earth voltage)
  • RMS Rectifier (between the E-S Terminals)

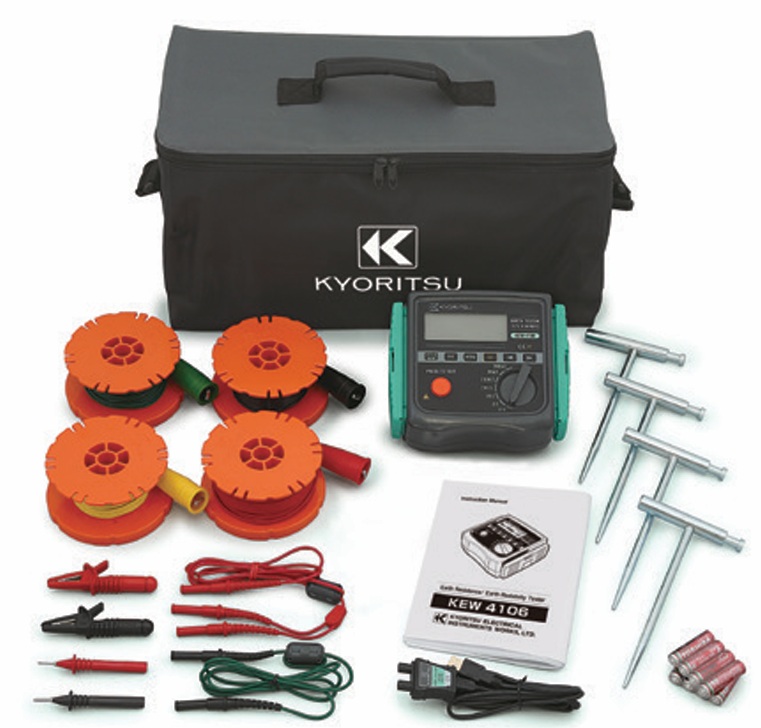

Standard accessories

Accessories7229A (Earth precision measurement),
7238A (Simplified measurement test leads),
8032 (Auxiliary earth spikes [2 spiks/set])×2 sets (4 spikes in total),
8200-04 (Cord reel [4 pcs])×1 set,
8212-USB (USB adapter),
8923(Fuse [0.5A/600V]) × 1 (included), 1 (spare),
9121 (Shoulder strap),
9125 (Carrying case),
R6 × 8, Instruction manual



More products KYORITSU

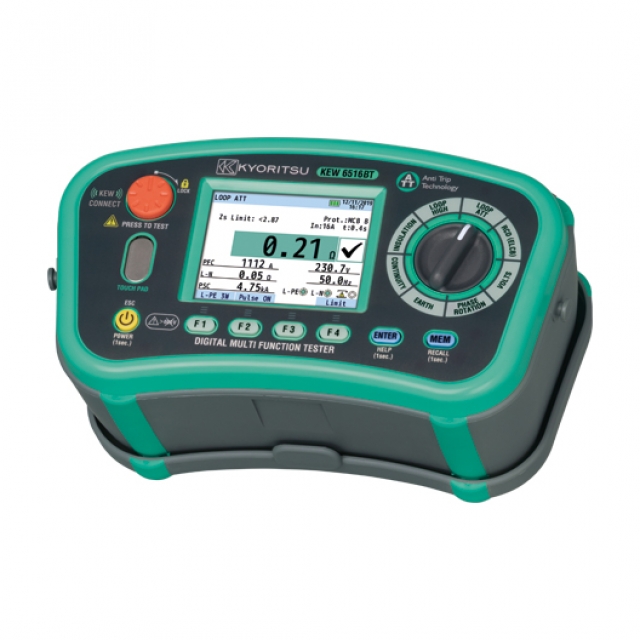

KYORITSU 6516BT MULTI-FUNCTIONAL TESTER FOR ELECTRIC INSTALLATIONS

• ATT Anti-Trip Technology (with 2 & 3 wire) for no trip LOOP L-PE testing on all RCDs.
• LOOP
• RCD
• EARTH Earth resistance test 2 and 3 wires with all accessories included.
• INSULATION
• CONTINUITY
• PHASE ROTATION
• TRMS Voltage measurements 2 to 600V, Mains Frequency.
• SPD
• PAT
• Bluetooth, USB

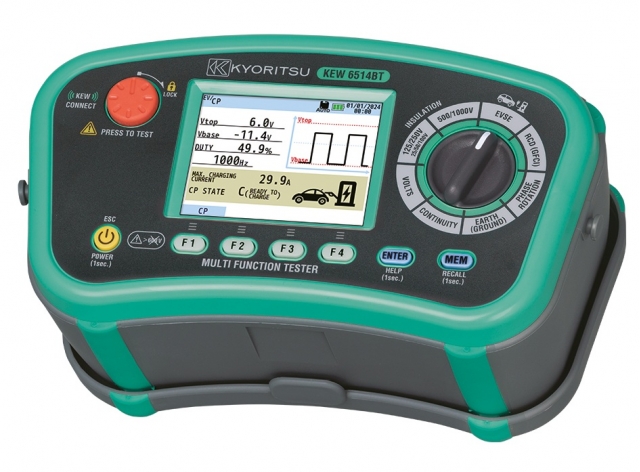

KYORITSU 6514BT MULTIFUNCTION ELECTRICAL INSTALLATION TESTER

• Offers various tests for electrical installation
• Insulation / Earth / Continuity / Motor rotation / 2-Wire Loop / RCD / Phase rotation / Frequency / AC V / SPD(Varistor)
• Auto memory
• Color LCD Display
• Tests dedicated for EVSE
• Waveform check of CP signal / Latch Locking / Programmable Auto test

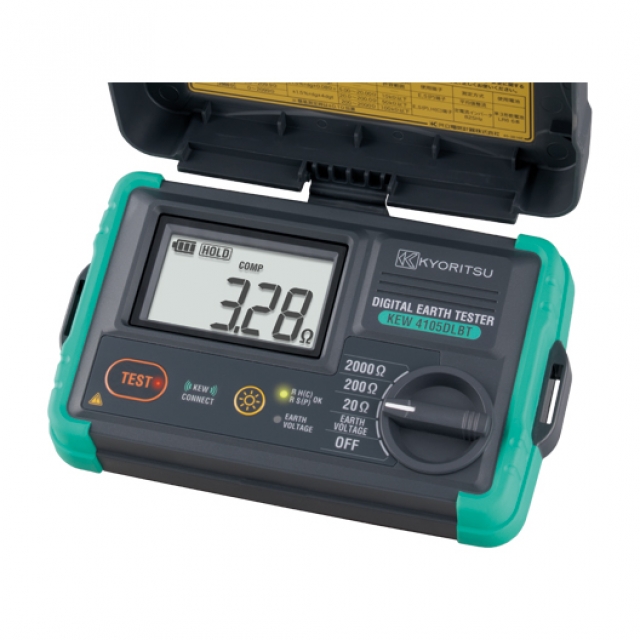

KYORITSU 4105DL 4105DL-H 4105DLBT-H EARTH TESTER RUGGED WITH IP67 WATER-PROOF

• 3-Pole and 2-Pole Earth Resistance measurement (0.01 to 2000Ω)
• Waterproof design (IP67)
• Built-in Bluetooth® enables data transfer
• Noise rejection up to 25V rms allows accurate testing in noisy environments

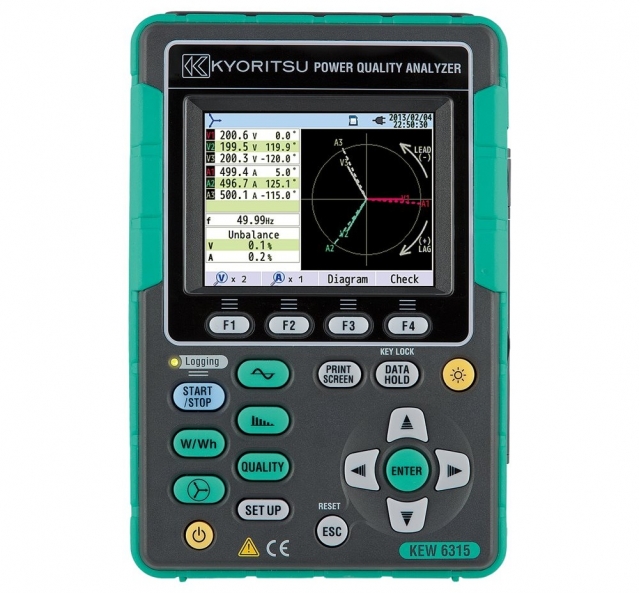

KYORITSU KEW6315 THREE-PHASE POWER METER ANALYZER

• Simultaneous Power & Power quality measurements
• Helpful support functions
• Measurement with high accuracy
• Remote monitoring on PC and Android device
• Various Clamp Current Sensors
• Energy consumption check on site
• IEC 61010-1 CAT Ⅳ 300V, CAT Ⅲ 600V, CAT Ⅱ 1000V

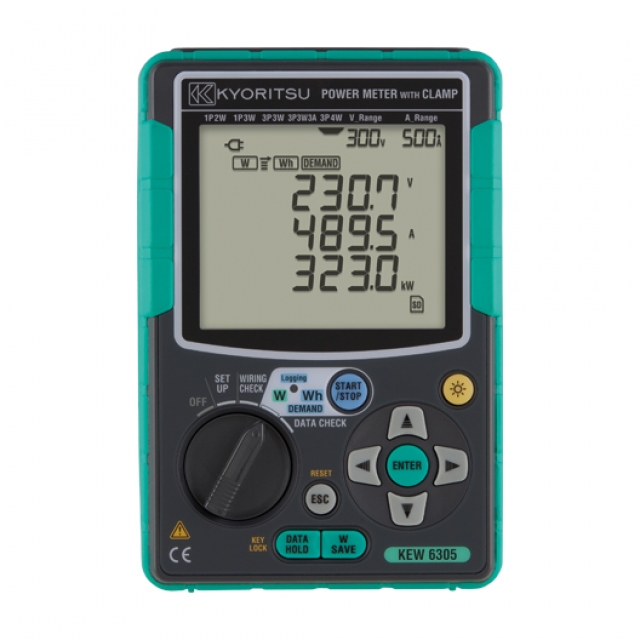

KYORITSU KEW 6305 POWER METER THREE PHASE
