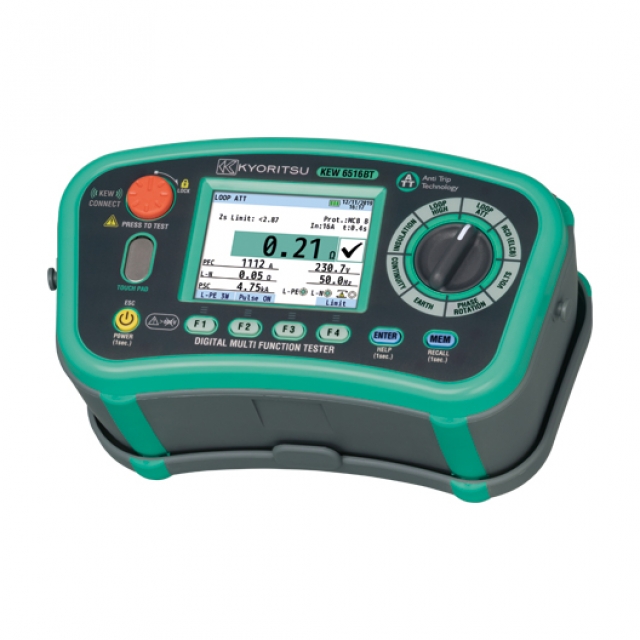

KYORITSU 6516BT Multi-functional tester for electric installations

Code: 6516BT KEW6516BT 6516 6516BT-EV2 6516-EV2 KEW-6516BT



Datasheet PDF, 6.23 Mb


Description

MULTI FUNCTION INSTALLATION TESTER

KEW 6516BT
A lot of Testing Power in the hands of Electrical Installation Professionals!

DISPLAY
Color LCD 3.5 inches dot matrix.
ATT
Anti-Trip Technology (with 2 & 3 wire) for no trip LOOP L-PE testing on all RCDs.
With 2 wire only, very useful in case of no Neutral (i.e. 3-phase motor lines).
LOOP
・High test current range of 2Ω with 0.001Ω resolution.
・Zs Limit compares the values required by Electrical Installations Standard with measured results.
RCD
・Type AC, A, F, B(General & Selective), EV and Variable RCDs.
・Single and Auto test, Ramp test and Contact voltage.
EARTH
Earth resistance test 2 and 3 wires with all accessories included.
INSULATION
Resistance test 100, 250, 500 & 1000V with auto discharge voltage.
CONTINUITY
Continuity test at 200mA or 15mA with selectable buzzer for fast judgment.
PHASE ROTATION
On 3-phase lines with clear indication of the sequence on the display.
VOLTS
TRMS Voltage measurements 2 to 600V, Mains Frequency.
HELP
Display shows how to connect the instrument according to the function selected.
SPD
Surge Protection Device test, for SPD that uses varistor.
PAT
Portable Appliance Tester function, for Insulation and Protective conductor resistance test
Bluetooth
Communication by "KEW CONNECT"
SAFETY
IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V, IEC 61557-1,2,3,4,5,6,7,10.

Large LCD & HELP function


All the test data is shown in one large colored screen.
HELP function will show how to connect the instrument according to the function selected

Operation in 3 simple steps & Hands free testing

Set the rotary dial to your testing range.
Connect the instrument to the installation under test.
Press the test button.(By remote probe or using the Lockdown function of the test button.)

Anti-Trip Technology (with 2 & 3 wire)
For no trip LOOP L-PE testing on all RCDs.
With 3 wire (L, N, PE), to get the best accuracy readings.
With 2 wire only, very useful in case of no Neutral (i.e. 3-phase motor lines).

Loop Impedance 0.001 resolution
High test current range of 2Ω with 0.001Ω resolution.

Zs/Ra Limit
Zs Limit compares the values required by Electrical Installations Standard with measured results.

The verification of safety requirement on an electrical installation is simplified by using Zs/Ra Limit function. This function will automatically check if the measured loop impedance for TN (or earth loop for TT) is low enough to trip (disconnect) the MCB / Fuse / RCD giving the result of PASS or FAIL on the display.

SPD test
SPD (Surge Protection Device) which contains varistor can be tested measuring the tripping voltage without damage it.

PAT test
PAT test (PAT = Portable Appliance Tester) It is possible to check the insulation resistance and earth bond continuity of portable appliances for class I and II.

Connectivity
Bluetooth


Use the application KEW Smart Advanced to improve work efficiency.

KEW 6516BT can trancfer the test data toa Tablet or Smartphone via Bluetooth.
Such test data can be saved, shared and sent by email.

Measurement Data Managemant Application "KEW Smart Advanced"

One application can manage all supported models.

USB
Use the PC application KEW Report to improve work efficiency.

KEW 6516BT can download the test data by connecting the USB adaptor (Model 8212-USB for option) and then print complete Test Reports by a PC.

Presentation video Youtube KEW-6516BT








Standard accessories

AccessoriesMains test lead*1
7281 (Test leads with remote control switch)
7246 (Distribution board test lead)
7228A (Earth resistance test leads)
8041 (Auxiliary earth spikes[2 spikes/1 set])
9084 (Soft case)
9142 (Carrying case)
9151 (Shoulder strap)
9199 (Shoulder pad)
LR6(AA) × 8
Instruction manual
Calibration certificate




Recommended options

Optional Accessories
8212-USB (USB adapter)
8259 (Adapter for measurement terminal)
7272 (Precision measurement cord set)
8017A (Extension prod long)
8602 (EVSE ADAPETER)



More products KYORITSU

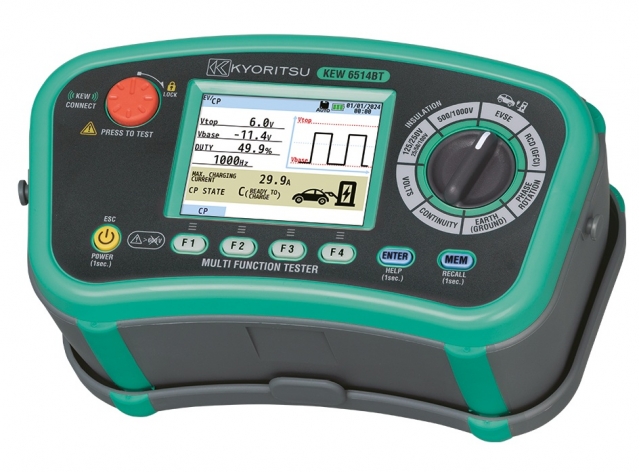

KYORITSU 6514BT MULTIFUNCTION ELECTRICAL INSTALLATION TESTER

• Offers various tests for electrical installation
• Insulation / Earth / Continuity / Motor rotation / 2-Wire Loop / RCD / Phase rotation / Frequency / AC V / SPD(Varistor)
• Auto memory
• Color LCD Display
• Tests dedicated for EVSE
• Waveform check of CP signal / Latch Locking / Programmable Auto test

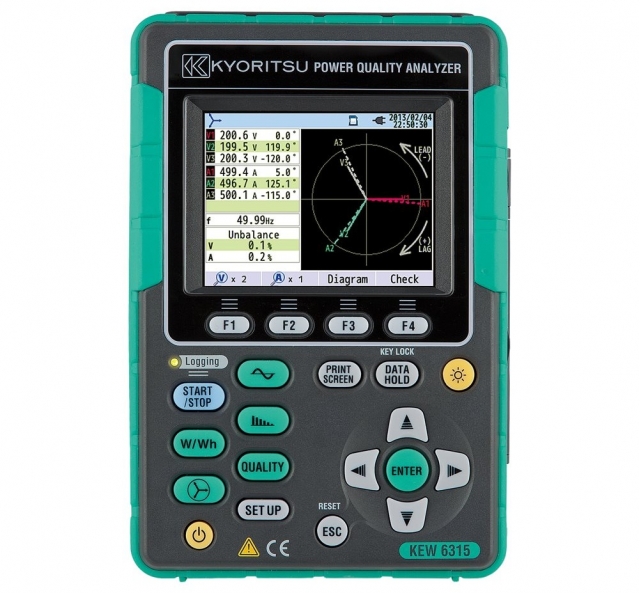

KYORITSU KEW6315 THREE-PHASE POWER METER ANALYZER

• Simultaneous Power & Power quality measurements
• Helpful support functions
• Measurement with high accuracy
• Remote monitoring on PC and Android device
• Various Clamp Current Sensors
• Energy consumption check on site
• IEC 61010-1 CAT Ⅳ 300V, CAT Ⅲ 600V, CAT Ⅱ 1000V


KYORITSU 6516BT MULTI-FUNCTIONAL TESTER FOR ELECTRIC INSTALLATIONS

• ATT Anti-Trip Technology (with 2 & 3 wire) for no trip LOOP L-PE testing on all RCDs.
• LOOP
• RCD
• EARTH Earth resistance test 2 and 3 wires with all accessories included.
• INSULATION
• CONTINUITY
• PHASE ROTATION
• TRMS Voltage measurements 2 to 600V, Mains Frequency.
• SPD
• PAT
• Bluetooth, USB

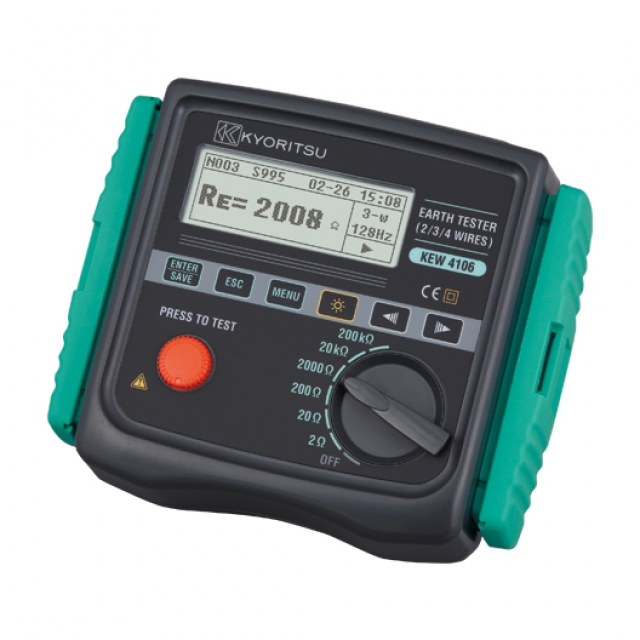

KYORITSU KEW4106 EARTHING RESISTANCE TESTER WITH EARTH RESISTIVITY TEST

• Earth resistance: Fall-of-potential method
• (currents and voltages measured via the Probes)
• Measurement method of Earth Resistivity (ρ): Wenner 4-pole method
• Series interference voltage (earth voltage)
• RMS Rectifier (between the E-S Terminals)

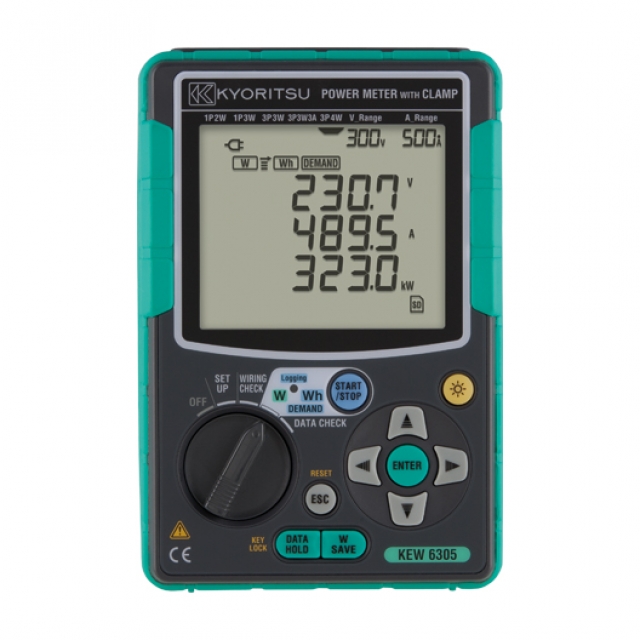

KYORITSU KEW 6305 POWER METER THREE PHASE

• Comprehensive real-time monitoring, recording and analysis of single and 3-phase systems
• Voltage, Current, Power Factor and Frequency measurements
• Power analysis (Active, Apparent and Reactive power)
• Energy analysis (Active, Apparent and Reactive energy)
• Active power accuracy: ±0.3%rdg±0.2%f.s.

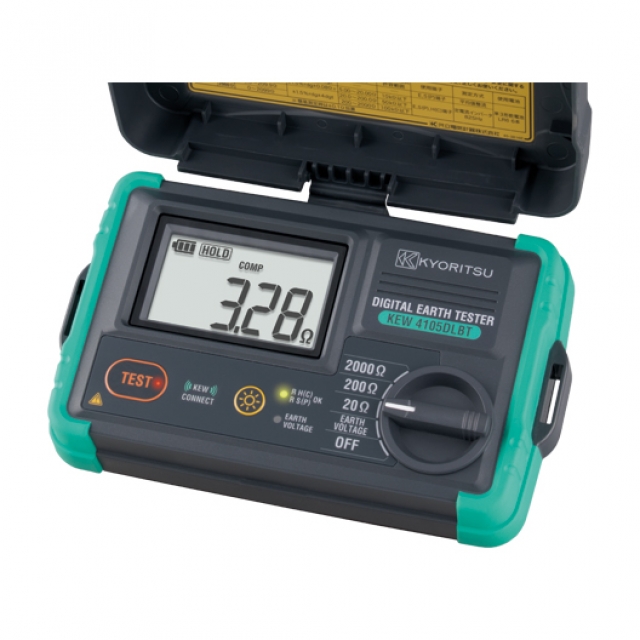

KYORITSU 4105DL 4105DL-H 4105DLBT-H EARTH TESTER RUGGED WITH IP67 WATER-PROOF
