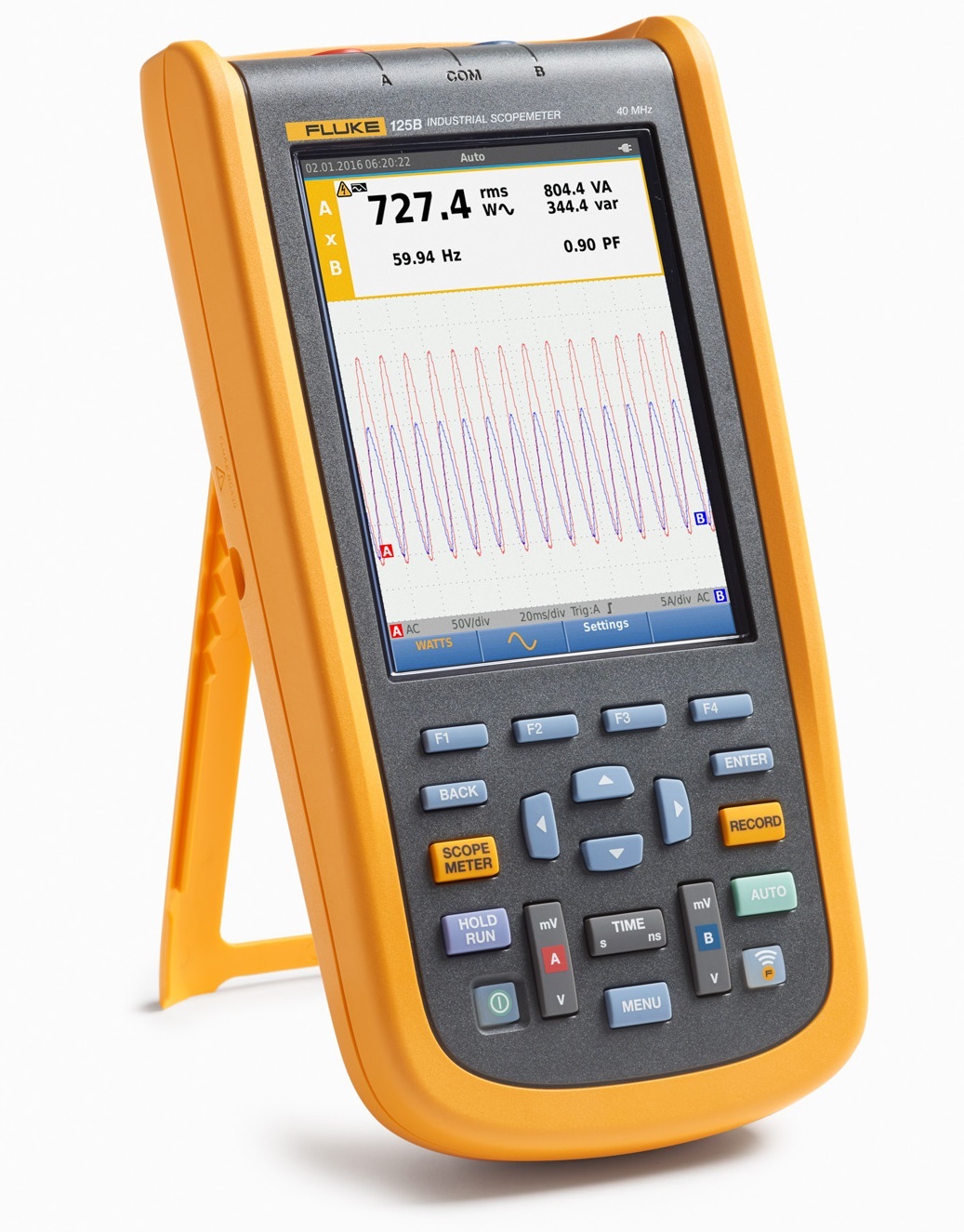

The compact ScopeMeter® 120B Series, is the rugged oscilloscope solution for industrial electrical and electro-mechanical equipment troubleshooting and maintenance applications. It"™s a truly integrated test tool, with oscilloscope, multimeter and high-speed recorder in one easy-to-use instrument. The ScopeMeter 120B Series also integrates with Fluke Connect® mobile app and FlukeView® for ScopeMeter software to enable further collaboration, data analysis and archiving of critical test information.

The 120B Series Industrial ScopeMeter test tools include innovative functions designed to help technicians troubleshoot faster and get the answers they need to keep their systems up and running. Display waveforms with Connect-and-Viewâ�� trigger and setup technology and automatically view related numerical measurements using Fluke IntellaSetâ�� technology, all without making manual measurement adjustments. With Recorder Event Detect capabilities, elusive intermittent events are captured and logged for easy viewing and analysis.

Dual-input digital oscilloscope and multimeter
40 MHz or 20 MHz oscilloscope bandwidth
Two 5,000-count true-rms digital multimeters
Connect-and-Viewâ�� trigger simplicity for hands-off operation
IntellaSetâ�� technology automatically and intelligently adjusts numerical readout based on the measured signal
Dual-input waveform and meter reading recorder for trending data over extended periods
Recorder Event Detect captures elusive intermittent signals on repetitive waveforms up to 4 kHz
Shielded test leads for oscilloscope, resistance and continuity measurements
Resistance, continuity, diode and capacitance meter measurements
Power measurements (W, VA, VAR, PF, DPF, Hz)
Voltage, current and power harmonics
Check Industrial networks with BusHealth physical layer tests against defined reference levels
Save or recall data and instrument setups
Store instrument setups defined by a test sequence for routine maintenance or most often used test procedures.
External optically isolated USB interface to transfer, archive and analyze scope or meter data
Optional WiFi adapter connected to internal USB port to wirelessly transfer information to the PC, laptop or Fluke Connect® mobile app*
FlukeView® ScopeMeter® Software for Windows®
Rugged design to withstand 3g Vibration, 30g shock, and rated IP51 according to EN/IEC60529
Highest safety rating in the industry: safety rated for CAT IV 600 V
Li-Ion rechargeable battery, seven-hours operation (with four-hour charge time)

*Not all models are available in all countries. Check with your local Fluke representative.

Standard accessories

Model Name	Description

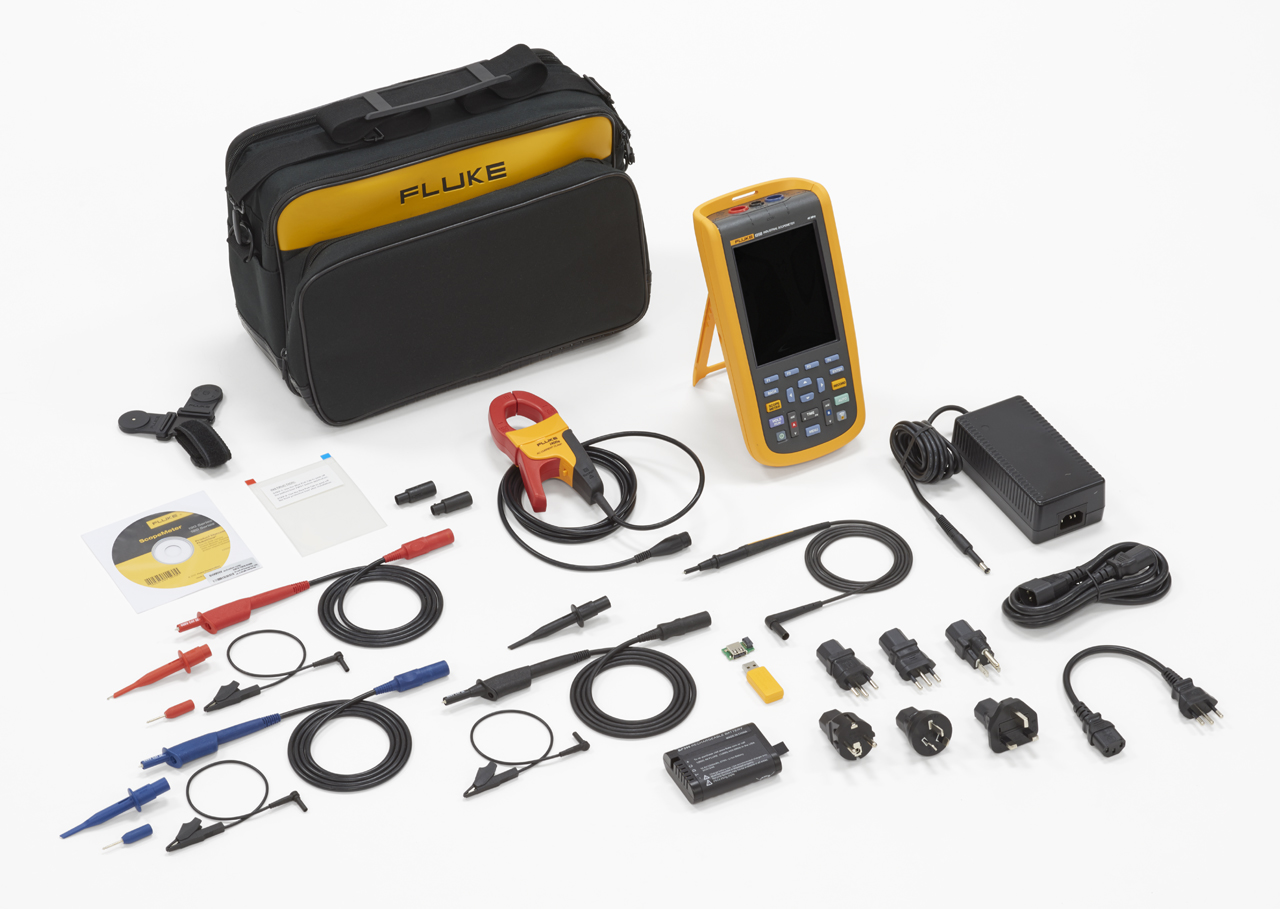

Fluke 125B	Industrial ScopeMeter® Hand-Held Oscilloscope (40 MHz) Includes: Fluke 125B Hand-Held Oscilloscope Shielded Test Leads with Black Ground Leads Test Lead Black (for Grounding) Hook Clips (red, blue) Banana-to-BNC Adapters (black, x1) 10:1 Voltage Probe i400s AC Current Clamp USB Angled Adapter WiFi USB Adapter* Switch Mode Power Supply, Adapter/Battery Charger Rechargeable Li-ion Battery Pack
Fluke 125B/S	Industrial ScopeMeter® Hand-Held Oscilloscope (40 MHz) Includes: Fluke 125B Hand-Held Oscilloscope Shielded Test Leads with Black Ground Leads Test Lead Black (for Grounding) Hook Clips (red, blue) Banana-to-BNC Adapters (black, x1) 10:1 Voltage Probe i400s AC Current Clamp USB Angled Adapter WiFi USB Adapter* Switch Mode Power Supply, Adapter/Battery Charger Rechargeable Li-ion Battery Pack Soft Carrying Case Magnetic Hanger FlukeView® ScopeMeter® Software for Windows® Screen Protector
Fluke 124B	Industrial ScopeMeter® Hand-Held Oscilloscope (40 MHz) Includes: Fluke 124B Hand-Held Oscilloscope Shielded Test Leads with Black Ground Leads Test Lead Black (for Grounding) Hook Clips (red, blue) Banana-to-BNC Adapters (black, x1) 10:1 Voltage Probe USB Angled Adapter WiFi USB Adapter* Switch Mode Power Supply, Adapter/Battery Charger Rechargeable Li-ion Battery Pack
Fluke 124B/S	Industrial ScopeMeter® Hand-Held Oscilloscope (40 MHz) Includes: Fluke 124B Hand-Held Oscilloscope Shielded Test Leads with Black Ground Leads Test Lead Black (for Grounding) Hook Clips (red, blue) Banana-to-BNC Adapters (black, x1) 10:1 Voltage Probe USB Angled Adapter WiFi USB Adapter* Switch Mode Power Supply, Adapter/Battery Charger Rechargeable Li-ion Battery Pack Soft Carrying Case Magnetic Hanger FlukeView® ScopeMeter® Software for Windows® Screen Protector
Fluke 123B	Industrial ScopeMeter® Hand-Held Oscilloscope (20 MHz) Includes: Fluke 123B Hand-Held Oscilloscope Shielded Test Leads with Black Ground Leads Test Lead Black (for Grounding) Hook Clips (red, blue) Banana-to-BNC Adapters (black, x1) USB Angled Adapter WiFi USB Adapter* Switch Mode Power Supply, Adapter/Battery Charger Rechargeable Li-ion Battery Pack
Fluke 123B/S	Industrial ScopeMeter® Hand-Held Oscilloscope (20 MHz) Includes: Fluke 123B Hand-Held Oscilloscope Shielded Test Leads with Black Ground Leads Test Lead Black (for Grounding) Hook Clips (red, blue) Banana-to-BNC Adapters (black, x1) USB Angled Adapter WiFi USB Adapter* Switch Mode Power Supply, Adapter/Battery Charger Rechargeable Li-ion Battery Pack Soft Carrying Case Magnetic Hanger FlukeView® ScopeMeter® Software for Windows® Screen Protector

Recommended options

Current clamps
80i-110s	80i-110s AC/DC Current Probe (100 A)
i1010	i1010 AC/DC Current Clamp
i30	Fluke i30 AC/DC Current Clamp
i400s	i400s AC Current Clamp
Fluke i410	AC/DC Current Clamp
i1000s	i1000s AC Current Clamp (1000 A)
i200s	i200s AC Current Clamp
i3000s	i3000s AC Current Clamp
i3000s Flex-24	i3000s Flex-24 AC Current Clamp, 610 mm (24 in.)
i3000s Flex-36	i3000s Flex-36 AC Current Clamp, 915 mm (36 in.)
i310s	i310s Current Probe
i5S	i5S AC Current Clamp
