FLUKE TiX560 Infrared Camera 320x240

Code: FLUKE TiX560




Datasheet PDF, 1.8 Mb

Description

Models:


Fluke TiX500 320x240 pixels, -20 °C..+650 °C

Fluke TiX520 320x240 pixels, -20 °C..+850 °C

Fluke TiX560 320x240 pixels, -20 °C..+1200 °C

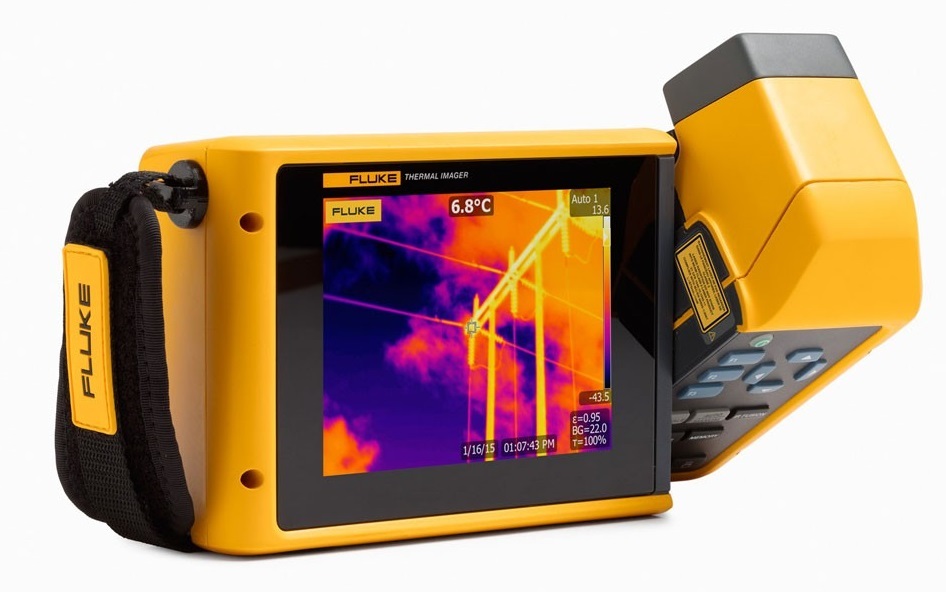

Fluke TiX560 Infrared Camera








  • The largest 5.7 inch responsive LCD touchscreen for a 320x240 infrared camera
  • 180° articulating lens for those tough shots
  • Premium image quality with leading spatial resolution for a 320x240 infrared camera¹
  • Get up to 4 times the resolution and pixels than standard mode with SuperResolution (up to 307,200 pixels)
  • LaserSharp® Auto Focus - utilizing precision laser technology, focus on your target with pinpoint accuracy and get the correct image and temperature measurements you need
  • Built-in laser distance meter - calculates the distance to your designated target up to 100 feet (30 meters) and displays the distance on the image
  • Quick and easy in-field analysis with IR-Fusion® technology and advanced touchscreen functions:
    • Continuous level and span adjustment
    • Filter mode for improved thermal sensitivity
  • Post capture image editing includes:
    • Emissivity
    • Background temperature
    • Transmissivity
    • Palettes
    • Color alarms
    • IR-Fusion
    • Enable/disable markers
  • Connect to the largest network of wireless test and measurement tools with Fluke Connect™ (not available in all countries)
  • Temperature measurements up to 1200 °C
  • Light and ergonomic design with neck and hand strap for all day use
  • Optional field installable wide angle and telephoto lenses








Standard accessories

  • Thermal imager with standard infrared lens
  • Ac power supply and battery pack charger (including universal ac adapters)
  • Two, rugged lithium ion smart battery packs
  • USB cable
  • HDMI video cable
  • Bluetooth headset (where available)
  • Rugged, hard carrying case
  • Adjustable neck and hand strap
  • Flash drive with SmartView® Software and user manual
  • Warranty registration card and calibration certificate







Recommended options

FLK-LENS/TELE2

2 teleobiective IR



FLK-LENS/4XTELE2

4 teleobiective IR



BOOK-ITP

Introducere în principiile termografiei



FLK-LENS/WIDE2

Obiectiv IR cu unghi larg



FLK-LENS/25MAC2

Obiectiv IR macro, 25 microni
