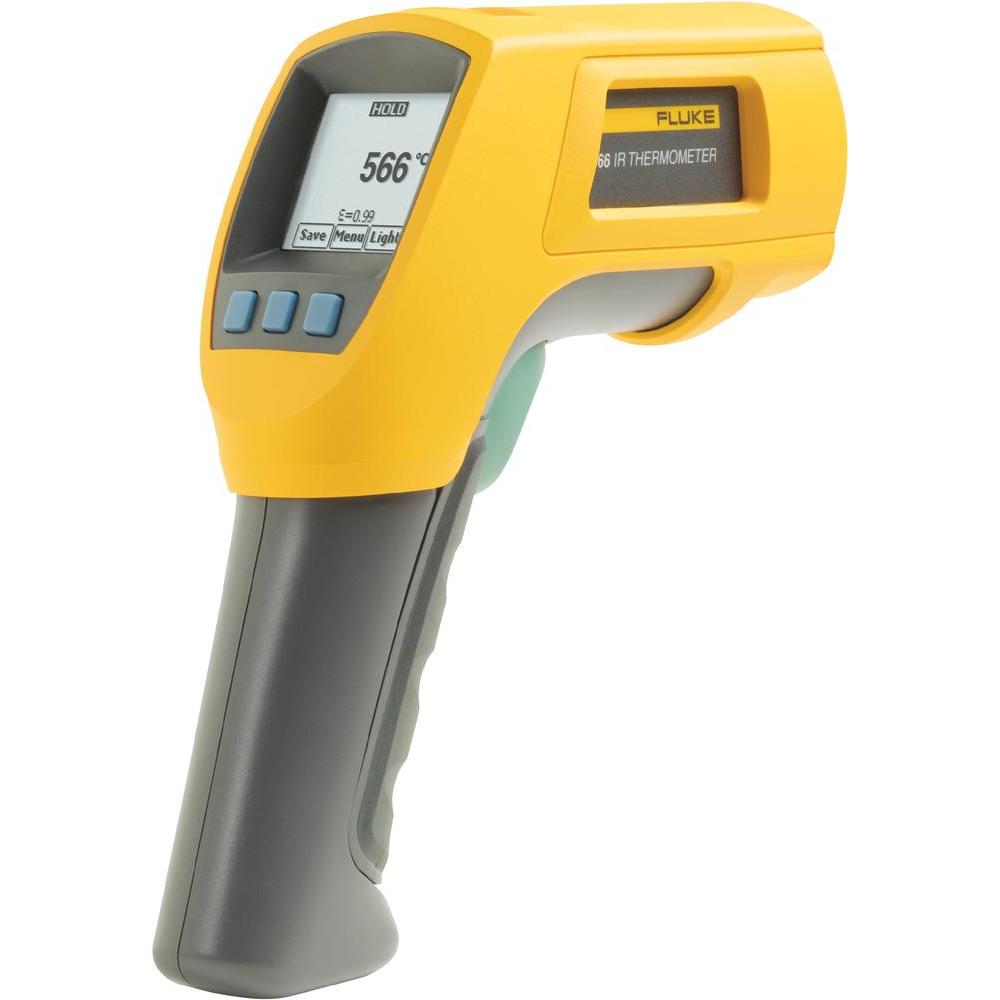

Infrared Thermometer with Contact Thermocouple Fluke 566/ Fluke 568

Code: Fluke 566, Fluke 568




Datasheet PDF, 0.23 Mb

Description

Two-in-one IR and contact thermometers with an innovative dot matrix display.

With a simple, 3-button on-screen menu interface (in 6 languages) the Fluke 568 and 566 digital laser thermometers make even complex measurements easy. Quickly navigate advanced features to adjust emissivity, start data logging, or turn on and off alarms - with just a few pushes of a button.

With a rugged, easy-to-use, ergonomic design, the Fluke 568 and 566 two-in-one contact and non contact thermometers can stand up to tough industrial, electrical, and mechanical environments. These tools go beyond other IR thermometers (or pyrometers), helping you work more efficiently in more applications.





  • Measure -40 °C to 800 °C /-40 °F to 1472 °F (568) or -40 °C to 650 °C/-40 °F to 1202 °F (566)
  • Easily access advanced features with the soft-key buttons and dot-matrix display
  • Measure smaller objects from further away, with a distance-to-spot ratio of 50:1 (568) or 30:1 (566)
  • Compatibility with all standard miniconnector Type-K thermocouples allow you to preserve your thermocouple investments
  • Confidently measure a wide variety of surfaces, with the adjustable emissivity feature, including a built-in material table
  • Capture multiple points of data (up to 99 with the 568, and 20 with the 566), for downloading and recalling later
  • Easily adapt to lighting conditions with 2 levels of backlight
  • Audible and visual alarms instantly alert you to measurements outside of your set limits
  • Quickly identify problems with the MIN, MAX, AVG, and DIF functions
  • Make contact thermometer measurements right away with the included Type-K thermocouple bead probe
  • Confidently troubleshoot equipment with 1 % measurement accuracy
  • Versatile interface with 6 languages from which to choose





Added functionality available only on the 568:

  • Easily trend and analyze data with included FlukeView® Forms software
  • Quickly download stored data with USB connection
  • See your data right away without leaving the site, using the USB and your laptop
  • Extend your battery life by powering the digital thermometer from your laptop via the USB


Standard accessories

Infrared and Contact Thermometer
Fluke 566 includes:

  • Thermocouple K bead probe
  • Durable hard case
  • 2 AA batteries
  • Getting Started guide in 6 languages
  • User’s Manual on CD in 6 languages (English, Spanish, French, German, Portuguese, and Simplified Chinese)
  • 2-year warranty





Infrared and Contact Thermometer
Fluke 568 includes:

  • Thermocouple K bead probe
  • Durable hard case
  • 2 AA batteries
  • Getting Started guide in 6 languages
  • USB cable
  • FlukeView® Forms software on CD
  • User’s Manual on CD in 6 languages (English, Spanish, French, German, Portuguese, and Simplified Chinese)
  • 2-year warranty


Recommended options

Temperature

80PK-11

80PK-11 Type-K Flexible Cuff Thermocouple Temperature Probe

80PK-22

80PK-22 Immersion Probe

80PK-24

80PK-24 Air Probe

80PK-25

80PK-25 Piercing Probe

80PK-26

80PK-26 General Purpose Probe

80PK-27

80PK-27 Industrial Surface Probe

80PK-8

80PK-8 Pipe Clamp Temperature Probe (Type K)

80PK-9

80PK-9 General Purpose Probe (Type K)

80PK-EXT

80PK-EXT Extension Wire Kit (Type K)



Cases and Holsters

H6

H6 Infrared Thermometer Holster
