Fluke 190-504: 4-channels 500 MHz
Fluke 190-204: 4-channels 200 MHz
Fluke 190-202: 2-channels 200 MHz
Fluke 190-104: 4-channels 100 MHz
Fluke 190-102: 2-channels 100 MHz
Fluke 190-062: 2-channels 60 MHz

Fluke 190 Series II - 20 years of ScopeMeter® Test Tool Innovation.

As the first two and four-channel portable scopes safety rated CAT III 1000V / CAT IV 600V, the Fluke ScopeMeter® 190 Series II combines an unprecedented level of performance, ruggedness, and portability. You can choose from 60MHz, 100MHz, 200MHz or 500MHz bandwidth models, with real-time sampling rates up to 5 GS/s and 200 ps resolution to capture noise and other disturbances. All models feature deep memory""up to 10,000 samples per channel"" so you can examine very small parts of the waveform in detail. And all models are IP-51 rated to withstand dust, drips, humidity, and wide temperature variations. Fluke ScopeMeter test tools are hand-held battery operated, designed to meet the demands of field service professionals.

See More, Fix More with the Two and Four-Channel CAT IV Rated Fluke ScopeMeter 190 Series II

The Fluke ScopeMeter 190 Series II combines the highest safety ratings and rugged portability with the high performance of a bench oscilloscope. Designed for plant maintenance engineers and technicians, these tough ScopeMeter test tools go into harsh, dirty, and hazardous industrial conditions to test everything from microelectronics to power electronics applications.

The 190 Series II is the one test tool you will reach for to tackle just about any troubleshooting task. They include a multimeter, TrendPlotâ�� and ScopeRecordâ�� roll paperless recorder modes and hands free operation with Connect-and-Viewâ�� triggering, and much more:

Two or four electrically isolated inputs
CAT III 1000V / CAT IV 600V safety rated
Choose from 60 MHz, 100MHz, 200MHz or 500MHz bandwidth models
Fast sampling rate, up to 5GS/s with up to 200 ps resolution (Depending on model and channels used)
Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
Dedicated 5000 Count digital multimeter in two-channel models
Four meter measurements via scope BNC inputs in four-channel models
Connect-and-Viewâ�� continuous auto-trigger, single shot, pulse width, and video triggering
ScopeRecord roll mode, capture waveform sample data for up to 48 hours
TrendPlot, trend measurement readings for up to 22 days
Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
IP-51 rated for dust and drip proof to withstand harsh environments
Isolated USB ports for memory devices and PC connectivity
Li-Ion battery for extended operating timespan:
- 190-X04, four-channel models up to 7 hour (BP291 included standard)
- 190-X02, two-channel models up to 4 hours (BP290 included standard) or up to 8 hour with optional BP291
- Charge spare battery using optional external battery charger EBC290
Easy-access battery door to make it easy to swap batteries
A handy slot to tether and lock down the oscilloscope while unattended using a standard Kensington® lock

Gain Four Times the Diagnostic Power Plus CAT IV Safety Rating

The Fluke ScopeMeter 190 Series II portable scopes are double-insulated two and four-channel floating oscilloscopes, safety rated for measurements in CAT III 1000V/CAT IV 600V environments

Specifications
Bandwidth	Fluke 190-504: 500 MHz Fluke 190-204: 200 MHz Fluke 190-202: 200 MHz Fluke 190-104: 100 MHz Fluke 190-102: 100 MHz Fluke 190-062: 60 MHz
Number of channels	Fluke 190-504: 500 MHz: 4 channels Fluke 190-204: 200 MHz: 4 channels Fluke 190-202: 200 MHz: 2 channels Fluke 190-104: 100 MHz: 4 channels Fluke 190-102: 100 MHz: 2 channels Fluke 190-062: 60 MHz: 2 channels
Real-time sample rate	Fluke 190-504: 5 GS/s Fluke 190-204: 2.5 GS/s Fluke 190-202: 2.5 GS/s Fluke 190-104: 1.25 GS/s Fluke 190-102: 1.25 GS/s Fluke 190-062: 625 MS/s
Inputs	Fluke 190-X04: 4x BNC input for scope and meter measurements Fluke 190-X02: 2x BNC input plus 1x DMM input
Independently floating isolated inputs	Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground
Timebase range	1 ns/div to 4s/div (190-504, 500 MHz model) 2 ns/div to 4s/div (190-20X, 200 MHz models) 5 ns/div to 4s/div (190-10X, 100 MHz models) 10 ns/div to 4s/div (190-062, 60 MHz model)
Input sensitivity	2 mV-100 V/div plus variable attentuation
Trigger types	Connect-and-Viewâ��, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle
Trigger source	Fluke 190-X02: 2x BNC input or external via DMM input Fluke 190-X04: 4x BNC input
Glitch capture	8 ns
Scope measurements	Cursor: 7 Automatic: 30
Maximum record length	ScopeRecord mode: 30,000 pts per input Scope mode: 10,000 pts per input
Persistence	Digital persistence giving analog oscilloscope-like waveform decay
Waveform compare	Waveform reference with automatic Pass/Fail testing

DMM Specifications (Two-Channel Models)
Meter inputs (also used as External Trigger Input for the Oscilloscope Mode)	4 mm banana inputs, fully isolated from scope inputs and from scope ground
Maximum resolution	5000 counts
Measurements	Vdc, Vac rms, Vac+dc rms, Resistance, Continuity, Diode Test, Current (through clamp or shunt), Temperature ºC or ºF (using optional converter)
Memory locations	Screen + Setup: 30 Waveform memories plus 10 recording memories plus 9 screencopy memories.
Display	153 mm full color LCD with fast update rate

Environmental Specifications
Operating temperature	0ºC to 40ºC Including Batteries 0ºC to 50ºC Excluding Batteries
Storage temperature	-20�°C to +60�°C
Operating altitude	Up to 2,000 m (6666 ft) for CAT IV 600 V/ CAT III 1,000 V Up to 3,000 m (10,000 ft) for CAT III 600 V/ CAT II 1,000 V

Safety Specifications
Electrical safety	1,000V CAT III/600V CAT IV (EN61010-1)

Mechanical and General Specifications
Size	270 x 190 x 70 mm
Weight	2.2 kg
Warranty	Three-years on main instrument
Li-Ion battery	Fluke 190-XX2: BP290 (2400mAh) Fluke 190-XX4: BP291 (4800mAh)

Standard accessories

Model Name	Description
Fluke-190-504/S	Color ScopeMeter, 500 MHz, 4 channels plus DMM/Ext.input, with SCC-290 Kit
Fluke-190-504	Color ScopeMeter, 500 MHz, 4 channels plus DMM/Ext.input
Fluke-190-502	Color ScopeMeter, 500 MHz, 2 channels plus DMM/Ext.input
Fluke-190-502/S	Color ScopeMeter, 500 MHz, 2 channels plus DMM/Ext.input, with SCC-290 Kit

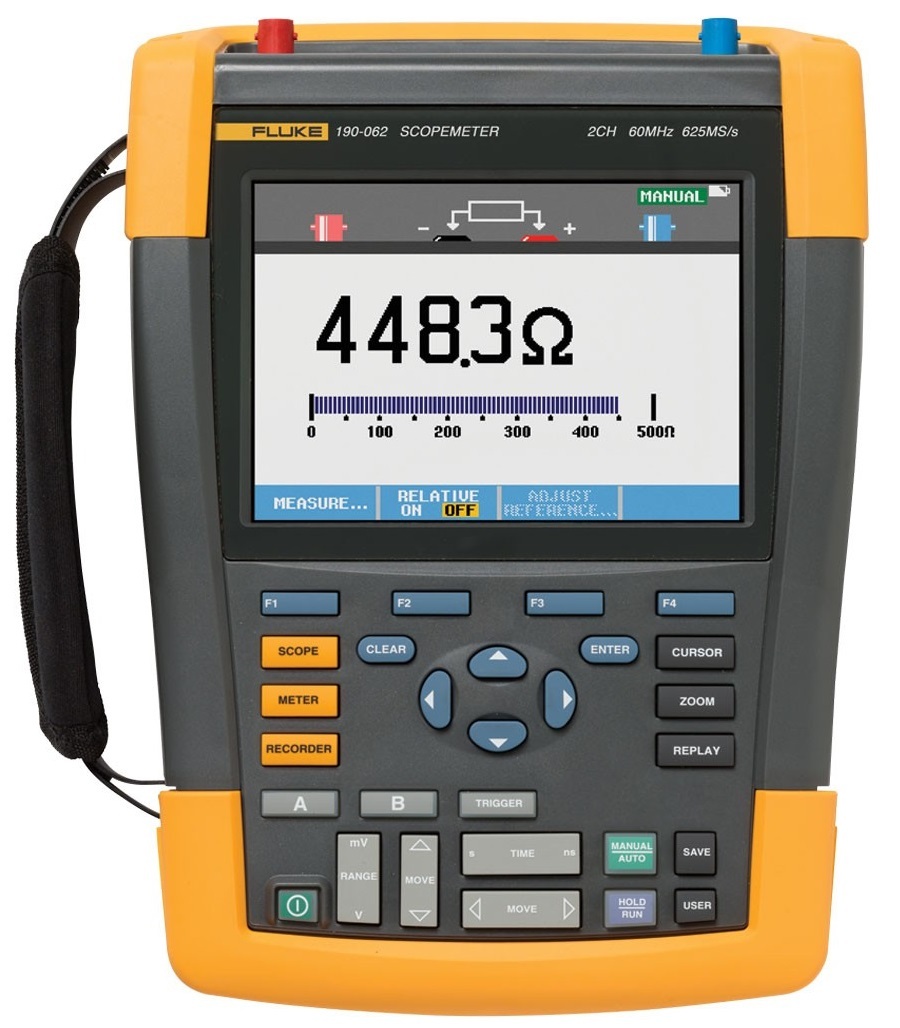

Fluke-190-062	Color ScopeMeter, 60 MHz, 2 channels plus DMM/Ext.input
Fluke-190-062/S	Color ScopeMeter, 60 MHz, 2 channels plus DMM/Ext.input, with SCC-290 Kit
Fluke-190-102	Color ScopeMeter, 100 MHz, 2 channels plus DMM/Ext.input
Fluke-190-102/S	Color ScopeMeter, 100 MHz, 2 channels plus DMM/Ext.input with SCC-290 Kit
Fluke-190-104	Color ScopeMeter, 100 MHz, 4 channels plus DMM/Ext.input
Fluke-190-104/S	Color ScopeMeter, 100 MHz, 4 channels plus DMM/Ext.input with SCC-290 Kit
Fluke-190-202	Color ScopeMeter, 200 MHz, 2 channels plus DMM/Ext.input
Fluke-190-202/S	Color ScopeMeter, 200 MHz, 2 channels plus DMM/Ext.input, with SCC-290 Kit
Fluke-190-204	Color ScopeMeter, 200 MHz, 4 channels plus DMM/Ext.input
Fluke-190-204/S	Color ScopeMeter, 200 MHz, 4 channels plus DMM/Ext.input, with SCC-290 Kit

Included Accessories
Two-channel models	VPS410 Voltage Probe Sets (one red, one blue) TL175 TwistGuardâ�� Safety Designed Test Lead Set (red and black) BC190 Battery Charger/Mains Adapter BP290 2400 mAh Li-Ion Battery Handstrap (affixed to instrument) Hangstrap Multi-Language User Manuals on CD-Rom FlukeView ScopeMeterDdemo Package (restricted functionality) USB Interface Cable
Four-channel models	VPS410 Voltage Probe Sets (one red, one blue, one grey, one green) BC190 Battery Charger/Mains Adapter BP291 4800 mAh High Capacity Li-Ion Battery Handstrap (affixed to instrument) Hangstrap Multi-Language User Manuals on CD-Rom FlukeView ScopeMeter Demo Package (restricted functionality) USB Interface Cable
Warranty	One year on accessories

Recommended options

Options
CS20MA	CS20MA Current Shunt, 4~20 mA, 30V CAT III

Batteries, Chargers & Adapters
BP290	2400 mAh Li-ion battery for Fluke 190 Series II
BP291	4800 mAh High capacity Li-ion battery ) for Fluke 190-seriesII
BC190	BC190 Line Voltage Adapter / Battery Charger
EBC290	External Battery Charger for charging BP290 or BP291 outside the instrument

Cases and Holsters
C195	C195 Soft Case
SCC290	FlukeView Software for ScopeMeter (SW90W) and Carrying Case (C290) Kit
C290	Hard Shell Protective Carrying Case for Fluke 190-series II

Current clamps
80i-110s	80i-110s AC/DC Current Probe (100 A)
i1010	i1010 AC/DC Current Clamp
i30s	Fluke i30s AC/DC Current Clamp
i400s	i400s AC Current Clamp
Fluke i410	AC/DC Current Clamp
i1000s	i1000s AC Current Clamp (1000 A)
i2000 flex	i2000 flex AC Current Clamp
i200s	i200s AC Current Clamp
i3000s	i3000s AC Current Clamp
i5S	i5S AC Current Clamp
i6000sFlex	i6000sFlex AC Current Probe

Options
HH290	Hanging Hook for ScopeMeter 190-Series II

Software
SW90W	SW90W FlukeView ScopeMeter Software (full version)

Test Leads, Probes and Clips
AS400	AS400 Probe accessory extension set 3
PM9093	PM9093 Male BNC to Dual Female BNC Adapter
PM9096/201	PM9096/201 Secondary Ignition Pickup, 1000:1
RS400	RS400 Probe Accessory Replacement Set
RS500	Probe Accessories Replacement Set
VPS410-B	ScopeMeter Industrial Voltage Probe-set, blue, 10:1, 300 MHz, 1000V CAT III, 600V CAT IV
VPS410-V	ScopeMeter Voltage Probe-set, green, 10:1, 300 MHz, 1000V CAT III, 600V CAT IV
VPS410-G	ScopeMeter Voltage Probe-set, grey, 10:1, 300 MHz, 1000V CAT III, 600V CAT IV
VPS410-R	ScopeMeter Voltage Probe-set, red, 10:1, 300 MHz, 1000V CAT III, 600V CAT IV
TRM50	Coaxial Feed-through BNC Male to BNC Female Cable Terminator. Consists of Set of 2, 50Ohm, 1000V CAT III, Max Power 1W
VPS101	VPS101 "" Voltage Probe Set, 1:1, one black
VPS410-II-B	ScopeMeter Industrial Voltage Probe-set, blue, 10:1, 500 MHz
VPS410-II-G	ScopeMeter Industrial Voltage Probe-set, grey, 10:1, 500 MHz
VPS410-II-R	ScopeMeter Industrial Voltage Probe-set, red, 10:1, 500 MHz
VPS410-II-V	ScopeMeter Industrial Voltage Probe-set, green, 10:1, 500 MHz
VPS420-B	Ruggedized High-Working ScopeMeter Voltage Probe-set, blue/black, 100:1, 150 MHz, 1000V CAT III / 600V CAT IV, working voltage (voltage between probe tip and reference lead): 2000V CAT III / 1200V CAT IV.
VPS420-G	Ruggedized High-Working ScopeMeter Voltage Probe-set, grey/black, 100:1, 150 MHz, 1000V CAT III / 600V CAT IV, working voltage (voltage between probe tip and reference lead): 2000V CAT III / 1200V CAT IV.
VPS420-R	Ruggedized High-Working ScopeMeter Voltage Probe-set, red/black, 100:1, 150 MHz, 1000V CAT III / 600V CAT IV, working voltage (voltage between probe tip and reference lead): 2000V CAT III / 1200V CAT IV.
VPS420-V	Ruggedized High-Working ScopeMeter Voltage Probe-set, green/black, 100:1, 150 MHz, 1000V CAT III / 600V CAT IV, working voltage (voltage between probe tip and reference lead): 2000V CAT III / 1200V CAT IV.
VPS510-B	ScopeMeter® Compact Probe for electronic applications, blue, 10:1, 500 MHz, 300 V CAT III
VPS510-G	ScopeMeter® Compact Probe for electronic applications, grey, 10:1, 500 MHz, 300 V CAT III
VPS510-R	ScopeMeter® Compact Probe for electronic applications, red, 10:1, 500 MHz, 300 V CAT III
VPS510-V	ScopeMeter® Compact Probe for electronic applications, green, 10:1, 500 MHz, 300 V CAT III

Pressure
PV350	PV350 Pressure Vacuum Module

Test Leads

TL175

TL175 TwistGuardâ�� Test Leads

TL220

SureGripâ�� Industrial Test Lead Set includes:

AC220 SureGripâ�� Alligator Clip Set
TP220 SureGripâ�� Industrial Test Probe Set
TL224 SureGripâ�� Silicone Test Lead Set (straight to right)
One year warranty

TL224

TL224 SureGripâ�� Insulated Test Leads

STL120-III

STL120-III Shielded Test Leads Set

TAS90

TAS90 Shielded Test Lead Accessory Set
