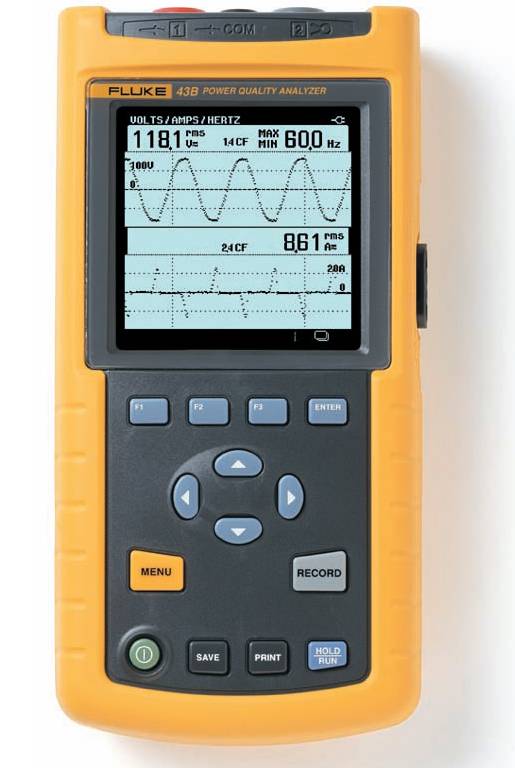

Fluke 43B Power Quality Analyzer

Code: Fluke 43B




Datasheet PDF, 1.84 Mb


Description

Power Quality
  • Analyzer Measures power (W, VA, VAR) and power factor (PF, DPF)
  • Calculates power and power factor on balanced 3-phase loads
  • Voltage, current and power harmonics up to the 51st.
  • Measures sags and swells on a cycle-by-cycle basis for up to 24 hours
  • Automatically captures up to 40 transients as fast as 40 ns
  • Measures motor inrush and analyzes using cursors
  • Covers broad frequency range (10 to 400 Hz)



Oscilloscope
  • Dual-channel scope
  • Up to 20 MHz bandwidth with FREE VPS40 Voltage Probe (Fluke 43B only)
  • "Connect and View" automatic triggering for an instant stable waveform display
  • On-screen cursors to help analyze signals



Multimeter
  • Measures resistance, continuity and capacitance, and tests diodes
  • Measures temperature with optional temperature probes (Fluke 61 IR Thermometer supplied for FREE with Fluke 43B only)



Recorder Records up to 2 parameters for up to 16 days

  • All parameters measured can be recorded including V/A/Hz, all aspects of power and harmonics and all scope measurements
  • Stores up to 4000 voltage events with the VR101S (Fluke 43Kit)



Ease of use
  • Get immediate inside in your power system by simply clicking through the most commonly used power quality modes with just a simple keystroke
  • Just choose the application from the menu and it sets-up automatically
  • 20 memories for storage of screens and data



General
  • Calculates three-phase power on balanced loads from a single-phase measurement
  • Measures power harmonics, and captures voltage sags, transients, and inrush currents
  • Monitoring functions help track intermittent problems and power system performance
  • Menus use familiar electrical terminology
  • Toggle through the most commonly used power quality modes with a single keystroke
  • Records two selectable parameters for up to 16 days
  • 20 measurement memories to save/recall screens and data with cursor readings
  • FlukeView Software can log harmonics and all other readings over time
  • FlukeView Software provides a complete harmonics profile up to the 51st harmonic
  • Measures resistance, diode voltage drop, continuity, and capacitance
  • NIMH Battery provides extended operating time of 6.5 hours
  • Complete package with voltage probes and 400 A current clamp, FlukeView Software and optically isolated interface cable



Harmonics

  • Voltage, current, and power harmonics
  • Up to 51st harmonic
  • Total harmonic distortion (THD)
  • Phase angle of individual harmonics



Power

  • One and three phase power on balanced loads
  • Watts, power factor, displacement power factor, VA and VAR
  • Voltage and current waveforms



Three phase

  • On-screen graphics show you how to set up 3-phase power measurements



Sags and swells

  • Continuously measure volts and current on a cycle-by-cycle basis for up to 16 days
  • Use cursors to read time and date of sags and swells



Transients

  • Catch voltage transients and waveform distortion
  • Catch and save up to 40 transients
  • Correlate the cause of transient with time and date stamps



Volts/Ampères/Hertz

  • Voltage and current waveforms
  • True RMS voltage and current
  • Frequency

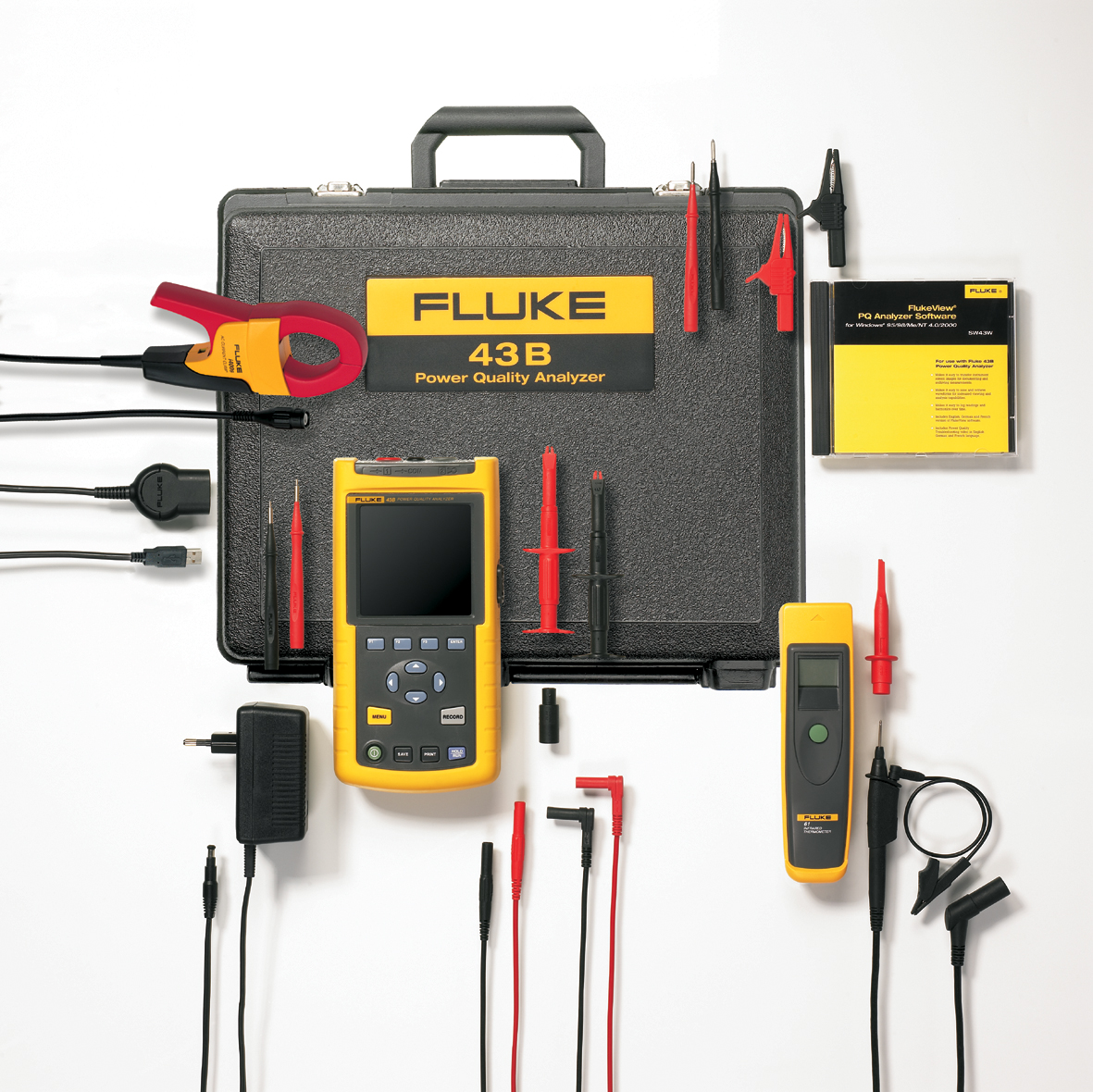

Standard accessories

  • AC20 Industrial Test Clips
  • BB120 Banana-to-BNC Adapter
  • BP120MH Ni-MH Battery Pack (installed)
  • PM 8907 Battery Charger/Line Voltage Adapter
  • TL24 Test Leads
  • TP4 Slim Reach Test Probe Set (4 mm)
  • Users Manual / Application Guide (CD-ROM)
  • Getting started booklet

Fluke 43B also include:
  • + Fluke 61 IR Thermometer
  • + VPS40 Voltage Probe
  • AB200 Large Jaw Alligator Clips
  • C120 Hard Case
  • OC4USB Interface/Adapter Cable
  • SW43W FlukeView® Software for Windows + Power Quality Video
  • TP1 Slim Reach Test Probe Set (flat blade)


Recommended options

TL220

SureGrip™ Industrial Test Lead Kit

TL238

Test Lead Set for High Energy Environments

TLK225

SureGrip™ Master Accessory Kit

AC220

SureGrip™ Alligator Clip Set

AC283

SureGrip™ Pincer Clips

AC285

SureGrip™ Alligator Clip Set

TL71

Test Lead Set

TL75

Hard Point Test Lead Set

TP220

SureGrip™ Industrial Test Probes

VPS100

Voltage Probe Set, 100 MHz (red & gray)



More products FLUKE

FLUKE 1654B MULTIFUNCTION INSTALLATION TESTER 50V-1000V

• Test voltage: 50V, 100V, 250V, 500V, 1000V
• Two measurements at once and a dual display
• PEFC/PSC and loop impedance
• Fast voltage measurement between L-N, L-PE and N-PE
• PASS/FAIL indication for RCD test results
• Earth resistance



CURRENT CLAMP METER 400 A FLUKE 322

• Measures AC current to 400 A with 0.1 A resolution
• Measures AC current to 40 A with 0.01 A resolution, precise low current measurements
• Measures AC volts to 600 V, with 0.1 V resolution to 400.0 V
• Measures DC volts to 600 V, with 0.1 resolution to 400.0 V
• Resistance measurement to 400 O
• Precise measurements with 1.8% basic accuracy



PORTABLE VIBRATION TESTER ANALYZER FLUKE 810

• On-board identification and location of the most common mechanical faults (bearings, misalignment, unbalance, looseness) focus maintenance efforts on root cause, reducing unplanned downtime
• Fault severity scale with four severity levels helps you prioritize maintenance work
• Repair recommendations advise technicians on corrective action
• On-board context sensitive help provides real-time tips and guidance to new users
• 2 GB expandable on-board memory provides enough space for your machinery’s data



FLUKE TI300 INFRARED CAMERA 240X180 RESOLUTION

• 240x180 Detector resolution
• Ruggedized high resolution 640x480 capacitive touch screen for quick menu navigation
• Range: -20 °C si +650 °C
• Precision : ± 2 °C sau 2%
• Sensibility : = 0,05 °C



DOCUMENTING PROCESS CALIBRATOR-HART FLUKE 753

• Measure volts, mA, RTDs, thermocouples, frequency
• ohms to test sensors, transmitters and other instruments
• Source/simulate volts, mA, thermocouples, RTDs, frequency, ohms, and pressure
• Power transmitters during test using loop supply with simultaneous mA measurement
• HART Capabilities



PRESSURE CALIBRATOR FLUKE 718

• Pressure Source and Milliamp Measurement
• Best in class mA accuracy of 0.015 %
• 1, 30, 100 & 300 PSI ranges available



FLUKE 1577 MEGOHMMETER INSULATION MULTIMETER 500/ 1000V

• Insulation test: 0.1 MO to 600 MO
• Insulation test voltages: 500 V, 1000 V



MULTIFUNCTION PROCESS CALIBRATOR FLUKE 725

• 0 to 100 mV, 0 to 30 V DC Voltage measure
• 0 to 100mV, 0 to 10 V DC Voltage source / simulate
• 0 to 24 mA Current measure / source / simulate
• 0 to 3200 O Resistance measure / source / simulate
• 1 to 10 kHz Frequency measure / source / simulate
• RTDs, thermocouples measure / source / simulate
• pressure measure

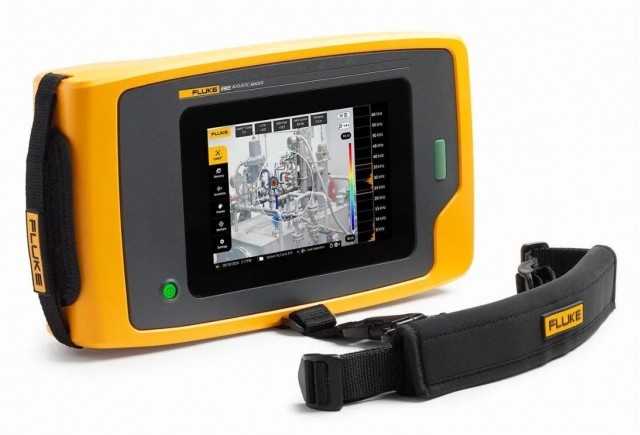

FLUKE II905 ACOUSTIC CAMERA IMAGER FOR INSPECTINA AND DETECTION COMPESSED AIR
