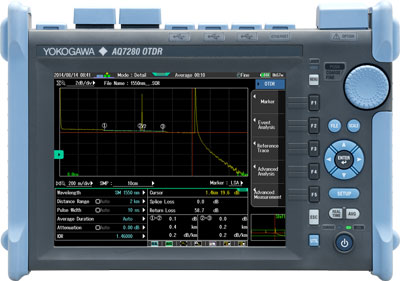

YOKOGAWA AQ7280 OTDR Reflectometru modular testare fibra optica

Cod: YOKOGAWA AQ7280




Brosura produs PDF, 6.8 Mb

Descriere

The AQ7280 is the most flexible OTDR in our lineup due to a modular platform to create a variety of systems from a basic unit to units with filtered ports to test live traffic networks in applications from long haul, to metro, core and FTTH.
35+ years of OTDR expertise has enabled us to offer a unique multi-tasking feature that allows four distinct fibers to be tested simultaneously. Its intuitive icon-based touchscreen lets users perform measurements with ease, and the 15-hour battery life ensures uninterrupted usage in the field where the data can be conveniently transferred wirelessly.



Features:

  • Reliability: Robust design for operating under harsh field conditions. Proven operating system assuring stability, prompt response, and superior protection against software virus attacks.
  • Ease-Of-Use: Dual operation mode by multi-touch touchscreen and hard-key buttons. Fully automatic measurement and easy-to-read analysis reports through new software applications.
  • Speed: Lightning startup time. Multi-tasking operation to enhance productivity. Immediate reporting via wireless connectivity.



Enhancing productivity!
Managed by a highly efficient operating system, multiple functions can work simultaneously.
Now, users can perform OTDR measurements on a particular fiber core while simultaneously checking the power level and connector surface quality on others.



Touch screen and hard-key buttons!
Tap, swipe, pinch, or press. Choose between the high resolution 8.4" multi-touch capacitive touchscreen or the robust hard-key buttons in any combination desired.
OTDR operations have never been easier!



Under 10 seconds!
Thanks to the latest high speed hardware and a highly efficient operating system, the AQ7280 starts up from completely OFF to measurement-ready in seconds.
It's always ready when you are!
