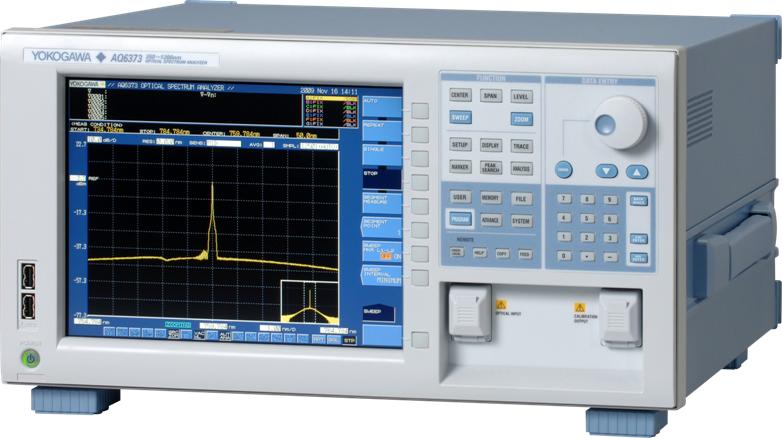

YOKOGAWA AQ6373B Analizor spectru optic vizibil 350 - 1200 nm

Cod: YOKOGAWA AQ6373B Visible Wavelength Optical Spectrum Analyzer 350 - 1200 nm




Brosura produs PDF, 4.95 Mb

Descriere

The AQ6373B is one of the latest additions to the AQ6370 Series of Optical Spectrum Analyzers. With the ability to provide high speed, accurate analysis of the short wavelength range between 350nm and 1200nm, this OSA is well suited for a broad range of applications. The AQ6373B can accelerate the development and manufacturing of short wavelength lasers, passive devices and LEDs as well as equipment that uses these devices for the biomedical, material processing, consumer product and telecommunications markets. With built in color analysis capabilities and remote command compatibility with the AQ6315, the AQ6373B provides an upgrade of capabilities, speed and performance for current AQ6315 users.



Features:

  • Wavelength range: 350 to 1200nm
  • Wavelength accuracy: ±0.05 nm
  • Wavelength resolution: 0.02 to 10 nm and 0.01nm (400 to 470nm)
  • Max safe input power: +20 dBm
  • Level sensitivity: -80 dBm
  • Dynamic range: ?60dB
  • Single-mode, Multimode, and Large-core fibers
  • Built-in optical alignment source
  • Wavelength calibration with an external reference source
  • Various analysis functions including the Color analysis function for VIS

High Resolution & High Dynamic Range
The advanced monochromator achieves high wavelength resolution and high close-in dynamic range. With the sharper spectral characteristics of the monochromator, spectral signals in close proximity can be separated clearly and measured accurately.

High Sensitivity
Weak optical signals can be measured accurately and quickly.
