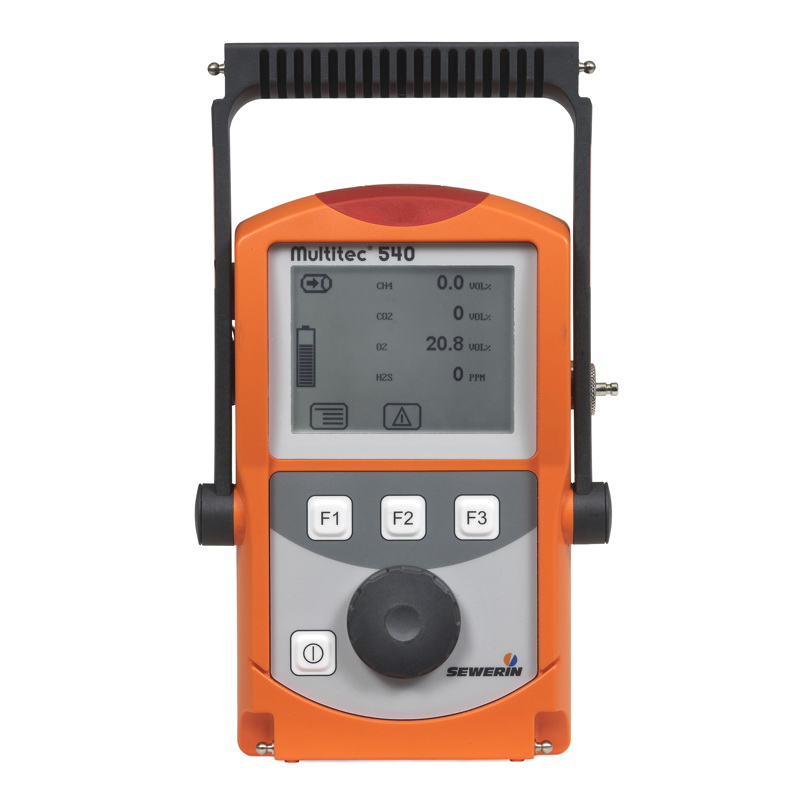

Sewerin Multitec 540 Analizor de gaze

Cod: Sewerin Multitec 540




Brosura produs PDF, 0.8 Mb


Descriere

Multiple gas measuring device with infrared sensors - optimised for biogas and landfill gas



Biological processes generate gas compositions that make special demands on measuring equipment.  The robust Multitec® 540 provides the ability to measure six gases simultaneously. The use of infrared measuring techniques for methane and carbon dioxide means that there is no possibility of misleading results due to interaction with other gases. This makes it ideal for use in waste disposal sites, sewage plants and biogas plants. A large display allows all parameters to be displayed simultaneously and quickly read from a single screen. Measurement data is stored in log files and can be transferred without difficulty to a PC over a USB link.



Features:

  • Intuitive, menu-driven user interface with jog dial and function keys
  • Large transflective display, very good readability in direct sunlight
  • Selective infrared sensors for hydrocarbons and carbon dioxide
  • Highly durable electrochemical sensors for oxygen and toxic gases
  • Power supplied by four replaceable AA-size rechargeable batteries or disposable batteries
  • Minimum seven hour battery life in operation, rapid charging in four hours
  • Explosion protection: TÜV 07 ATEX 553353 X,  II2G Ex d e ib IIB T4 Gb,
    IIC when used with the TG8 carrying bag
  • PC communication via USB port
  • Supporting bracket for carrying and positioning
  • Low weight (1,000 g) for maximum carrying ease





Alte produse SEWERIN

SEWERIN EX-TEC SNOOPER 4 DETECTOR SCAPARI GAZE

• Testing room air (house test)
• Large, illuminated LCD display
• Easy operation using three keys
• Self-test on start-up

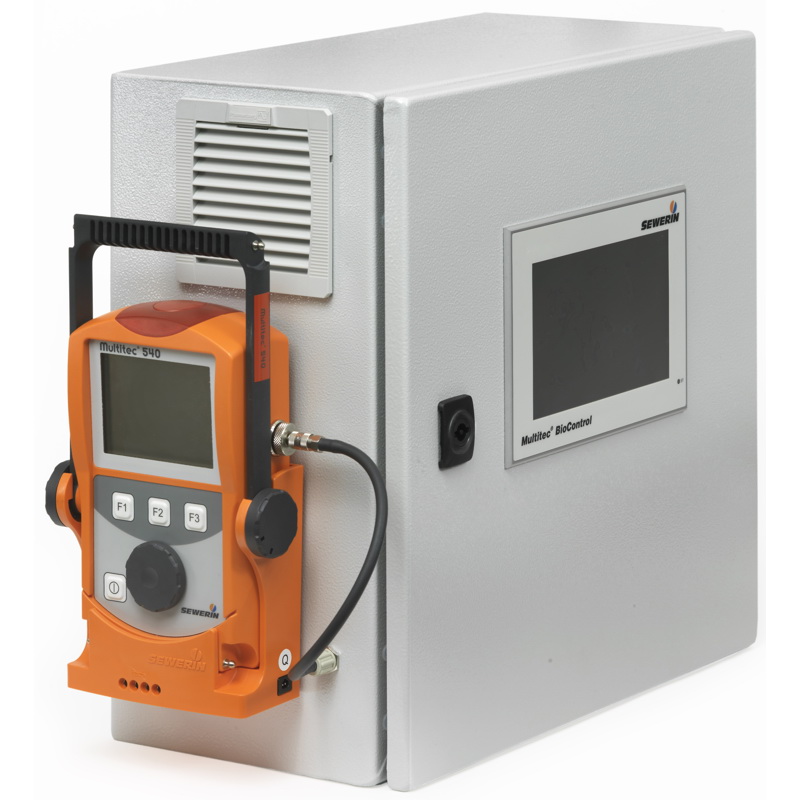

SEWERIN BIOCONTROL 4 AND 8 MONITORIZARE GAZ

• Save time and money whilst ensuring maximum safety by way of continuous automatic measurement
• Extremely user-friendly and individual configuration
• Process monitoring and optimisation (e.g. by substrate adjustment)
• Successfully improve gas quality and increase yield



SEWERIN SECURI SAT DETECTOR SCURGERI GAZE PE LAPTOP

• Simple and intuitive operation of the gas leak detector from a laptop
• Pipe network inspection in accordance with DVGW (German Technical and Scientific Association for Gas and Water) regulations G 465 ff. and G 466 f.
• Overview of the inspected routes in the route manager



SEWERIN MINILEC 4 TESTER SCAPARI GAZE

• Device software available in various languages
• PC software makes documentation and archiving easy
• Serviceability test: simultaneous display of pressure and flow
• Adjusted for CH4, C3H8, C4H10, H2, town gas, air



SEWERIN RMLD-IS DETECTOR SCURGERI GAZE CU LASER LA DISTANTA

• Measurement at a distance of up to 30 m
• No cross-sensitivity with respect to other hydrocarbons
• Integrate self test and adjustment function that guarantee correct functioning of the device.



SEWERIN SNOOPER MINI DETECTOR SCAPARI GAZE PORTABIL

• Replaceable sensor filter
• Very fast start-up time
• Audible signal: concentration-dependent and deactivation option
• LCD display illuminated during operation
• High performance, low price



SEWERIN MULTITEC 410 ANALIZOR GAZE

• Intuitive operating concept with jog dial, menu navigation and function keys
• Large-format transflective display with backlight
• Catalytic sensor with functional safety test for nonane (C9H20)
• Rapid charging in 3 hours, even without a charging station



SEWERIN MULTITEC 560 ANALIZOR DE GAZE

• EC type-examination certificate: TÜV 07 ATEX 553353 X
• Measuring function: BVS 09 ATEX G 001 X, PFG 08 G 002 X (applies to ExTox warning application for CH4, CO2, O2, CO, H2S)
• Minimum eight hour battery life in use, rapid charging in four hours



SEWERIN DP-IR™ (DETECTOR PAC-INFRARED) DETECTOR GAZE ULTRASENSIBIL

• Detection sensitivity of 1 ppm
• Does not required fuel gasSelective to methane
• Mechanical robustness
• Easy operation



SEWERIN MULTITEC 545 ANALIZOR DE GAZ

• Innovative operating concept with jog dial, menu navigation and function keys
• Large-format matrix display with backlight
• Selective infrared sensors for hydrocarbons and carbon dioxide
• EC sensor for hydrogen sulphide with wide measuring range (5000 ppm)
