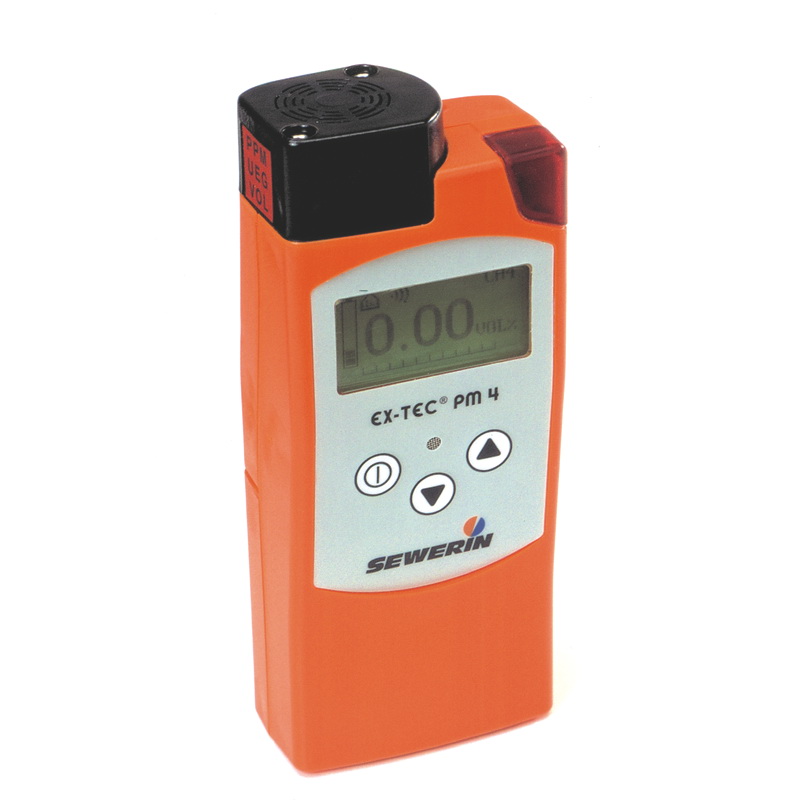

Sewerin EX-TEC PM4 Detector gaz cu alarma si masura concentratie

Cod: Sewerin EX-TEC PM-4 PM4 EXTEC




Brosura produs PDF, 0.25 Mb

Descriere

Gas detection, gas warning and gas concentration measuring device for working in the ppm, LEL and vol.% ranges.



The EX-TEC PM4 is a measuring device for gas detection in the ppm range, gas warning in the LEL range and gas concentration measurement in the vol.% range.

  • Simple operator guidance using selections from DVGW applications (German Technical and Scientific Association for Gas and Water)
  • Large, illuminated LCD display
  • Self-test on start-up
  • Easy operation using three keys
  • Visual and audible alarms
  • Adjustable alarm thresholds for each gas and measuring range
  • Temperature compensated sensors
  • Function menu for individual device configuration (PIN code protected)
  • Gas database with calibration for methane and other gases, e.g. propane, butane, hexane, nonane, hydrogen, kerosene
  • Adjustable test gas concentration
  • Passive explosion protection:
    EC type-examination certificate in accordance with ATEX 100a, guideline 94/9/EG
    Certificate no.: TÜV 09 ATEX 555077 X
    Identification: II2G Ex d e ib IIb T4
  • Active explosion protection:
    Function safety test in the "Warning" mode for methane (CH4), propane (C3H8) and nonane (C9H20)
    Certificate: BVS 09 ATEX G 002 X
