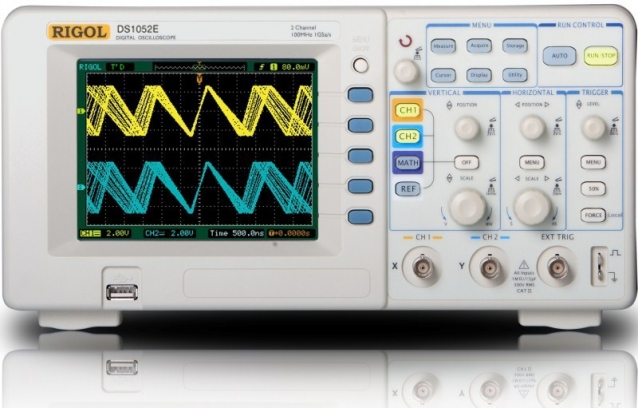

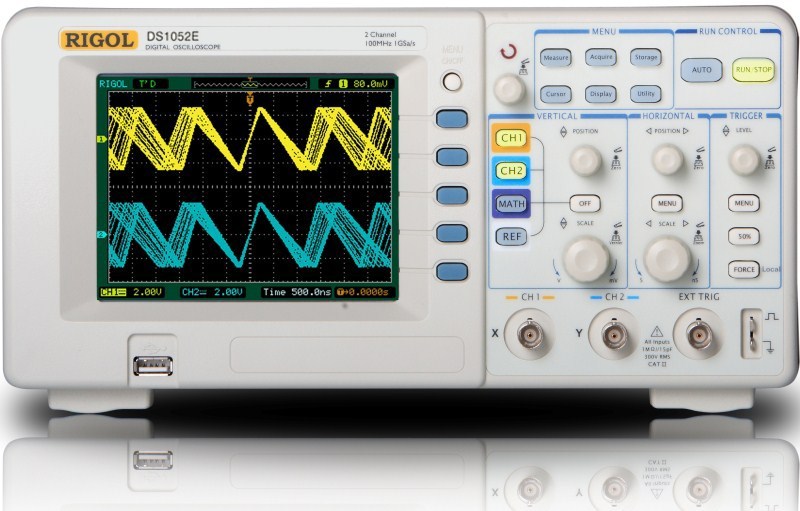

2 Analog channels plus external trigger
1 Million point deep memory
1 GSa/sec max sample rate
5.7"� TFT QVGA (320X240) with 64K color LCD backlit display
Trigger modes: edge, pulse width, slope, video, pattern, continuous time, and alternate

Model	DS1102E		DS1052E
Bandwidth	100 MHz		50 MHz
Analog Channels	2
Vertical Sensitivity	2 mV/div - 10V/div
Real-time Sample Rate	1 GSa/s�¼�each channel�¼��¼�500 MSa/s�¼�dual channels�¼�
Equivalent Sample Rate	25 GSa/s		10 GSa/s
Memory Depth	Mode	capture rate	common	long memory
	one channel	1 GSa/s	16 kpts	N/A
		500 MSa/s	16 kpts	1 Mpts
	dual channels	500 MSa/s 250 MSa/s or less	8 kpts 8 kpts	N.A. 512 kpts
Standard Interface	USB Host & Device, RS-232, P/F Out
Vertical Resolution	8 bits
Math	�¼�, �¼�, �-, FFT
Max Input Voltage	All inputs 1Ω"-15pF 300 V RMS CATâ��
Cursor Measurements	Manual, Track and Auto Measure modes

Accesorii standard

Standard Accessories

 Probe�-2 (1.5m), (1:1 or 10:1 adjustable) Passive Probes

 A Power Cord that fits the standard of destination country

 A Data Cable (DS1000D series)

 An Active Logic Head (DS1000D series)

 20 Logic Testing Nips (DS1000D series)

 20 Logic Testing leads (DS1000D series)

 A CD-ROM (including User"™s Guide and Application Software)

 A Quick Guide

Optiuni recomandate

Optional Accessories

 BNC Cable

 USB Data Cable

 RS232 Cable

 USB-GPIB Adapter

 DS1000E, DS1000D soft carrying case

Alte produse RIGOL

OSCILOSCOP DIGITAL RIGOL MSO2000A

• MSO2072A 2-Channel, 70MHz Bandwidth, 2GS/s Sample Rate, 14Mpts
• MSO2102A 2-Channel, 100MHz Bandwidth, 2GS/s Sample Rate, 14Mpts
• MSO2202A 2-Channel, 200MHz Bandwidth, 2GS/s Sample Rate, 14Mpts
• MSO2302A 2-Channel, 300MHz Bandwidth, 2GS/s Sample Rate, 14Mpts
•
• MSO2072A-S 2-Channel, 70MHz Bandwidth, 2GS/s Sample Rate, 14Mpts, Generator
• MSO2102A-S 2-Channel, 100MHz Bandwidth, 2GS/s Sample Rate, 14Mpts, Generator
• MSO2202A-S 2-Channel, 200MHz Bandwidth, 2GS/s Sample Rate, 14Mpts, Generator
• MSO2302A-S 2-Channel, 300MHz Bandwidth, 2GS/s Sample Rate, 14Mpts, Generator

OSCILOSCOP DIGITAL RIGOL MSO/DS7000

• MSO7054 (500 MHz, 10 GSa/s, 100 Mpts, 4+16 CH MSO)
• MSO7034 (350 MHz, 10 GSa/s, 100 Mpts, 4+16 CH MSO)
• MSO7024 (200 MHz, 10 GSa/s, 100 Mpts, 4+16 CH MSO)
• MSO7014 (100 MHz, 10 GSa/s, 100 Mpts, 4+16 CH MSO)
• DS7054 (500 MHz, 10 GSa/s, 100 Mpts, 4CH DS)
• DS7034 (350 MHz, 10 GSa/s, 100 Mpts, 4CH DS)
• DS7024 (200 MHz, 10 GSa/s, 100 Mpts, 4CH DS)
• DS7014 (100 MHz, 10 GSa/s, 100 Mpts, 4CH DS)

OSCILOSCOP DIGITAL RIGOL DS2000A

• DS2072A 2-Channel, 70MHz Bandwidth, 2GS/s Sample Rate, 14Mpts
• DS2102A 2-Channel, 100MHz Bandwidth, 2GS/s Sample Rate, 14Mpts
• DS2202A 2-Channel, 200MHz Bandwidth, 2GS/s Sample Rate, 14Mpts
• DS2302A 2-Channel, 300MHz Bandwidth, 2GS/s Sample Rate, 14Mpts
•
• DS2072A-S 2-Channel, 70MHz Bandwidth, 2GS/s Sample Rate, 14Mpts, Generator
• DS2102A-S 2-Channel, 100MHz Bandwidth, 2GS/s Sample Rate, 14Mpts, Generator
• DS2202A-S 2-Channel, 200MHz Bandwidth, 2GS/s Sample Rate, 14Mpts, Generator
• DS2302A-S 2-Channel, 300MHz Bandwidth, 2GS/s Sample Rate, 14Mpts, Generator

RIGOL DP831 DP831A SURSA TRIPLA REGLABILA

• DP832A/ DP832: 3 outputs, 30V/3A || 30V/3A, 5V/3A, 195W
• DP831A/ DP831: 3 outputs, 8V/5A || 30V/2A, -30V/2A, 160W
• DP821A/ DP821: 2 outputs, 60V/1A || 8V/10A, 140W
• DP811A/ DP811: 1 output, 20V/10A or 40V/5A, 200W

RIGOL DP811 DP811A SURSA DE LABORATOR REGLABILA PROGRAMABILA

• DP832A / DP832: 3 outputs, 30V/3A || 30V/3A, 5V/3A, 195W
• DP831A / DP831: 3 outputs, 8V/5A || 30V/2A, -30V/2A, 160W
• DP821A / DP821: 2 outputs, 60V/1A || 8V/10A, 140W
• DP811A / DP811: 1 output, 20V/10A or 40V/5A, 200W

RIGOL DSA705 ANALIZOR DE SPECTRU 500MHZ

• DSA705 100 kHz to 500MHz Spectrum Analyzer
• DSA710 100 kHz to 1 GHz Spectrum Analyzer
• Complete Connectivity: LAN (LXI), USB Host & Device, GPIB (Opt.)
• 8 Inch WVGA (800�480) Display

RIGOL DSG830 GENERATOR SEMNAL RF 3GHZ

• DSG815 9 kHZ to 1,5 GHz
• DSG830 9 kHZ to 3 GHz

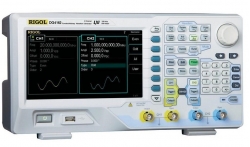

RIGOL DG4162 GENERATOR DE FUNCTII 160MHZ 2-CANALE
