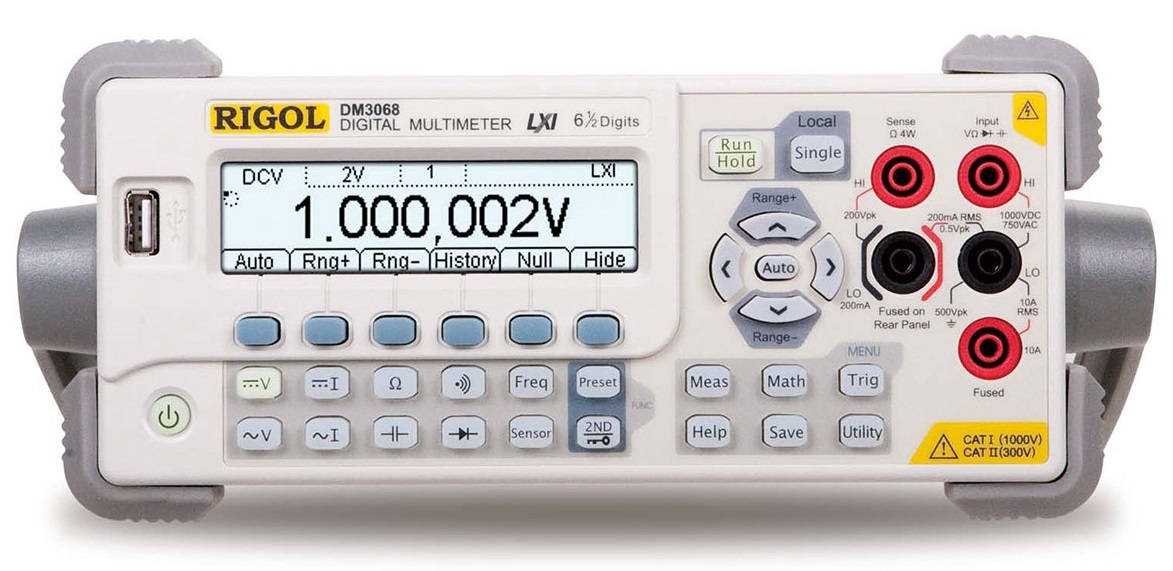

The DM3000 Series DMMs give reliable, cost effective, full DMM capabilities measuring DCV, ACV, DCI, ACI, Resistance (2 & 4 Wire), Capacitance, Diode Test, Frequency, and Temperature. These DMMs are designed for simple and efficient bench top use, but include software options for datalogging and remote programming from almost any interface. The DM3000 can fit any DMM application with speed, accuracy, reliability, and efficiency well beyond its price.

Model		DM3058	DM3068
Measurement Function	Range	Accuracy: 1 Year ± (%of reading +%of range)	Accuracy: 1 Year ± (%of reading +%of range)
DC Voltage	200 mV - 1000 V	0.015 + 0.003	0.0035+0.0005
DC Current	200 uA - 10 A	0.055+0.005	0.050+0.005
AC Voltage (RMS)	200 mV - 750 V	0.20 + 0.05	0.06+0.03
AC Current (RMS)	20 mA - 10 A	0.30+0.10	0.10+0.04
Resistance(2-wire and 4-wire)	200 O - 100 MO	0.020 + 0.003	0.010+0.001
Capacitance	2 nF - 10000 uF	1 + 0.5	1 + 0.5
Diode	2.4V	0.05 + 0.01
Continuity	2 kO	0.05 + 0.01
Frequency and Period	200 mV - 750 V	0.01+0.003	0.007

Alte produse RIGOL

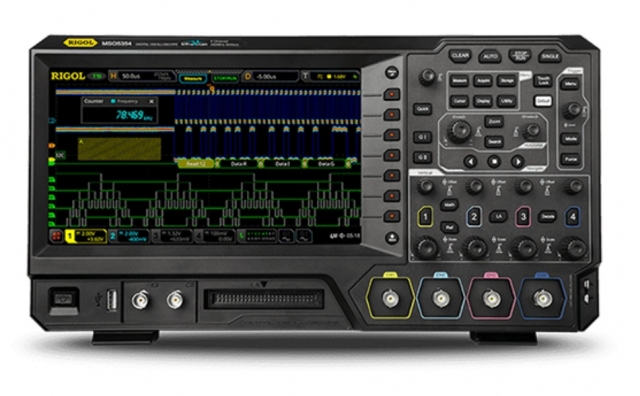

OSCILOSCOP DIGITAL RIGOL MSO5000

• MSO5354 (350 MHz, 8 GSa/s, 100 Mpts, 4+16 CH MSO)
• MSO5204 (200 MHz, 8 GSa/s, 100 Mpts, 4+16 CH MSO)
• MSO5104 (100 MHz, 8 GSa/s, 100 Mpts, 4+16 CH MSO)
• MSO5102 (100 MHz, 8 GSa/s, 100 Mpts, 2+16 CH MSO)
• MSO5074 (70 MHz, 8 GSa/s, 100 Mpts, 4+16 CH MSO)
• MSO5072 (70 MHz, 8 GSa/s, 100 Mpts, 2+16 CH MSO)

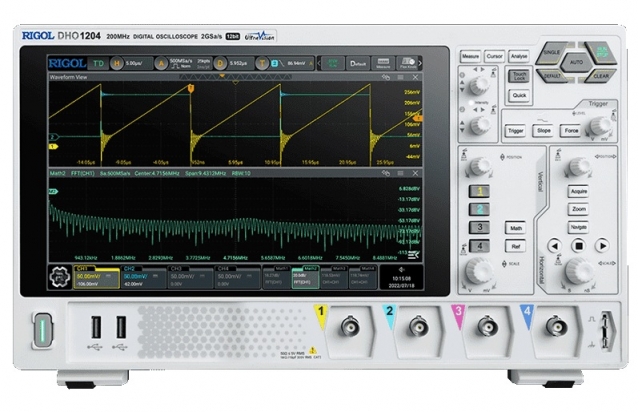

OSCILOSCOP 12-BIT RIGOL DHO1000

• DHO1072 70 MHz, 2 GSa/s, 50 Mpts, 2CH 12-bit
• DHO1074 70 MHz, 2 GSa/s, 50 Mpts, 4CH 12-bit
• DHO1102 100 MHz, 2 GSa/s, 50 Mpts, 2CH 12-bit
• DHO1104 100 MHz, 2 GSa/s, 50 Mpts, 4CH 12-bit
• DHO1202 200 MHz, 2 GSa/s, 50 Mpts, 2CH 12-bit
• DHO1204 200 MHz, 2 GSa/s, 50 Mpts, 4CH 12-bit

RIGOL DG5071 DG5072 GENERATOR SEMNALE ARBITRARE 70MHZ

• DG5352 350 MHz, 2 ch, 14 bit
• DG5351 350 MHz, 1 ch, 14 bit
• DG5252 250 MHz, 2 ch, 14 bit
• DG5251 250 MHz, 1 ch, 14 bit
• DG5102 100 MHz, 2 ch, 14 bit
• DG5101 100 MHz, 1 ch, 14 bit
• DG5072 70 MHz, 2 ch, 14 bit
• DG5071 70 Mhz, 1 ch, 14 bit

OSCILOSCOP DIGITAL 4 CANALE RIGOL DS1000Z

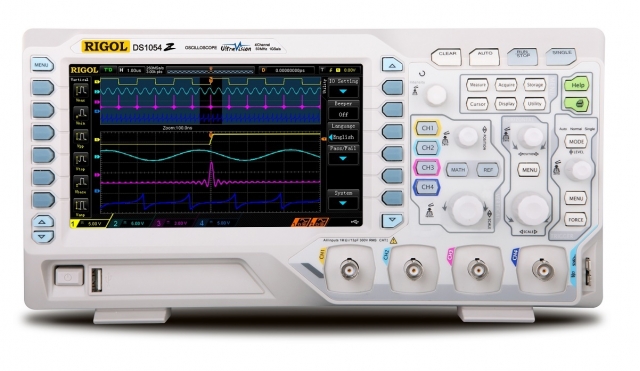

• DS1054Z 4-Channel, 50MHz Bandwidth, 1GS/s Sample Rate, 12Mpts

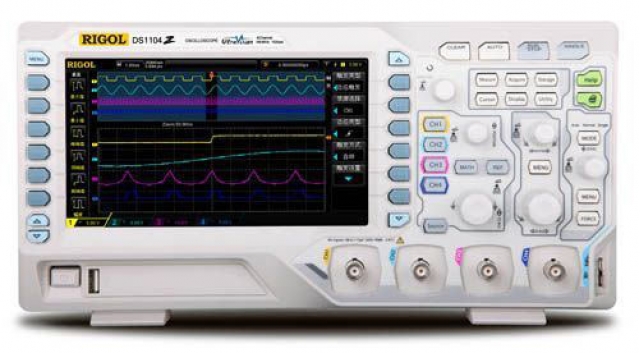

• DS1074Z 4-Channel, 70MHz Bandwidth, 1GS/s Sample Rate, 12Mpts
• DS1104Z 4-Channel, 100MHz Bandwidth, 1GS/s Sample Rate, 12Mpts
• DS1074Z-S 4-Channel, 70MHz Bandwidth, 1GS/s Sample Rate, 12Mpts, Generator
• DS1104Z-S 4-Channel, 100MHz Bandwidth, 1GS/s Sample Rate, 12Mpts, Generator

RIGOL DSG3030 GENERATOR SEMNAL RF 3GHZ

• DSG3030 9 kHZ to 3 GHz
• DSG3060 9 kHZ to 6 GHz

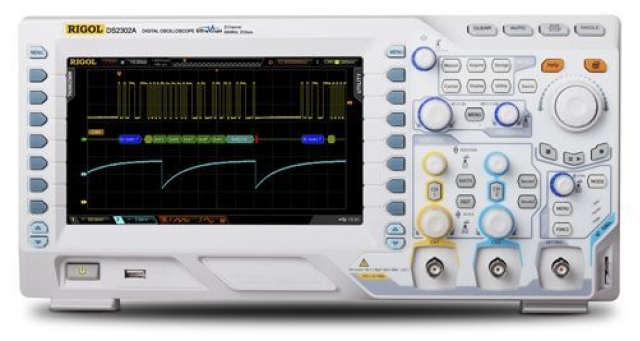

OSCILOSCOP DIGITAL RIGOL DS2000A

• DS2072A 2-Channel, 70MHz Bandwidth, 2GS/s Sample Rate, 14Mpts
• DS2102A 2-Channel, 100MHz Bandwidth, 2GS/s Sample Rate, 14Mpts
• DS2202A 2-Channel, 200MHz Bandwidth, 2GS/s Sample Rate, 14Mpts
• DS2302A 2-Channel, 300MHz Bandwidth, 2GS/s Sample Rate, 14Mpts
•
• DS2072A-S 2-Channel, 70MHz Bandwidth, 2GS/s Sample Rate, 14Mpts, Generator
• DS2102A-S 2-Channel, 100MHz Bandwidth, 2GS/s Sample Rate, 14Mpts, Generator
• DS2202A-S 2-Channel, 200MHz Bandwidth, 2GS/s Sample Rate, 14Mpts, Generator
• DS2302A-S 2-Channel, 300MHz Bandwidth, 2GS/s Sample Rate, 14Mpts, Generator

RIGOL DSA815 ANALIZOR DE SPECTRU 1.5GHZ

• DSA815 9 kHz to 1.5 GHz
• DSA832 9 kHz to 3.2 GHz
• DSA875 9 kHz to 7.5 GHz
• DSA815-TG 9 kHz to 1.5 GHz, incl. Tracking Generator
• DSA832-TG 9 kHZ to 3.2 GHz, incl. Tracking Generator
• DSA875-TG 9 kHz to 7.5 GHz, incl. Tracking Generator

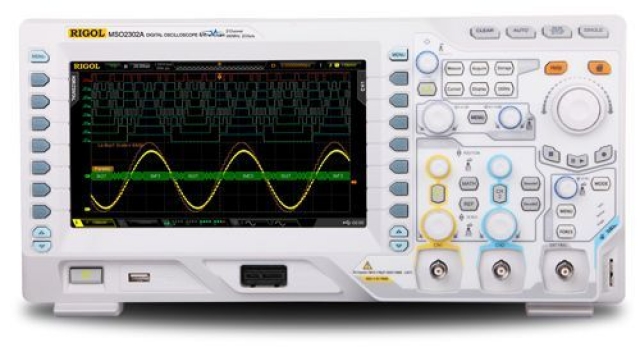

OSCILOSCOP DIGITAL RIGOL MSO2000A
