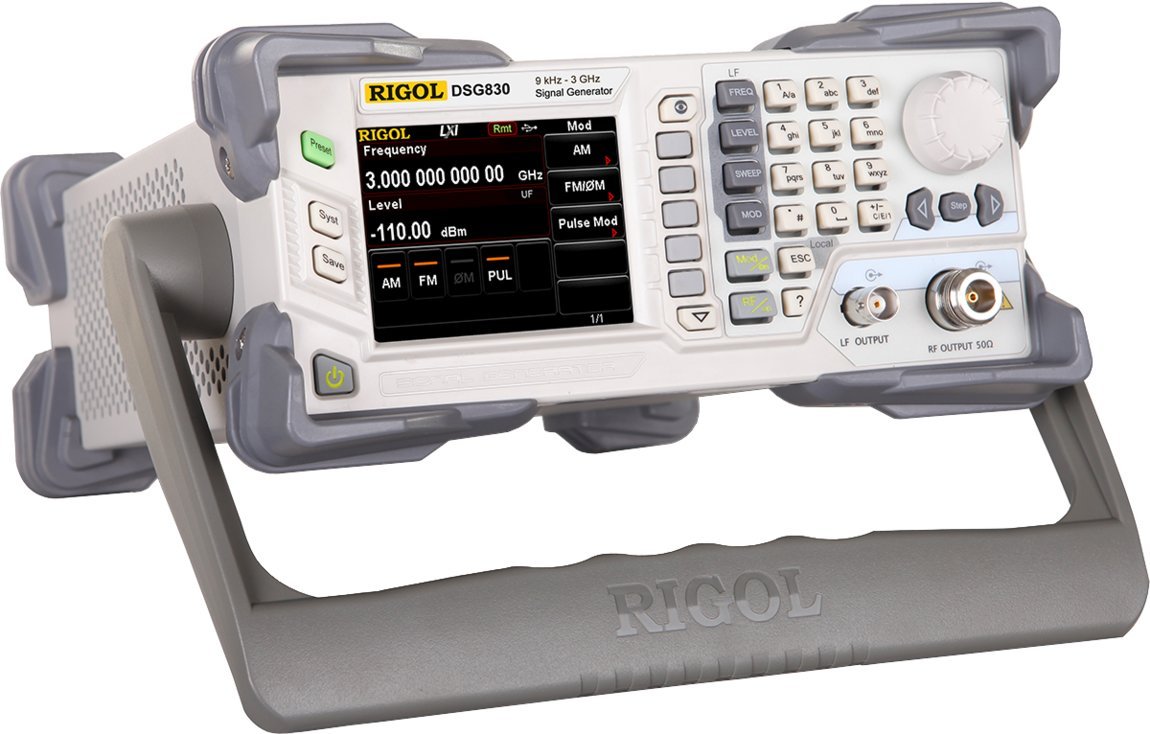

The DSG800 series covers output frequencies from 9 kHz to 3.0GHz. The instruments provide maximum output power up to +20 dBm and low SSB phase noise -115 dBc/Hz, amplitude accuracy of +/- 0.5 dB, and frequency resolution 0.01 Hz at any frequency. An oven-controlled crystal oscillator time-base option provides < 5 ppb temperature stability and < 30 ppb/year aging stability, the most accurate and stable available in this class. For IoT and RF applications from design to debug the DSG800 series provides uncompromised RF signal generation capabilities at an unprecedented value

Model	DSG815	DSG830
Max. Frequency	1.5 GHz	3 GHz
Phase Noise (typical)	<-105dBc/Hz@20kHz
Amplitude Accuracy +13 dBm to -60 dBm (typical)	<0.5dB
Connectivity	LXI-C, USB
Modulation	AM, FM, Phase (std.), Pulse (opt.)
Pulse Train Generator	Optional
High Stability Clock	Optional
