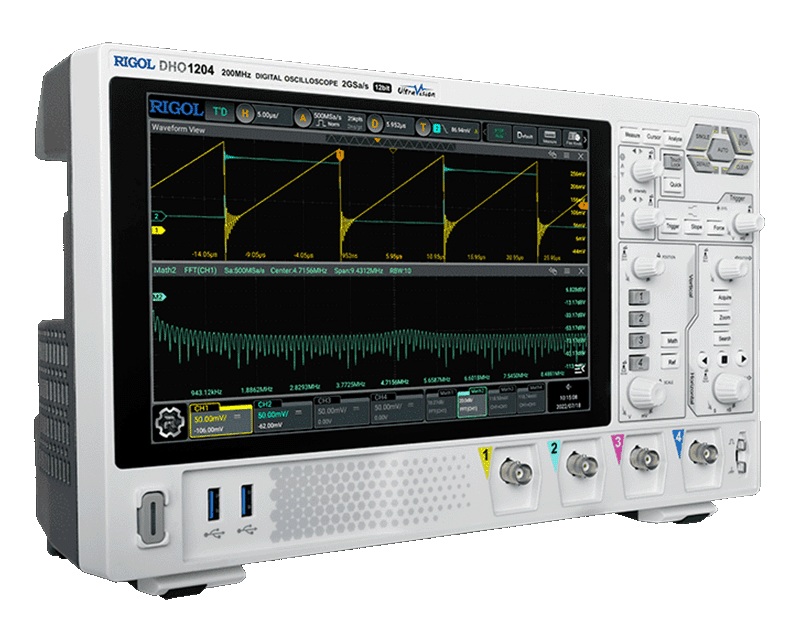

Osciloscop 12-bit RIGOL DHO1000

Cod: RIGOL DHO1204 DHO1202 DHO1104 DHO1102 DHO1074 DHO1072



Brosura produs PDF, 9.17 Mb


Descriere

DHO1072 70 MHz, 2 GSa/s, 50 Mpts, 2CH 12-bit

DHO1074 70 MHz, 2 GSa/s, 50 Mpts, 4CH 12-bit

DHO1102 100 MHz, 2 GSa/s, 50 Mpts, 2CH 12-bit

DHO1104 100 MHz, 2 GSa/s, 50 Mpts, 4CH 12-bit

DHO1202 200 MHz, 2 GSa/s, 50 Mpts, 2CH 12-bit

DHO1204 200 MHz, 2 GSa/s, 50 Mpts, 4CH 12-bit



Product Features

"¢ Built on RIGOL's "Centaurus" technical platform

"¢ Ultra-low noise floor for pure signals, measuring low level signals accurately

"¢ 12-bit vertical resolution[1]

"¢ 70/100/200 MHz analog bandwidth (selectable), 2/4 analog channels, and 1 EXT channel

"¢ Up to 2 GSa/s real-time sample rate

"¢ Max. memory depth: 100 Mpts (optional)

"¢ Vertical sensitivity range: 500 μV/div to 10 V/div

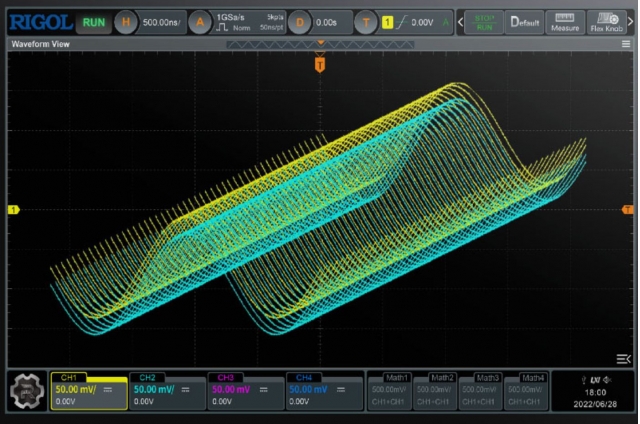

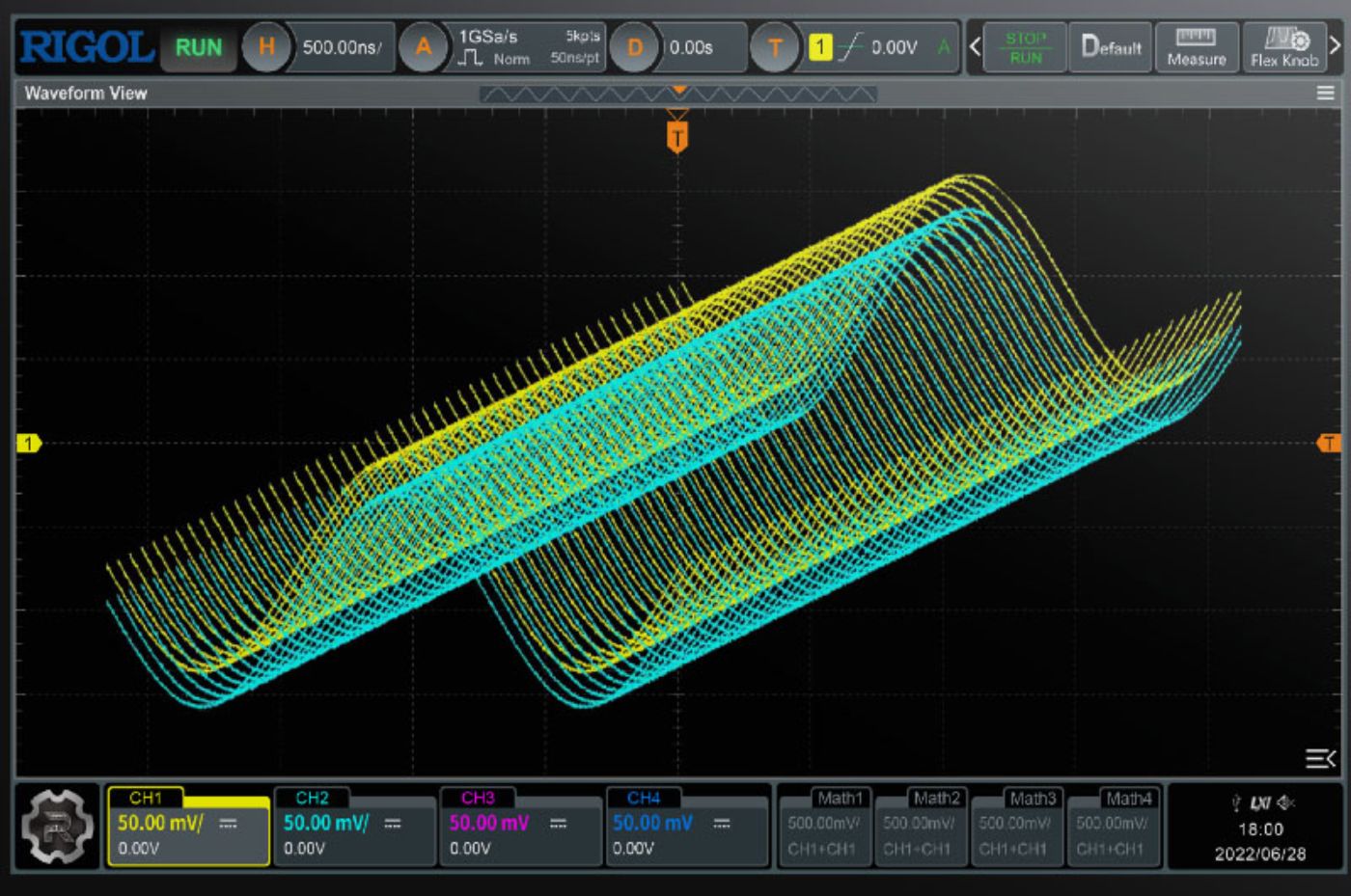

"¢ Up to 1,500,000 wfms/s waveform capture rate in UltraAcquire mode

"¢ 10.1'' 1280x800 HD touch display

"¢ User-friendly Flex Knobs, bringing smoother interaction

"¢ Standard photoelectric encoder operating knobs, effectively prolonging its service life

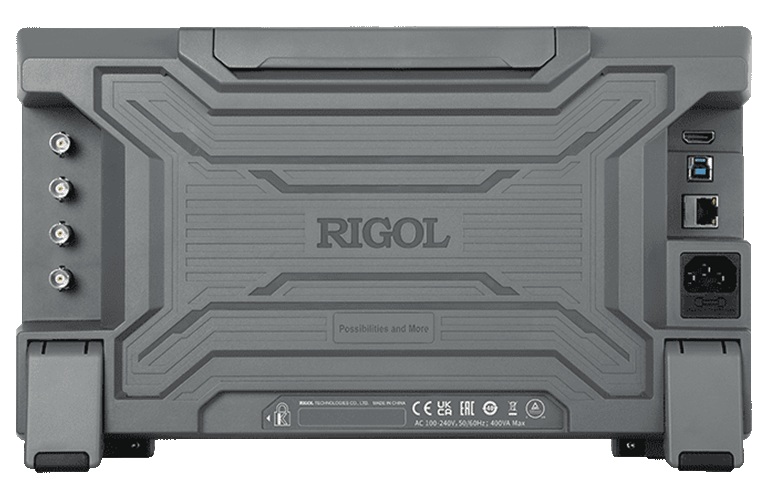

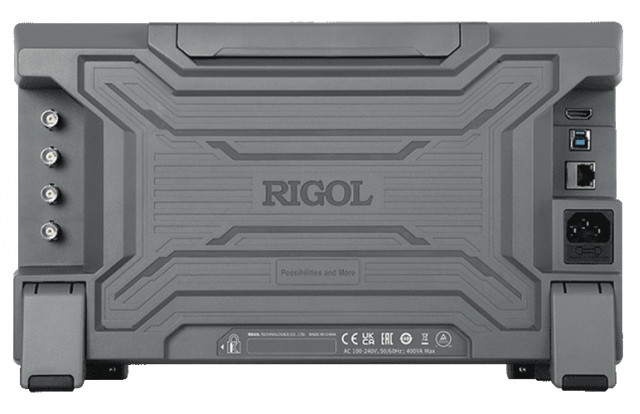

"¢ Standard USB Device & Host, LAN, and HDMI interfaces





The DHO1000 series digital oscilloscope is designed to meet the designing, debugging, and testing requirements of the mainstream oscilloscope market. Built on RIGOL's "Centaurus" technical platform, this series delivers a fast waveform capture rate of 1,500,000 wfms/s in UltraAcquire mode, 100 Mpts memory depth, 12-bit vertical resolution, excellent noise floor performance and vertical accuracy to meet your requirements for more accurate measurements, bringing extraordinary T&M experience for you.





Accesorii standard

Standard Accessories

Power Cord Conforming to the Standard of the Destination Country "" ""

USB Cable "" ""

4 Passive HighZ Probes (350 MHz, Standard for DHO1204), 2

Passive HighZ Probes (350 MHz, Standard for DHO1202) PVP2350

4 Passive HighZ Probes (150 MHz, Standard for DHO1104/

DHO1074) PVP3150

2 Passive HighZ Probes (150 MHz, Standard for DHO1102/

DHO1072) PVP3150



Optiuni recomandate

Bandwidth Upgrade Option

70 MHz to 100 MHz Upgrade Option DHO1000-BWU7T10

70 MHz to 200 MHz Upgrade Option DHO1000-BWU7T20

100 MHz to 200 MHz Upgrade Option DHO1000-BWU10T20

Memory Depth Upgrade Option

100 Mpts Memory Depth Upgrade Option DHO1000-RLU-01




Current probe



RP1004C 100MHz,30A

RP1000P 4CHPower Adapter

RP1005C 10MHz,150A

RP1006C 2MHz，500A

RP1003C 50MHz,30A





High-voltage differential probe

PHA0150 High voltage differential probe，DC-70MHz，1500V

RP1050D High Voltage Differential Probe，50MHz，3.5KV

RP1100D High Voltage Differential Probe，100MHz，3.5KV

RP1025D High Voltage Differential Probe,25MHz,700V

PHA1150 High voltage differential probe，DC-100MHz，1500V

PHA2150 200MHz, 1500V High Voltage Differential Probe
