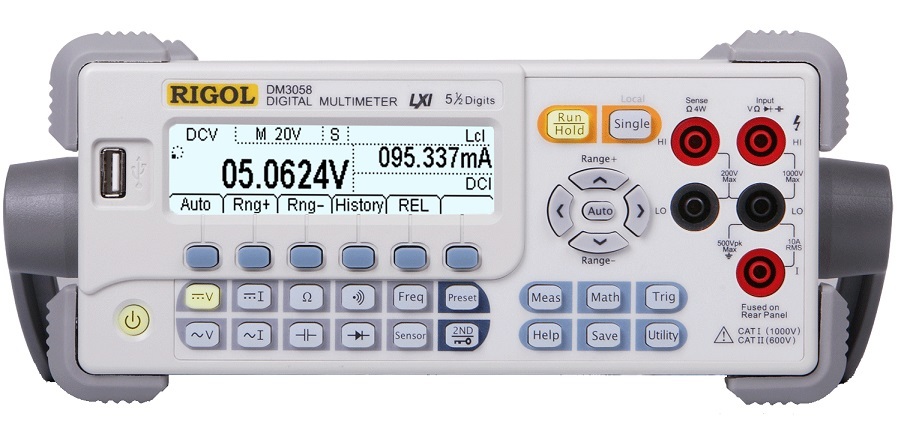

The DM3000 Series DMMs give reliable, cost effective, full DMM capabilities measuring DCV, ACV, DCI, ACI, Resistance (2 & 4 Wire), Capacitance, Diode Test, Frequency, and Temperature. These DMMs are designed for simple and efficient bench top use, but include software options for datalogging and remote programming from almost any interface. The DM3000 can fit any DMM application with speed, accuracy, reliability, and efficiency well beyond its price.

Model		DM3058	DM3068
Measurement Function	Range	Accuracy: 1 Year ± (%of reading +%of range)	Accuracy: 1 Year ± (%of reading +%of range)
DC Voltage	200 mV - 1000 V	0.015 + 0.003	0.0035+0.0005
DC Current	200 uA - 10 A	0.055+0.005	0.050+0.005
AC Voltage (RMS)	200 mV - 750 V	0.20 + 0.05	0.06+0.03
AC Current (RMS)	20 mA - 10 A	0.30+0.10	0.10+0.04
Resistance(2-wire and 4-wire)	200 O - 100 MO	0.020 + 0.003	0.010+0.001
Capacitance	2 nF - 10000 uF	1 + 0.5	1 + 0.5
Diode	2.4V	0.05 + 0.01
Continuity	2 kO	0.05 + 0.01
Frequency and Period	200 mV - 750 V	0.01+0.003	0.007

Alte produse RIGOL

RIGOL DP811 DP811A SURSA DE LABORATOR REGLABILA PROGRAMABILA

• DP832A / DP832: 3 outputs, 30V/3A || 30V/3A, 5V/3A, 195W
• DP831A / DP831: 3 outputs, 8V/5A || 30V/2A, -30V/2A, 160W
• DP821A / DP821: 2 outputs, 60V/1A || 8V/10A, 140W
• DP811A / DP811: 1 output, 20V/10A or 40V/5A, 200W

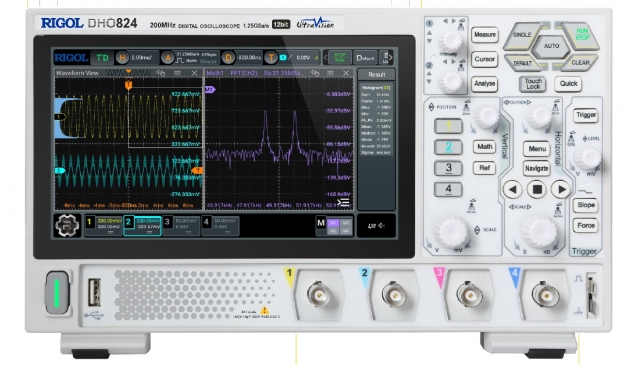

OSCILOSCOP 12-BIT RIGOL DHO800

• DHO814 100 MHz, 1.25 GSa/s, 25 Mpts, 4CH 12-bit
• DHO812 100 MHz, 1.25 GSa/s, 25 Mpts, 2CH 12-bit
• DHO804 70 MHz, 1.25 GSa/s, 25 Mpts, 4CH 12-bit
• DHO802 70 MHz, 1.25 GSa/s, 25 Mpts, 2CH 12-bit

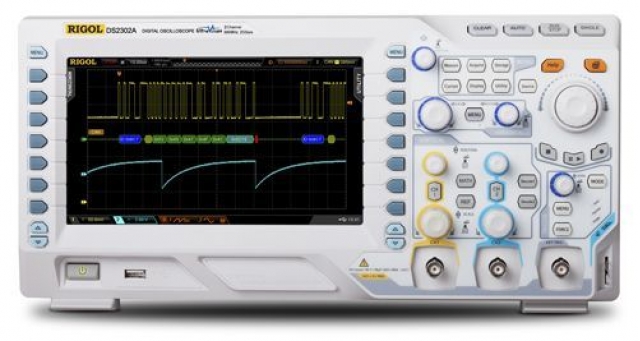

OSCILOSCOP DIGITAL RIGOL DS2000A
