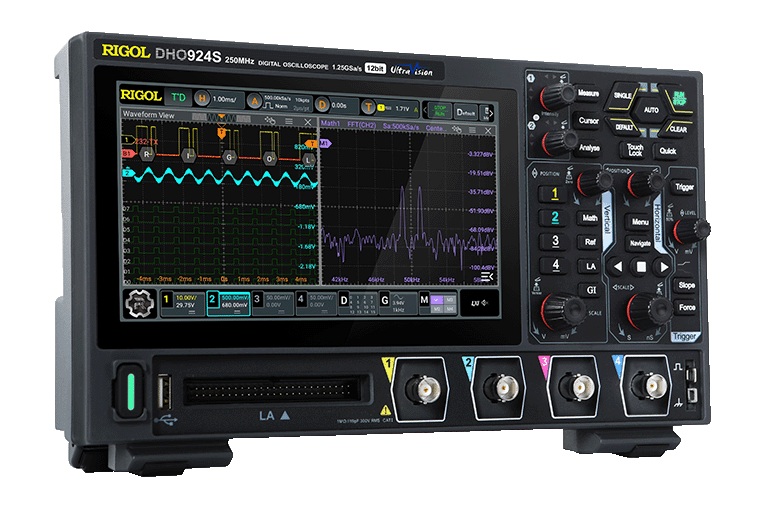

The DHO900 series digital oscilloscope is a highly portable and high-resolution digital oscilloscope based on RIGOL's "Centaurus" technology platform.

Product Features

"� Ultra-low noise floor, purer signal, never miss the small signals

"� Up to 12 bits resolution for all the models of this series

"� Max. analog bandwidth of 250 MHz, 4 analog channels

"� 16 digital channels (std.), logic probe required to be purchased if needed

"� Max. real-time sample rate of 1.25 GSa/s

"� Max. memory depth of 50 Mpts

"� Vertical sensitivity range: 200 Î¼V/div to 10 V/div

"� Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode)

"� Digital phosphor display with real-time 256-level intensity grading

"� Integrates the AFG function, bode plot analysis, histogram, digital signal analysis, and etc

"� Waveform search and navigation function allows you to debug the signal anomalies faster

"� 7" (1024x600) capacitive multi-touch screen

"� Brand new Flex Knob brings user-friendly experience

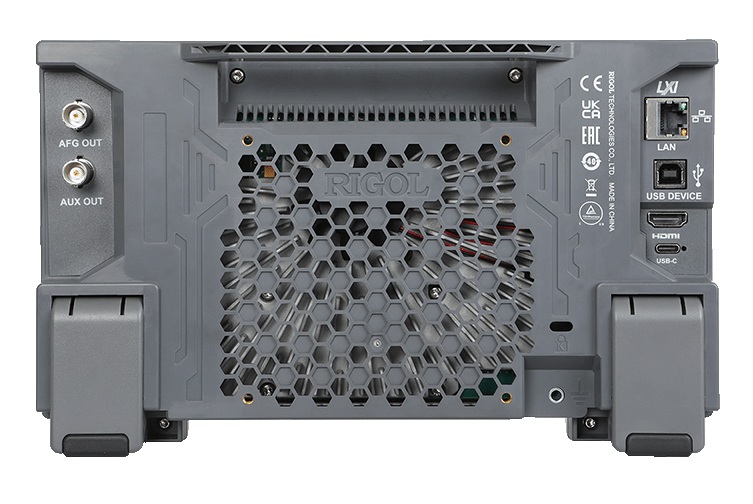

"� USB Device & Host, LAN, and HDMI interfaces (std.) for all the models of this series

"� Novel and delicate industrial design, easy to operate

"� Unique online upgrade

The DHO900 series is RIGOL's new launched high-performance economical digital oscilloscope.

Though compact in design, it has superior performance. It features a capture rate up to 1,000,000 wfms/s (in UltraAcquire Mode), 50 Mpts memory depth, 12 bits resolution, and low noise.

The DHO900 series supports 16 digital channels. One instrument can make an analysis on both the analog and digital signals to meet the embedded design and test scenarios. With an affordable price equivalent to purchasing an entry-level instrument, you can access the auto serial and parallel bus analysis, bode plot analysis, and other functions to meet the test demands in the R&D, education, and scientific research fields.

Accesorii standard

Standard Accessories

Power Adaptor Conforming to the Standard of the Destination Country "" ""

Banana-Plug Ground Connecting Cable "" ""

DHO924/DHO924S: Passive Probe x4 (350 MHz) PVP2350

DHO914/DHO914S: Passive Probe x4 (150 MHz) PVP3150

Recommended Accessories

16-channel Logic Analyzer Probe PLA2216

Optiuni recomandate

Passive probe

RP1300H 300MHzHigh voltage probe(2kV)

RP1018H 18kV 150MHzHigh voltage probe

Logic analyzer probe

PLA2216 16-channel logic analyzer probe

Current probe

RP1004C 100MHz,30A

RP1000P 4CHPower Adapter

RP1005C 10MHz,150A

RP1006C 2MHz�¼�500A

RP1003C 50MHz,30A

High-voltage differential probe

PHA0150 High voltage differential probe�¼�DC-70MHz�¼�1500V

RP1050D High Voltage Differential Probe�¼�50MHz�¼�3.5KV

RP1100D High Voltage Differential Probe�¼�100MHz�¼�3.5KV

RP1025D High Voltage Differential Probe,25MHz,700V

PHA1150 High voltage differential probe�¼�DC-100MHz�¼�1500V

PHA2150 200MHz, 1500V High Voltage Differential Probe
