DS1000Z-E series digital oscilloscope is designed by RIGOL based on the mainstream demand. It is a high-performance and economic digital oscilloscope specially contributed by e-commerce.

Analog channel bandwidth: 200 MHz (DS1202Z-E): 100 MHz (DS1102Z-E)

2 analog channels

Real-time sample rate up to 1 GSa/s

Memory depth up to 24 Mpts(Std.)

Up to 30,000 wfms/s waveform capture rate

Up to 60,000 frames hardware real-time waveform recording and

playback functions

Innovative "UltraVision" technology

Various trigger and bus decoding functions

Low noise floor, vertical scale range: 1 mV/div to 10 V/div

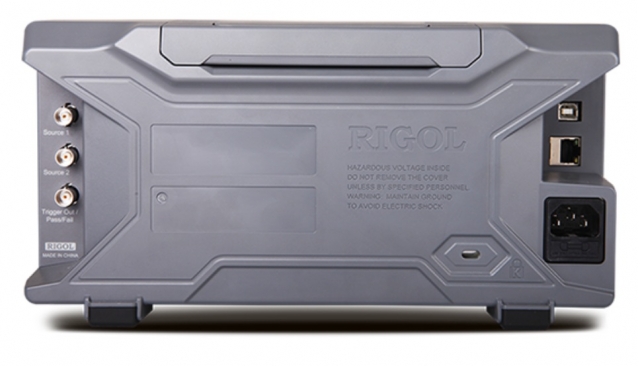

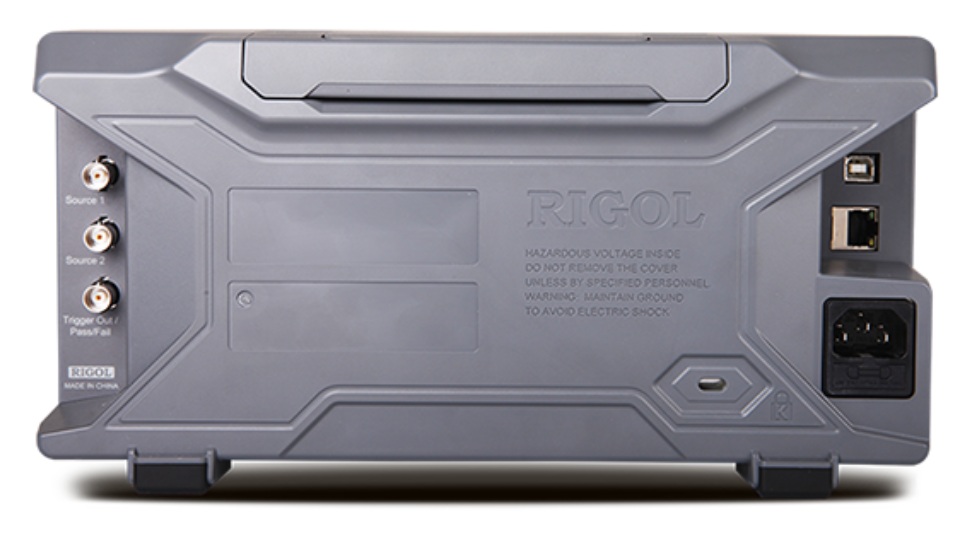

Various interfaces: USB Host&Device, LAN (LXI), AUX

Novel and delicate industrial design, easy to use

7-inch WVGA (800x480) TFT LCD, intensity graded color display

DS1000Z-E series is a high-performance and economic digital oscilloscope designed for the designing, debugging and educational requirements of the mainstream digital oscilloscope market. This manual takes DS1202Z-E as an example to introduce DS1000Z-E series.

Accesorii standard

Power cord conforming to the standard of the destination country

USB cable CB-USBA-USBBFF-150

PVP2350 2 passive probes (350 MHz PVP2350, only available for DS1202Z-E)

PVP3150 2 passive probes (150 MHz PVP3150, only available for DS1102Z-E)

Optiuni recomandate

Accessory Rack mount kit RM-DS1000Z

Passive probe

RP1300H 300MHzHigh voltage probe(2kV)

RP1018H 18kV 150MHzHigh voltage probe

Logic analyzer probe

PLA2216 16-channel logic analyzer probe

Current probe

RP1004C 100MHz,30A

RP1000P 4CHPower Adapter

RP1005C 10MHz,150A

RP1006C 2MHz�¼�500A

RP1003C 50MHz,30A

High-voltage differential probe

PHA0150 High voltage differential probe�¼�DC-70MHz�¼�1500V

RP1050D High Voltage Differential Probe�¼�50MHz�¼�3.5KV

RP1100D High Voltage Differential Probe�¼�100MHz�¼�3.5KV

RP1025D High Voltage Differential Probe,25MHz,700V

PHA1150 High voltage differential probe�¼�DC-100MHz�¼�1500V

PHA2150 200MHz, 1500V High Voltage Differential Probe
