Tester DTT aliniere antene receptie TV Digital Terestru DVB-T Promax TVHUNTER
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Promax TVHUNTER



Brosura produs PDF, 0.32 Mb


Descriere

The consolidation of the Digital Terrestrial Television and the approaching to the date scheduled for the "analogue switch-off" have increased the demand for adapting analogue installations to the digital terrestrial format.

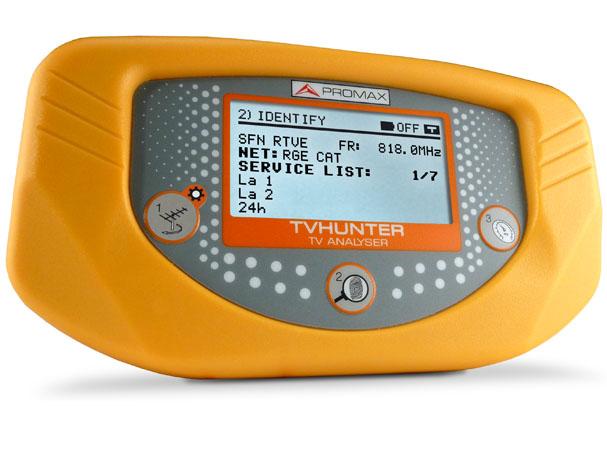

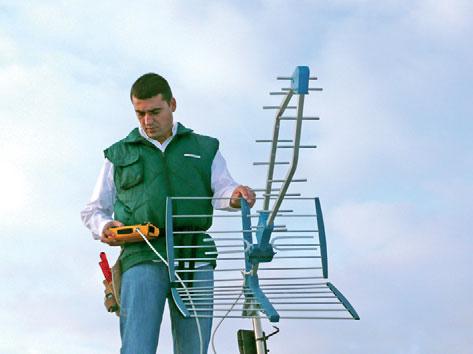

The TVHUNTER is a DTT finder that allows a fast terrestrial antennas alignment, and it carries all the required measurements to ensure an optimal reception: MER, CBER, VBER, etc.

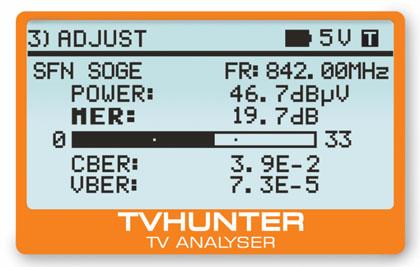

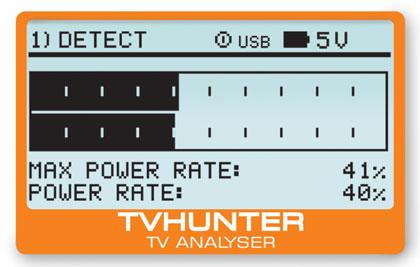

The TVHUNTER guides the user through three steps: Detection of the transmitter, identification of the multiplex signal and fine-tuning adjustment in order to obtain the best quality signal.

The TVHUNTER has been specially designed to stand rough working conditions. It includes a back-light display and offers a long battery life.

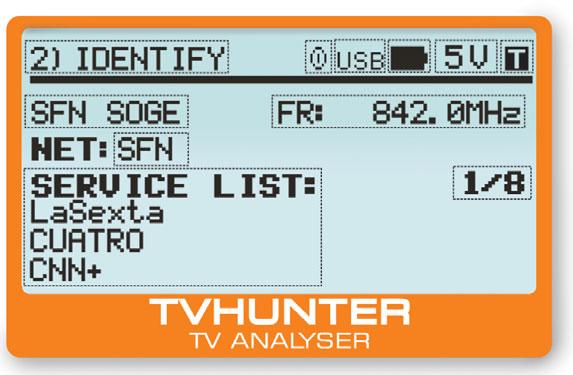

Additional to the measurements the meter can also display the SERVICE LIST corresponding to all the programmes in the transport stream which can be audio, video or data in MPEG-2, MPEG-4 formats and can correspond to free to air or encrypted programmes in standard definition (SDTV) or high definition (HDTV) (DVB-T only).





FREQUENCY RANGE

474 to 858 MHz (UHF)

TEST POINTS

16 maximum

RF INPUT

Universal, interchangeable adapter

DVB-T MEASUREMENTS

Channel power, MER, CBER, VBER

ACCESSORIES

AC adapter, car lighter adapter,
F-BNC/DIN/F adapters, mains cord,
USB 2.0 cable, carrying suitcase,
carrying belt, case (optional),
CD-ROM, user manuals
