Detector semnal receptie satelit DVB-S/ S2/ DSS Satfinder Promax SATHUNTER
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Promax SATHUNTER




Brosura produs PDF, 0.45 Mb


Descriere

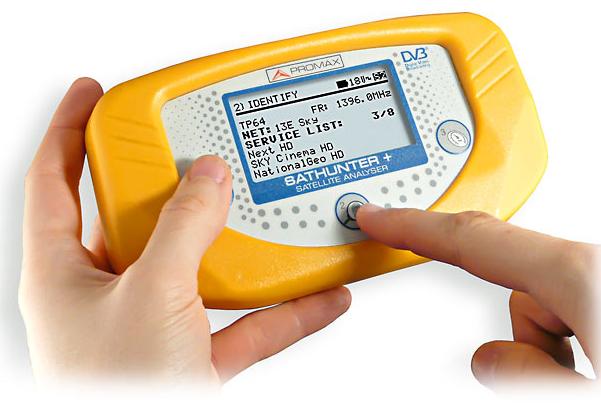

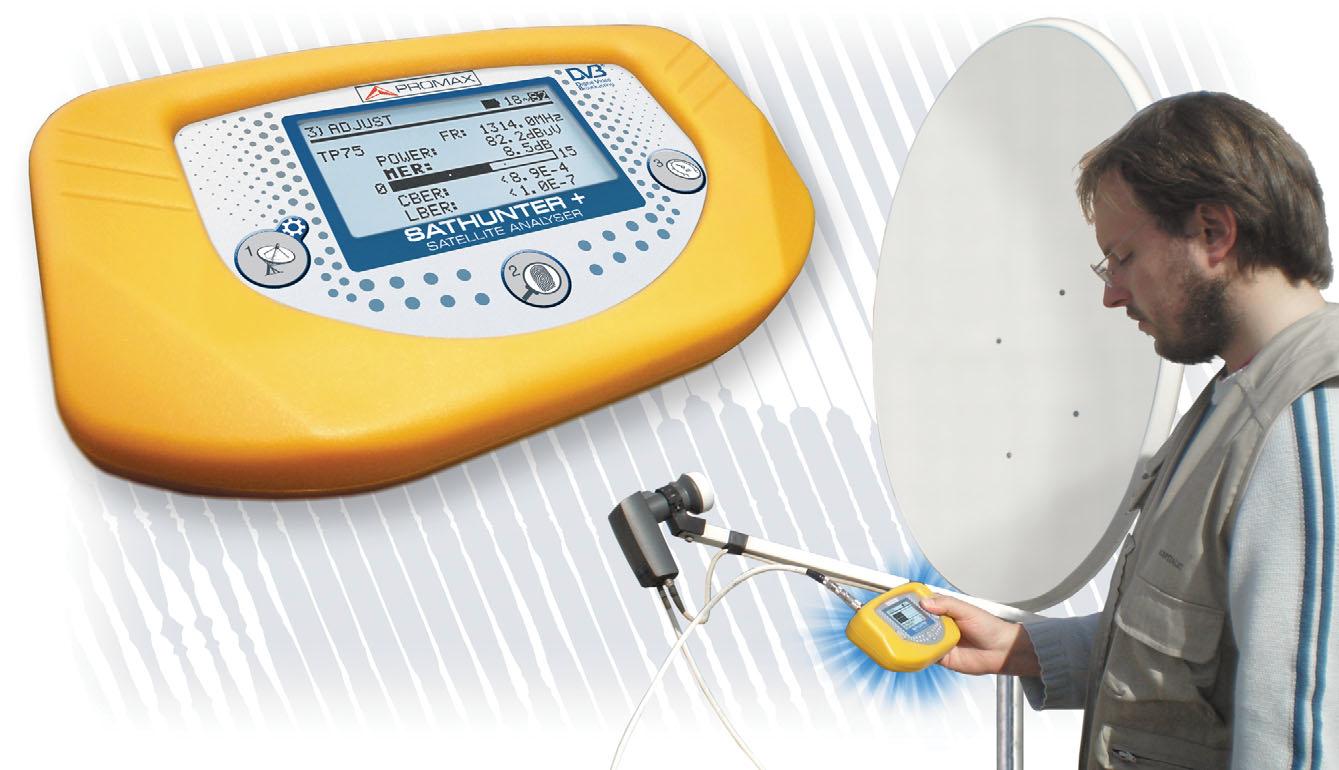

The SATHUNTER+ is an instrument designed for the installation of Direct To Home (DVB-S/S2 and DSS) satellite reception systems. It is fully automatic and very easy to use. Just turn the dish and the instrument will show up the identification of the selected satellite when it is detected. The instrument is actually reading the information transmitted by the satellite and displays its orbital position and the service list.





3-STEP PROCESS

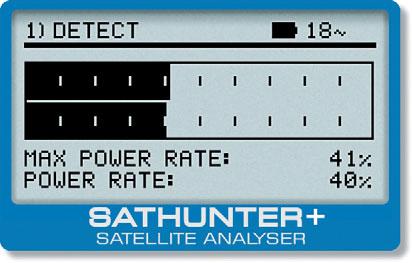

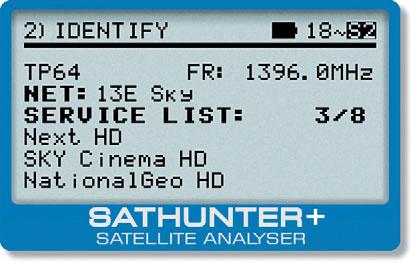

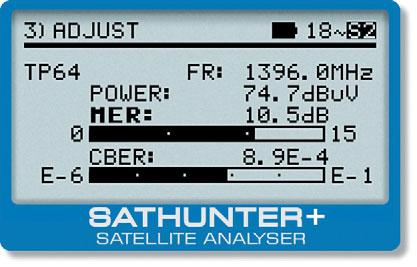

Satellite detection, identification, fine adjust

SATELLITES

50 maximum

SYMBOL RATE (DVB-S)

2 to 45 Mbauds

SYMBOL RATE (DVB-S2)
  QPSK
  8PSK


From 2 to 45 Mbauds
From 2 to 45 Mbauds

SYMBOL RATE (DSS)

22 Mbauds

BATTERIES

Long life Li-Ion batteries

CONFIGURATION

Includes CD-ROM and USB cable to modify configuration
